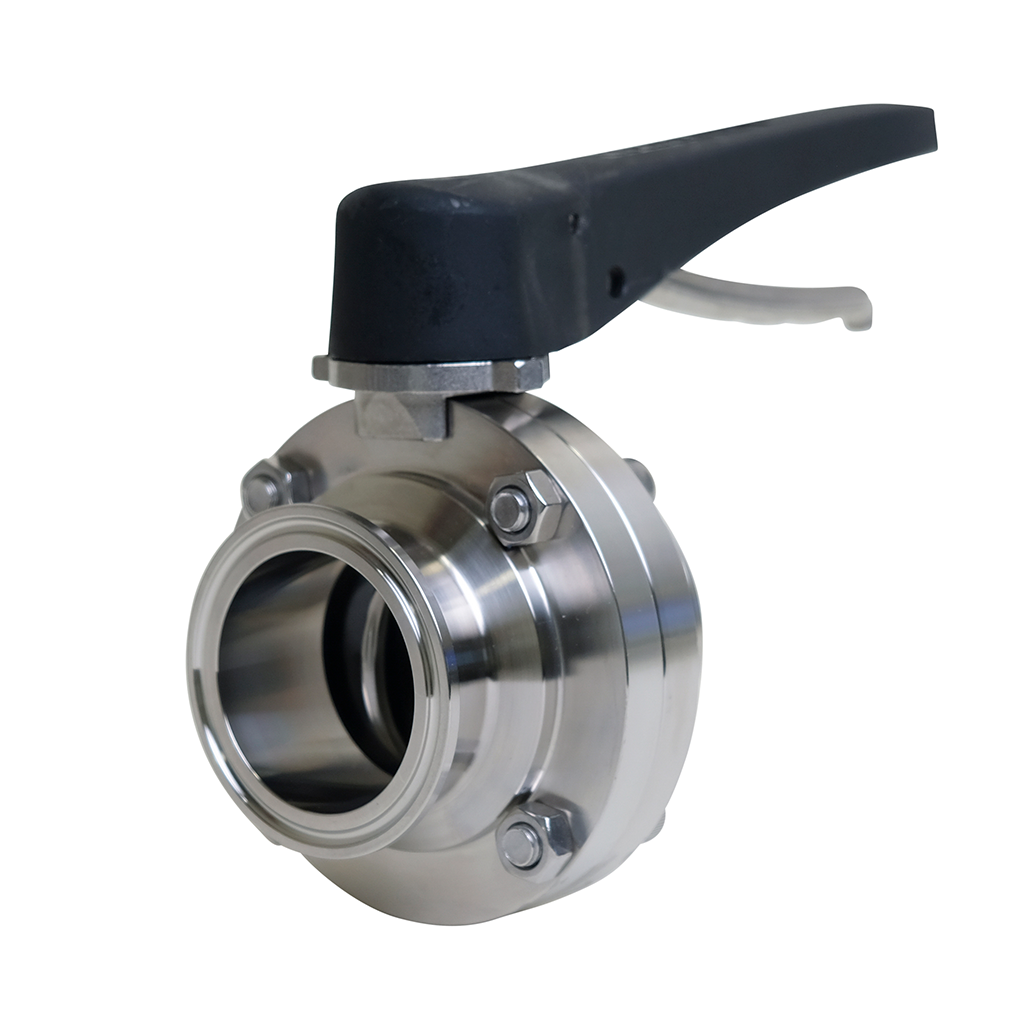

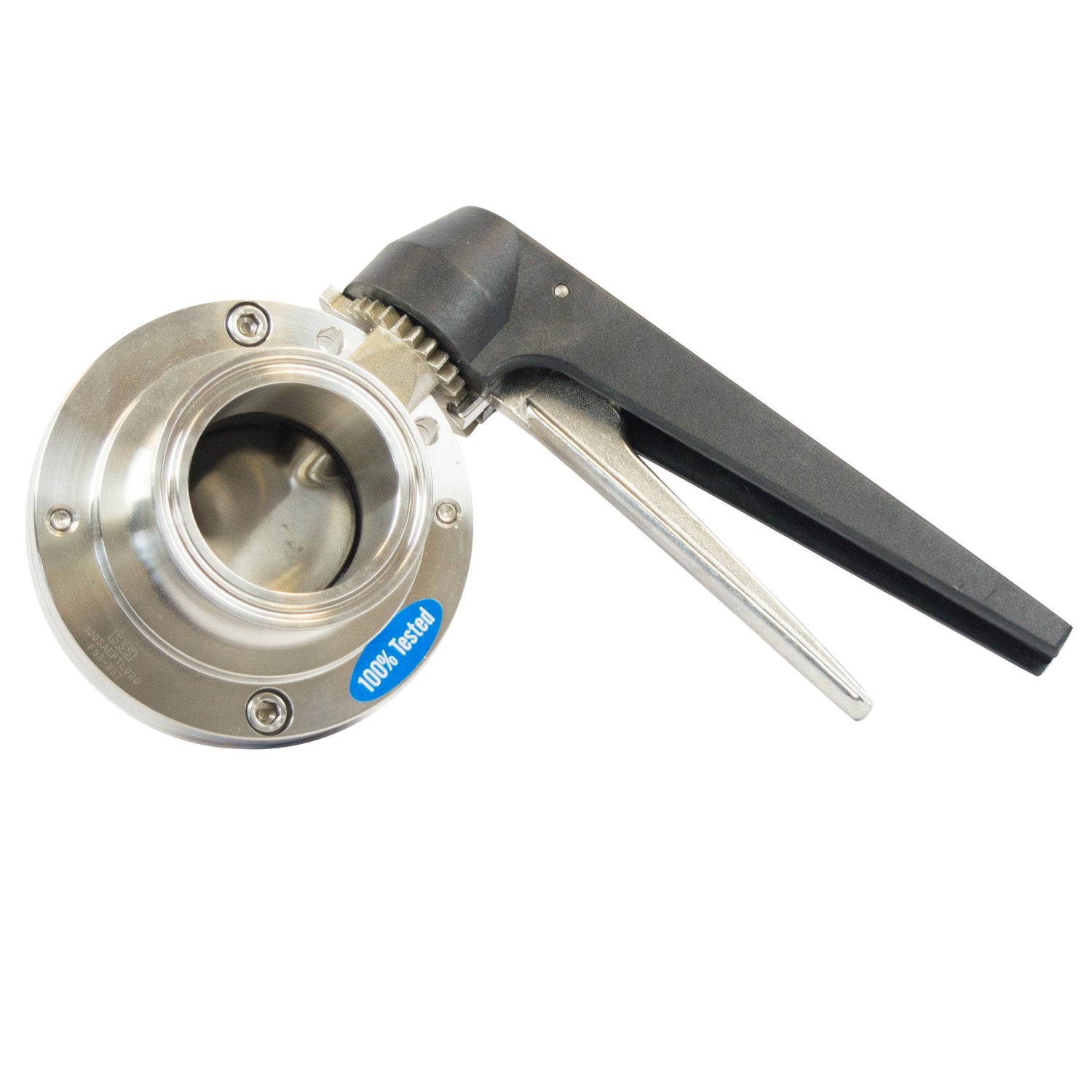

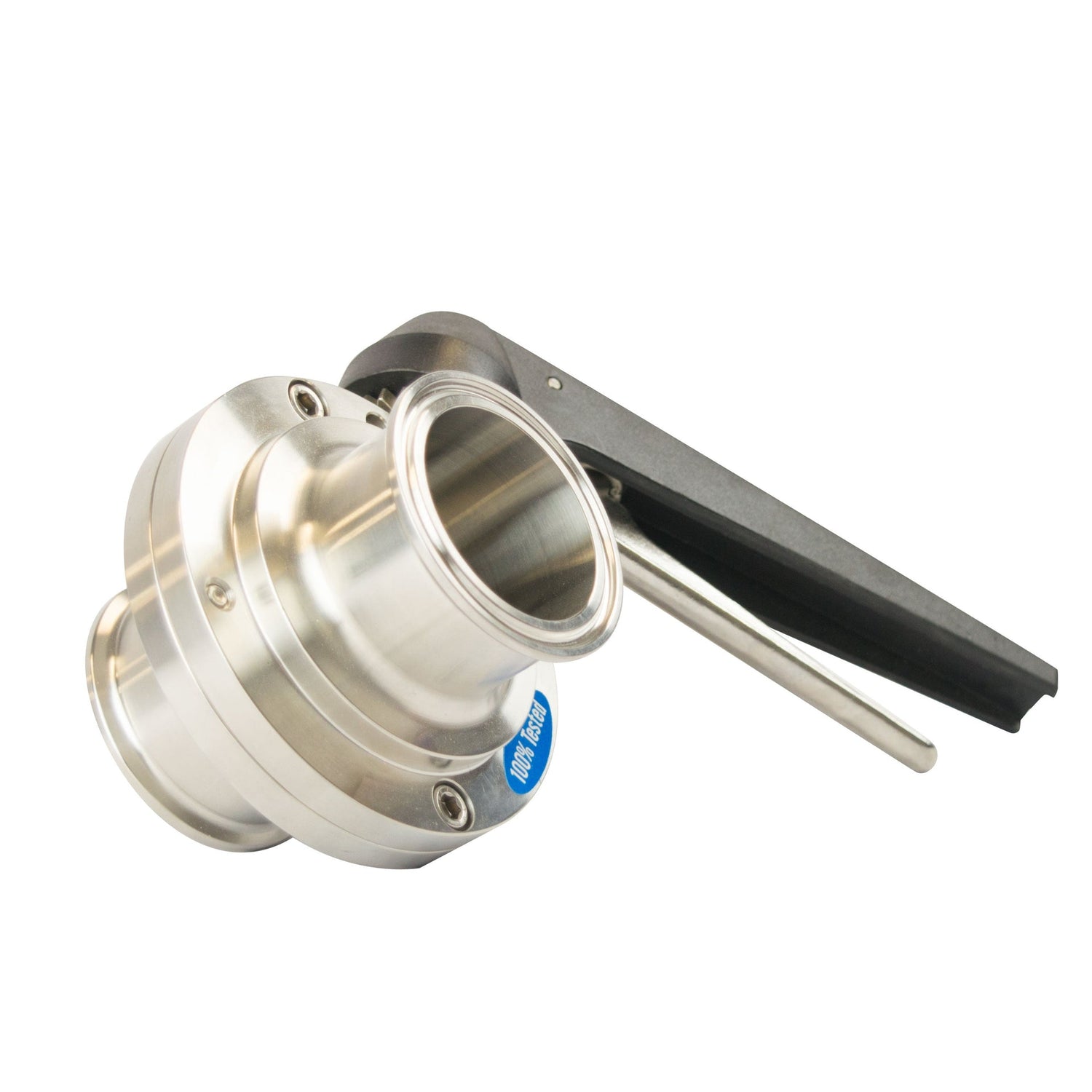

Tri-Clamp Butterfly Valve - Plastic Trigger Handle

$136.15

SKU: BV/W6BFVTC-E-1-TP

The Tri-Clamp butterfly valve is a bi-directional flow valve that is manually operated with a twelve-point black plastic trigger handle, and is intended for use in sanitary industries, such as brewing, distilling, pharmaceuticals, beverage, and food processing. This valve features a streamlined and durable design which makes for easy servicing. This butterfly valve has low flow resistance. There are three seat material options, and various sizes and handles to meet specific application needs. For assistance with different sizes or connections, please reach out to our sales team.

Butterfly Valve Technical Specifications

  • Sizes: 1", 1-1/2", 2", 2-1/2", 3", 4"
  • Material: 316L or 304 Stainless Steel
  • Seat Material: EPDM, Silicone, or FKM (Viton)
  • Connections: Tri-Clamp (Butt-weld is also available)
  • Twelve-position black plastic trigger handle (stainless trigger handle and pull handle options also available)
  • Manual operation
  • Minimum/Maximum Temperature Range
    • EPDM: -40 °F - 266°F
    • Silicone: -76°F - 392°F
    • FKM: -4°F - 392°F
  • Recommended Operating Temperature Range
    • EPDM: -4°F - 230°F
    • Silicone: -13°F - 284°F
    • FKM: -4°F - 302°F



Size Pressure Rating (PSI) Flow Coefficient (Cv) Weight (lbs) Break Torque (lbs) - EPDM Break Torque (lbs) - Silicone Break Torque (lbs) - FKM
1" 160 23 3.02 75 20 70
1-1/2" 160 80 2.90 130 40 125
2" 160 230 3.66 165 55 175
2-1/2" 140 264 4.12 210 70 220
3" 140 372 4.95 350 165 310
4" 140 800 7.48 540 350 450
