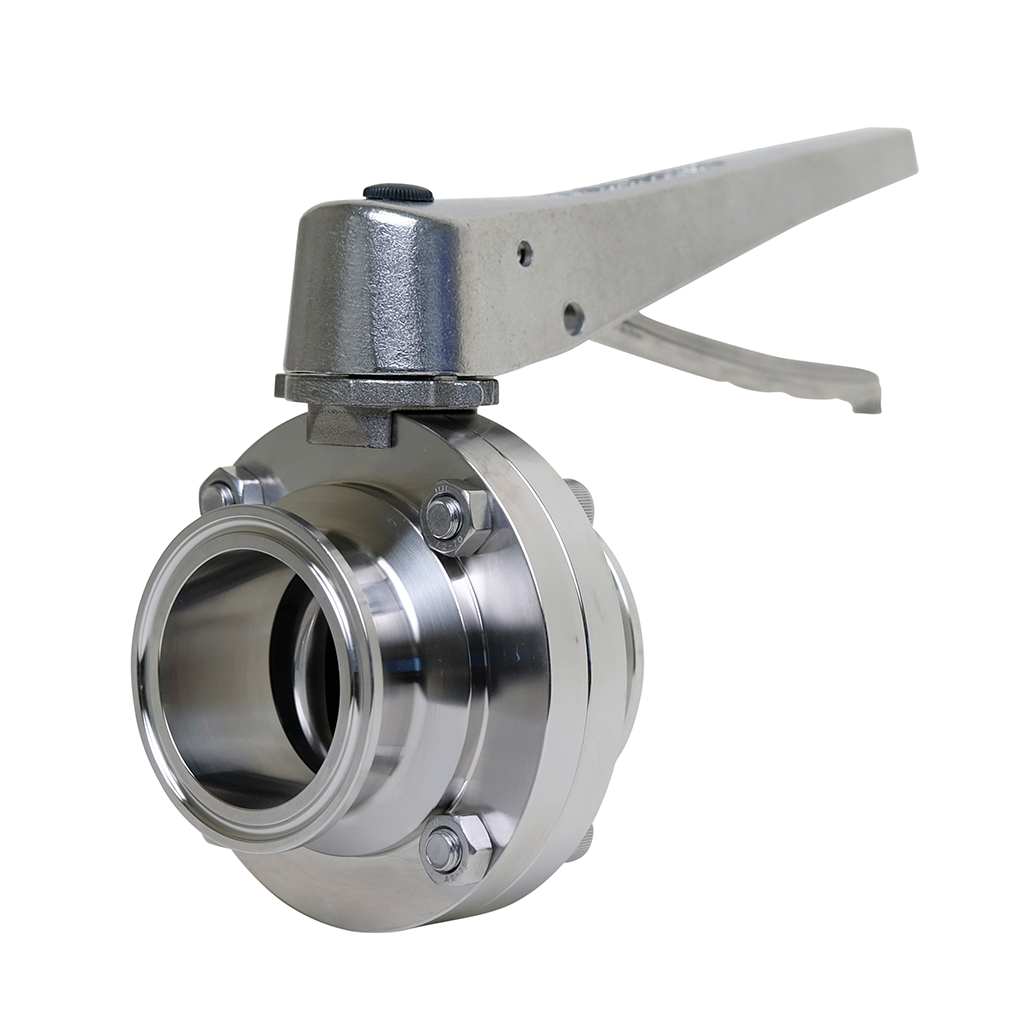

Tri-Clamp Butterfly Valve - Stainless Steel Trigger Handle

$125.78

SKU: BV/W6BFVTC-E-.50-TS

This Tri-Clamp butterfly valve is a bi-directional flow valve manually operated with a twelve-point stainless steel trigger handle. It is intended for use in sanitary industries, such as brewing, distilling, pharmaceuticals, beverage, and food processing. This valve features a streamlined and durable design, which makes it easy to service. You can purchase this in three seat material options and various sizes, to meet specific application needs. For assistance with different sizes or connections, please reach out to our sales team.

Butterfly Valve Technical Specifications

  • Sizes: 1/2", 3/4", 1", 1 1/2", 2", 2 1/2", 3", 4", 6"
  • Material: 316L or 304 Stainless Steel
  • Seat Material: EPDM, Silicone, or FKM (Viton)
  • Connections: Tri-Clamp (Butt-weld is also available)
  • Twelve-position stainless steel trigger handle (black plastic trigger handle and pull handle options also available)
  • Manual operation
  • Minimum/Maximum Temperature Range
    • EPDM: -40 °F - 266°F
    • Silicone: -76°F - 392°F
    • FKM: -4°F - 392°F
  • Recommended Operating Temperature Range
    • EPDM: -4°F - 230°F
    • Silicone: -13°F - 284°F
    • FKM: -4°F - 302°F
Size Pressure Rating (PSI) Flow Coefficient (Cv) Weight (lbs) Break Torque (lbs) - EPDM Break Torque (lbs) - Silicone Break Torque (lbs) - FKM
1/2" 150 8 3.13 35 15 25
3/4" 150 20 3.04 45 18 35
1" 160 23 3.57 75 20 70
1-1/2" 160 80 3.45 130 40 125
2" 160 230 4.23 165 55 175
2-1/2" 140 264 4.71 210 70 220
3" 140 372 5.50 350 165 310
4" 140 800 8.04 540 350 450
6" 110 1200 17.20 1550 700 750
