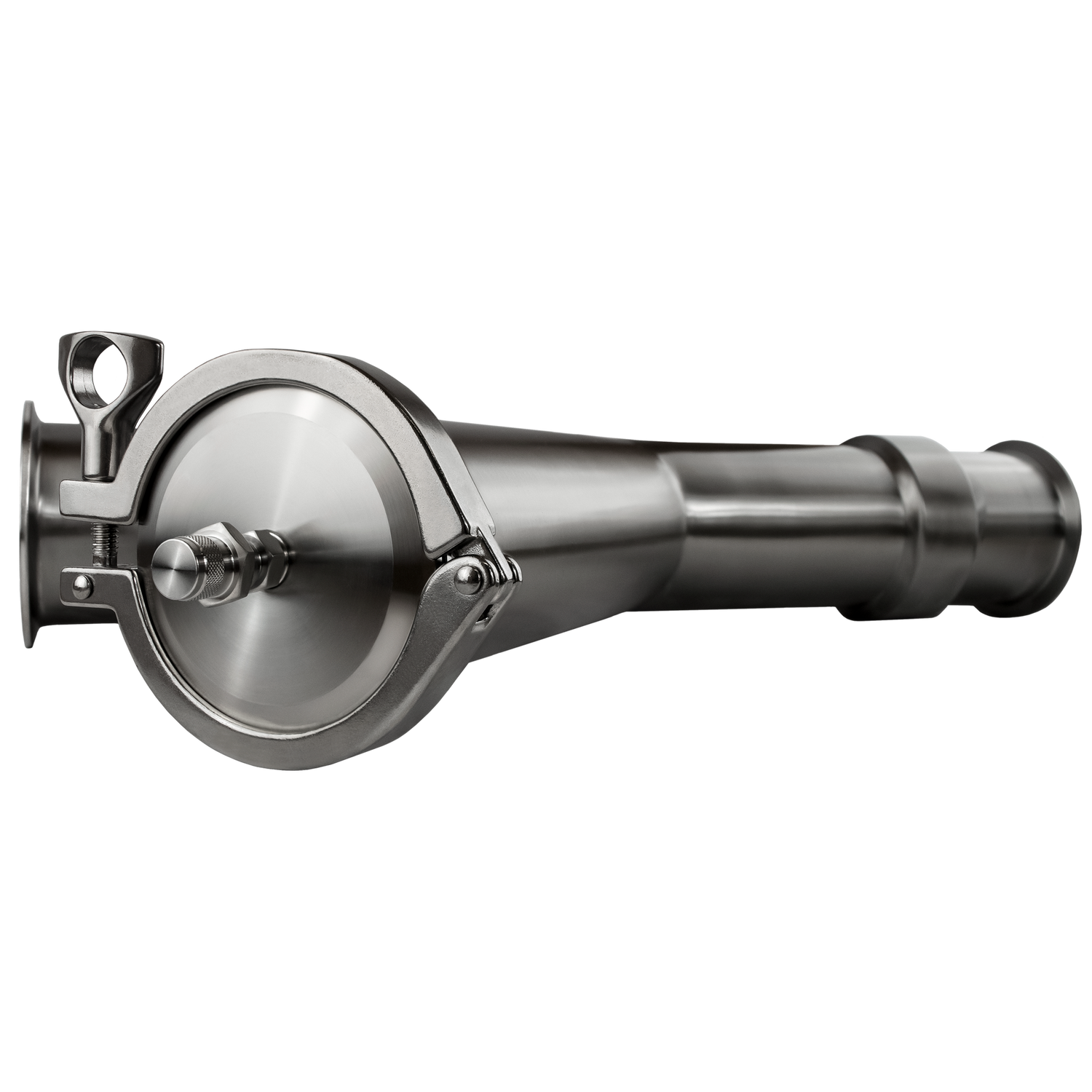

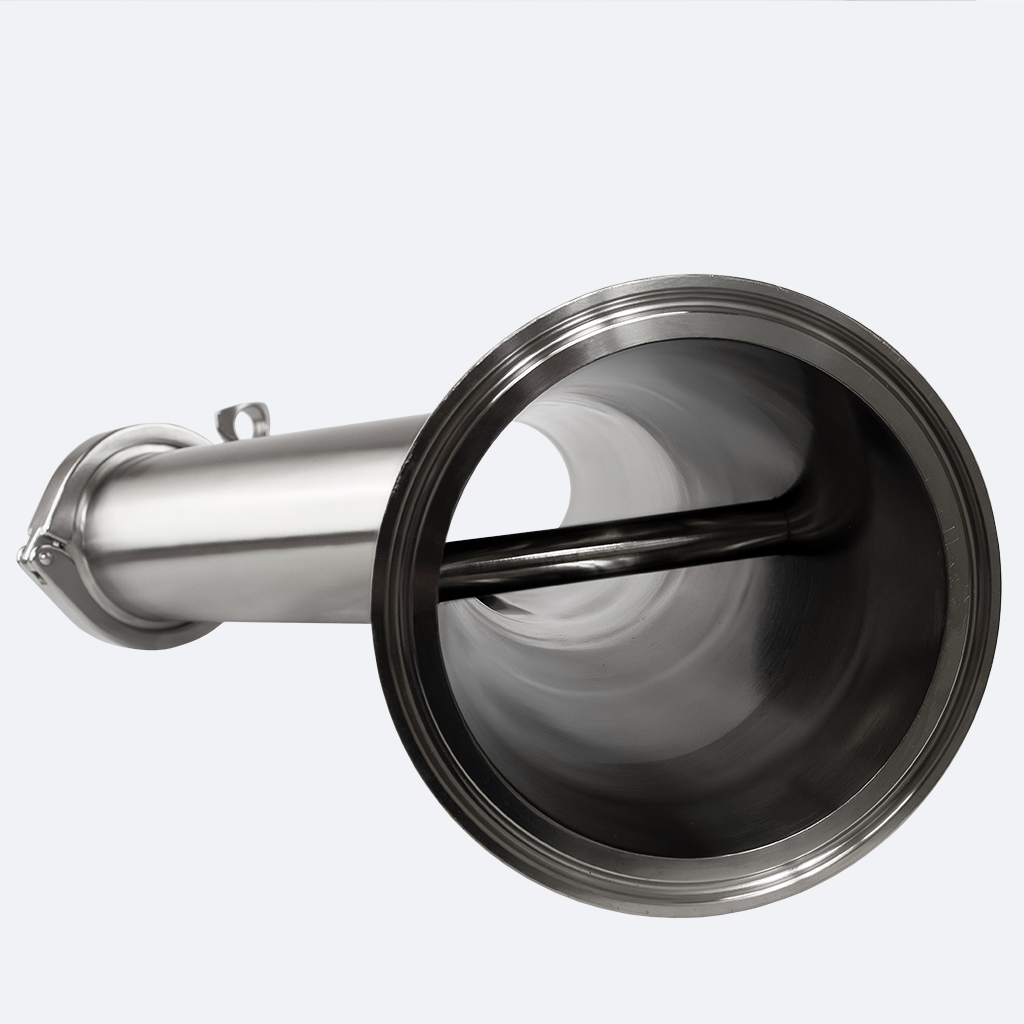

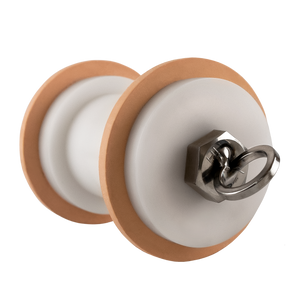

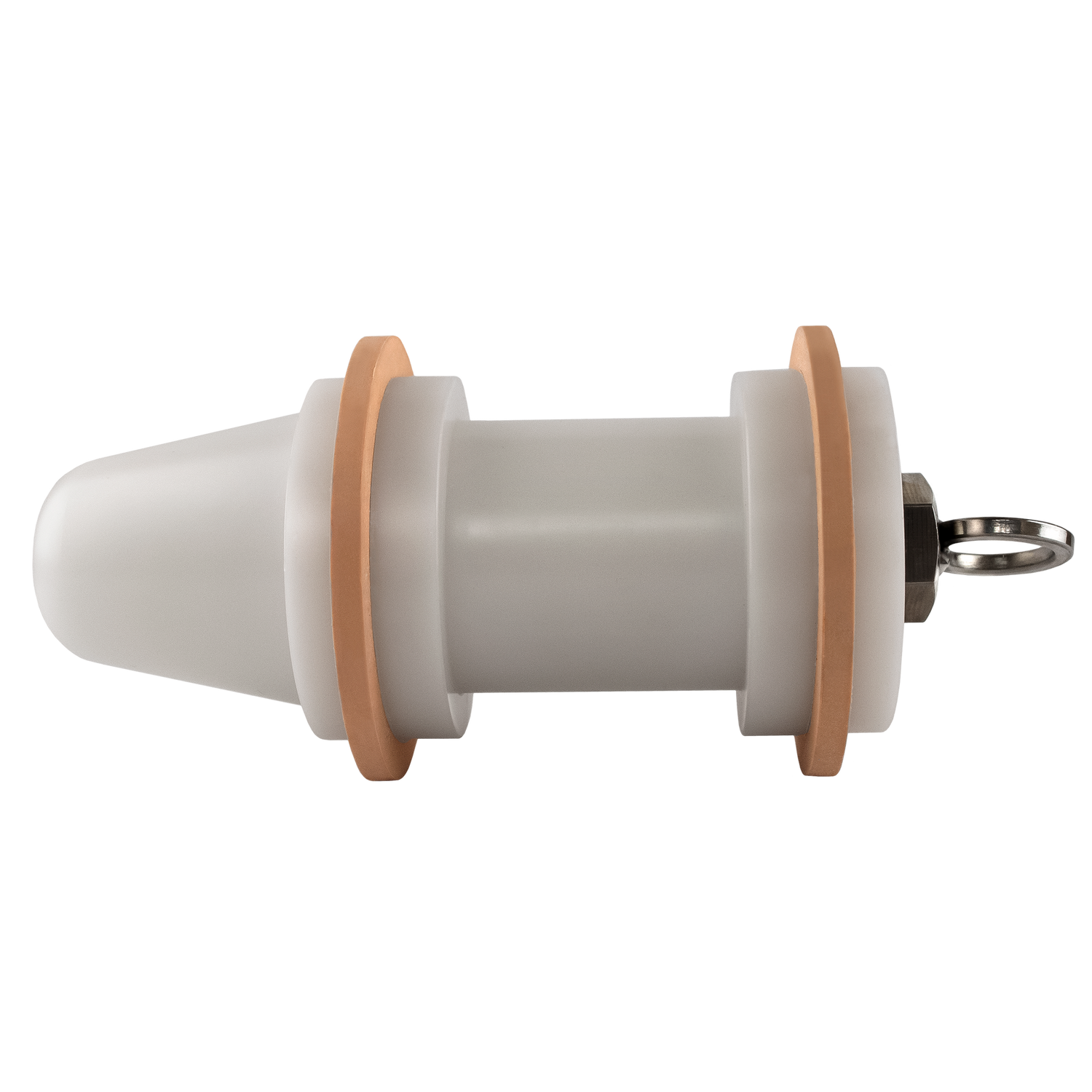

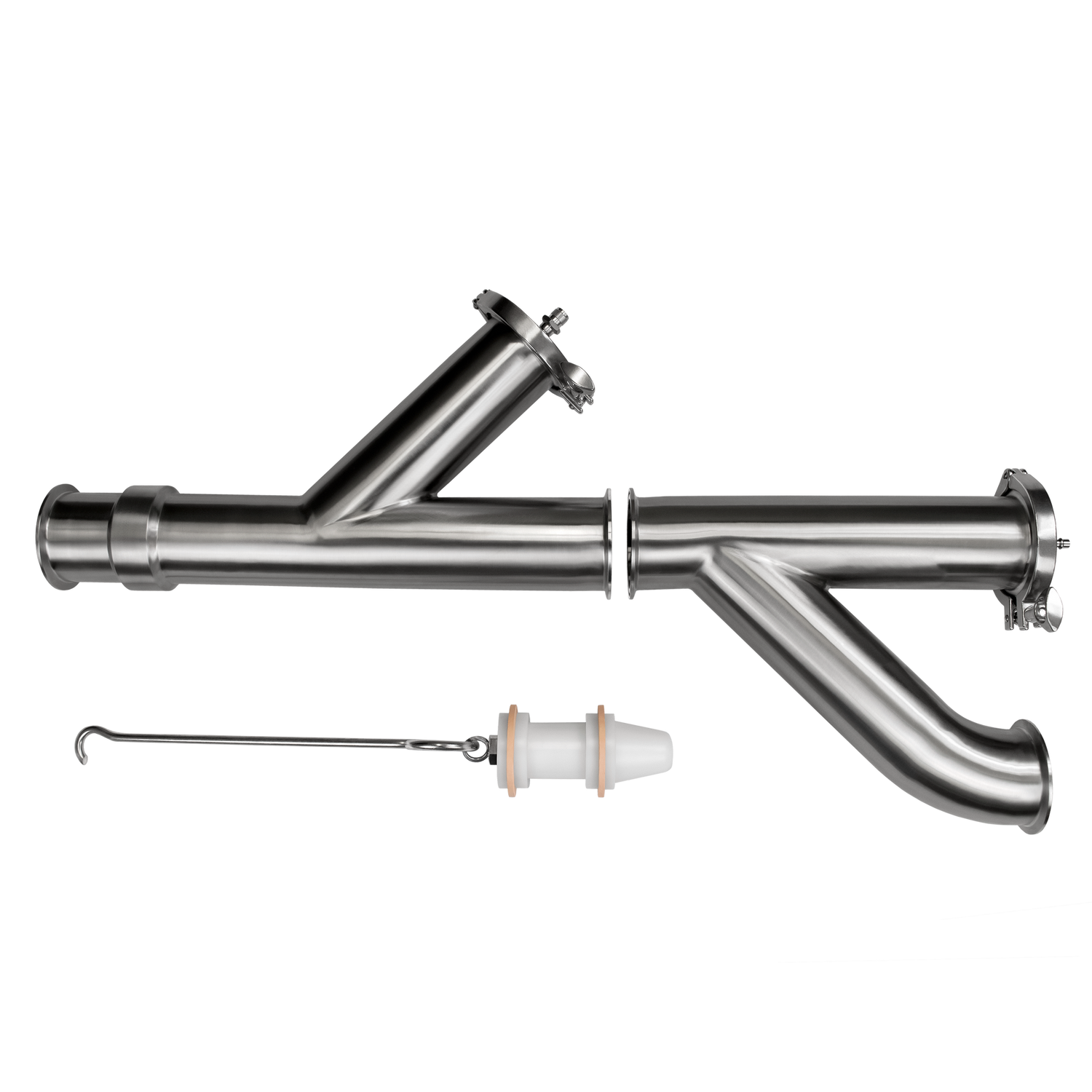

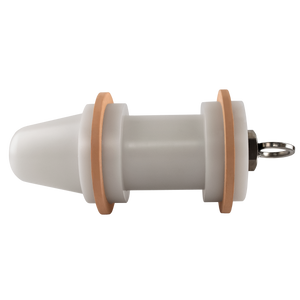

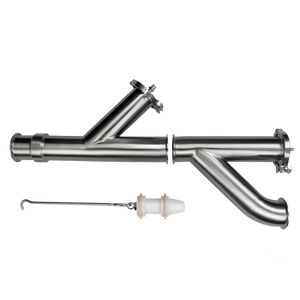

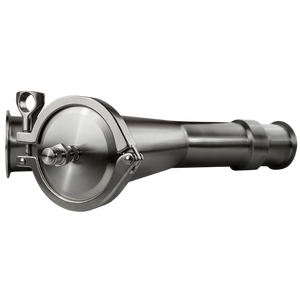

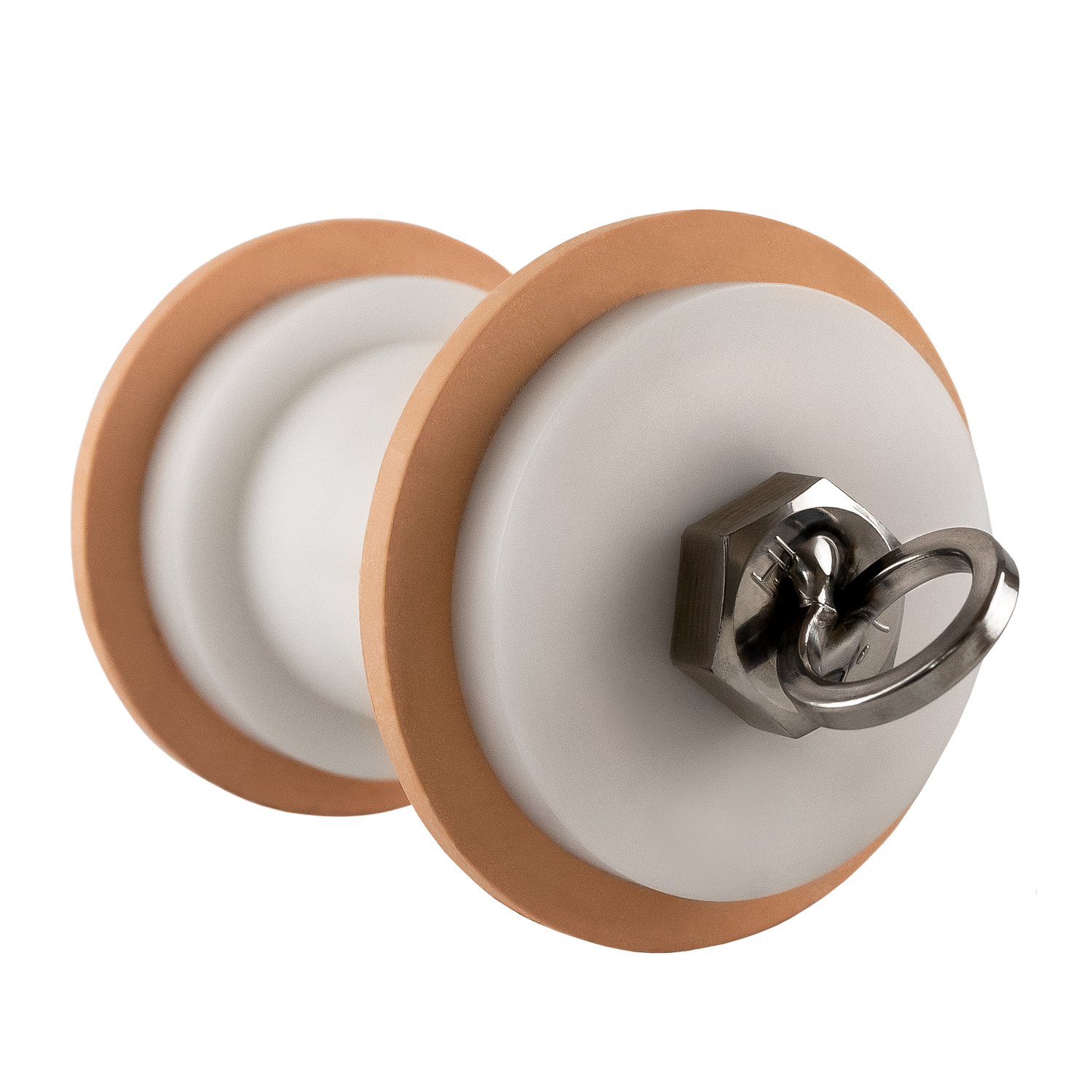

The T316L Product Recovery System (PIG System) is designed to be added to your product line to clear the tubing of residue and reduce product loss. This air operated system is attached via Tri-Clamp and features a "PIG" that is propelled through elbow or tee process lines moving the remaining product with it. A bar in the second lateral wye stops the PIG from leaving the system and allows you to easily remove it through the wyes branch using the provided handle. The PIG system seamlessly clears out viscous and slow moving products, resulting in faster changeovers and fewer washouts. The product recovery system consists of a PIG catcher, PIG launcher, the PIG, and a retriever handle.
Product Recovery System Technical Specifications
- Material: T316L SS
- Sizes: 1-1/2" to 4"
- Finish: Polish ID/OD
- Meets 3A requirements

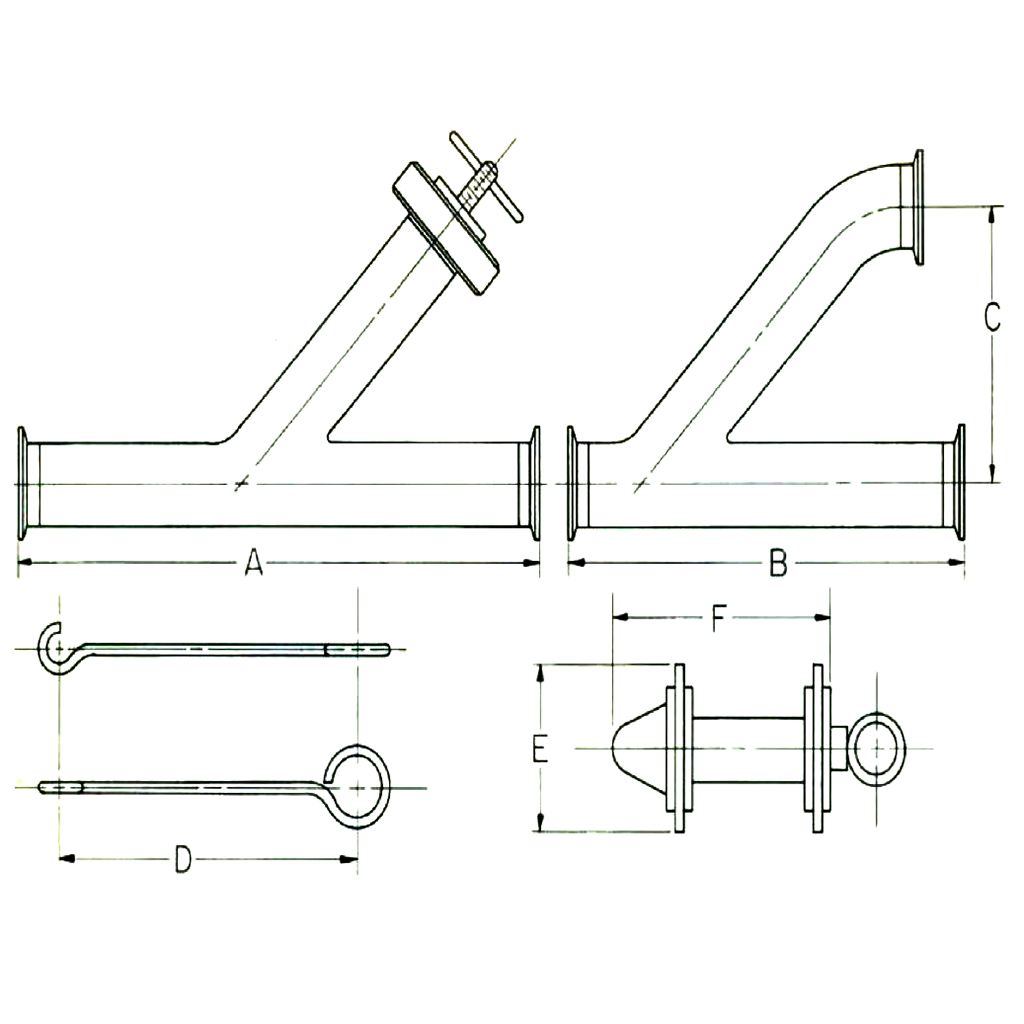

Product Recovery System Sizing
| Size | A | B | C | D | E | F | Weight |
| 1-1/2" | 11.69 | 8.938 | 5.063 | 10.50 | 1.469 | 2.813 | 5.40 |
| 2" | 13.81 | 10.38 | 5.906 | 11.50 | 1.968 | 3.531 | 8.60 |
| 2-1/2" | 16.00 | 11.66 | 7.094 | 12.00 | 2.425 | 4.438 | 12.40 |
| 3" | 18.25 | 12.47 | 7.563 | 12.25 | 2.925 | 5.625 | 15.00 |
| 4" | 20.50 | 13.63 | 9.343 | 12.25 | 3.934 | 6.250 | 25.30 |
