2WK - Butt-Weld Short 45° Elbow - Polished

$15.55

SKU: FI/2WK-.50-7-6

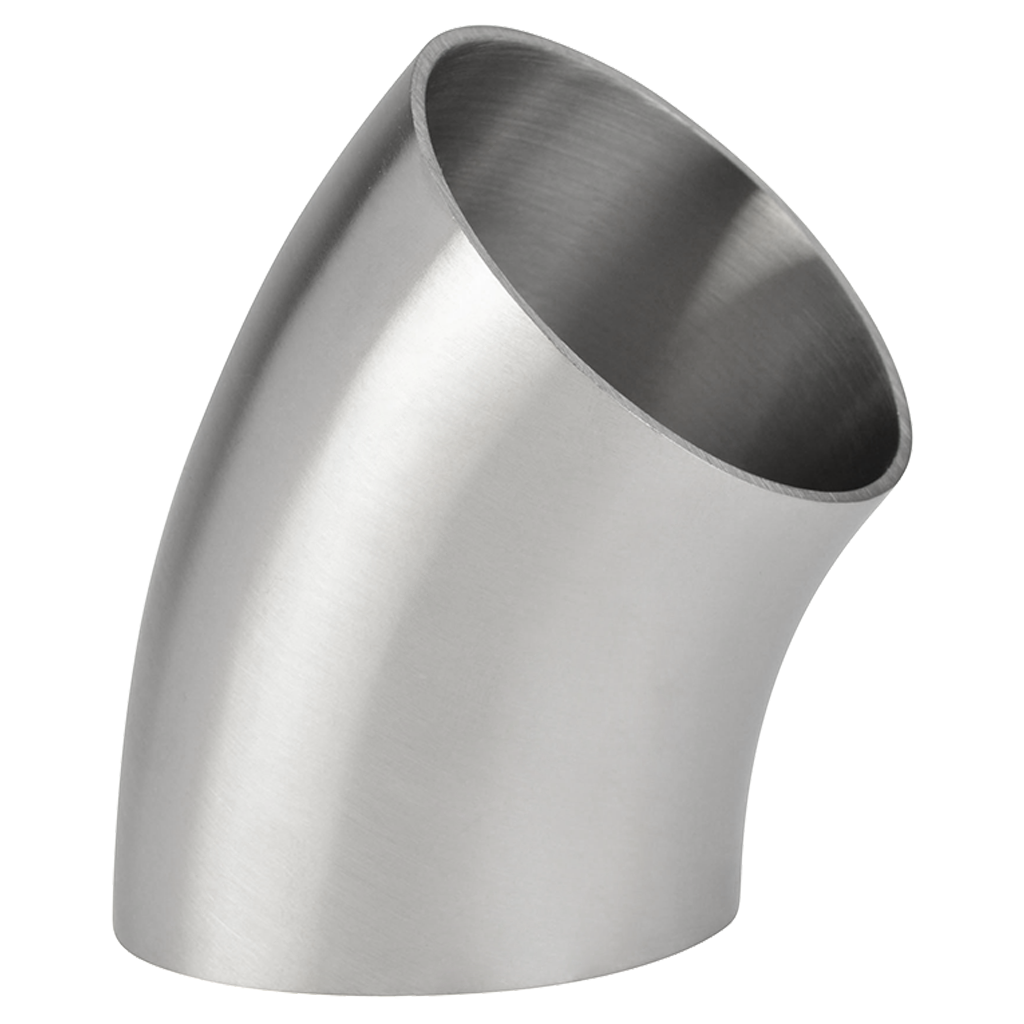

The 2WK - Butt-Weld Short 45° Elbow is a sanitary fitting that is designed to be welded into permanent sanitary tubing installations to create 45° change in direction. This fitting is constructed of either 304 or 316 stainless steel, and comes in sizes ranging from 1/2" to 12".

Other sizes are available upon request; please call with any inquiries.

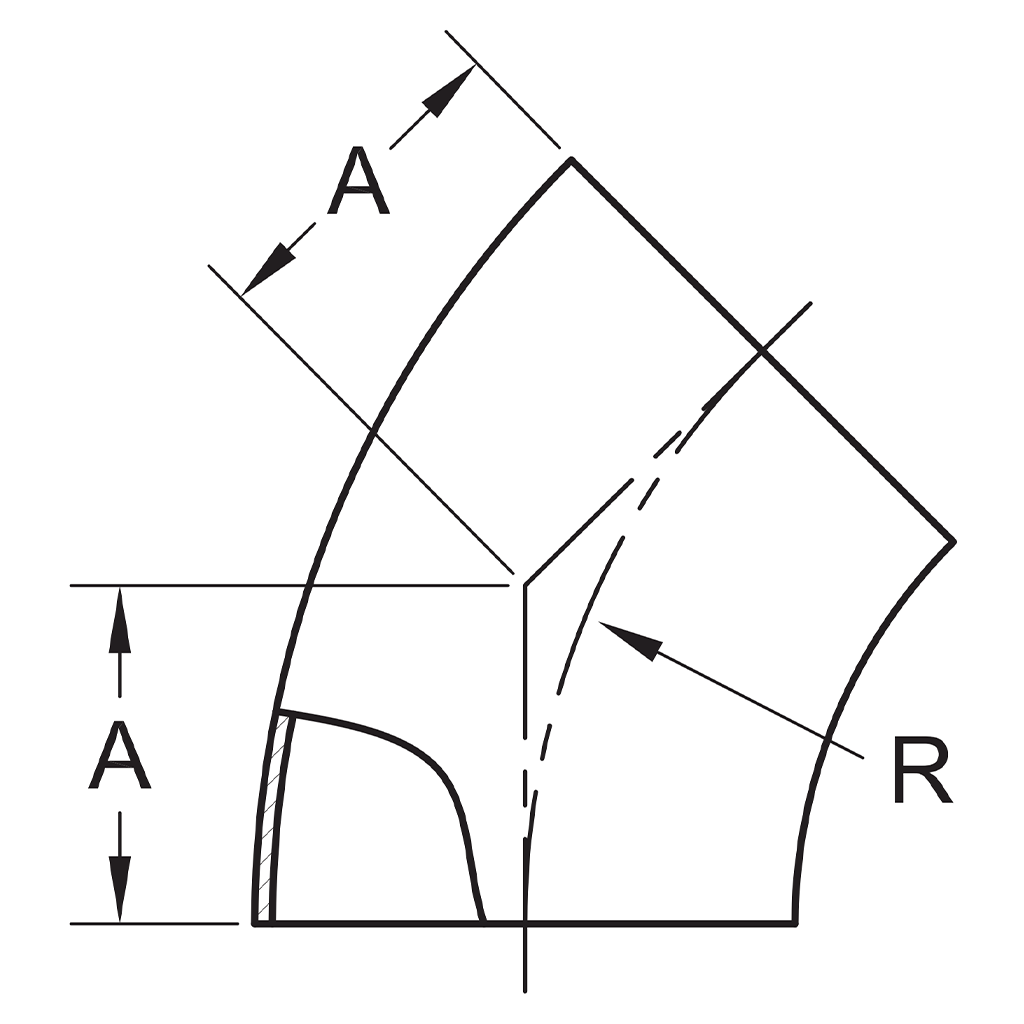

Tube O.D.  A R
1/2" 0.47 1.12
3/4" 0.47
1.12
1" 0.62 1.50
1-1/4" 0.78
1.87
1-1/2" 0.94
2.25
2" 1.25 3.00
2-1/2" 1.56 3.75
3" 1.87 4.50
4" 2.50 6.00
5" 3.12 7.50
6" 3.75 9.00
8" 5.00 12.00
10" 6.25 15.00
12" 7.50 18.00
