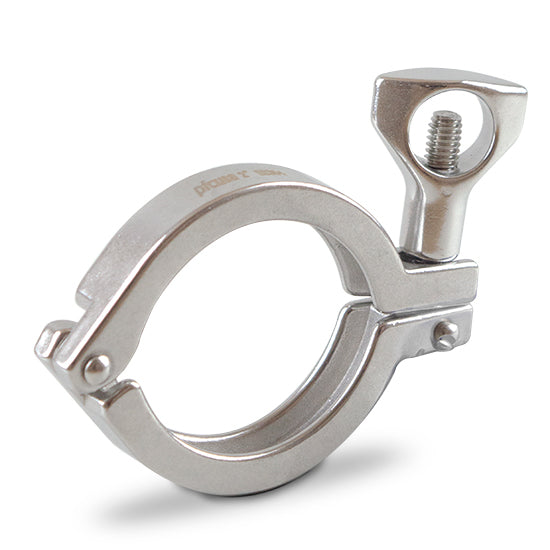

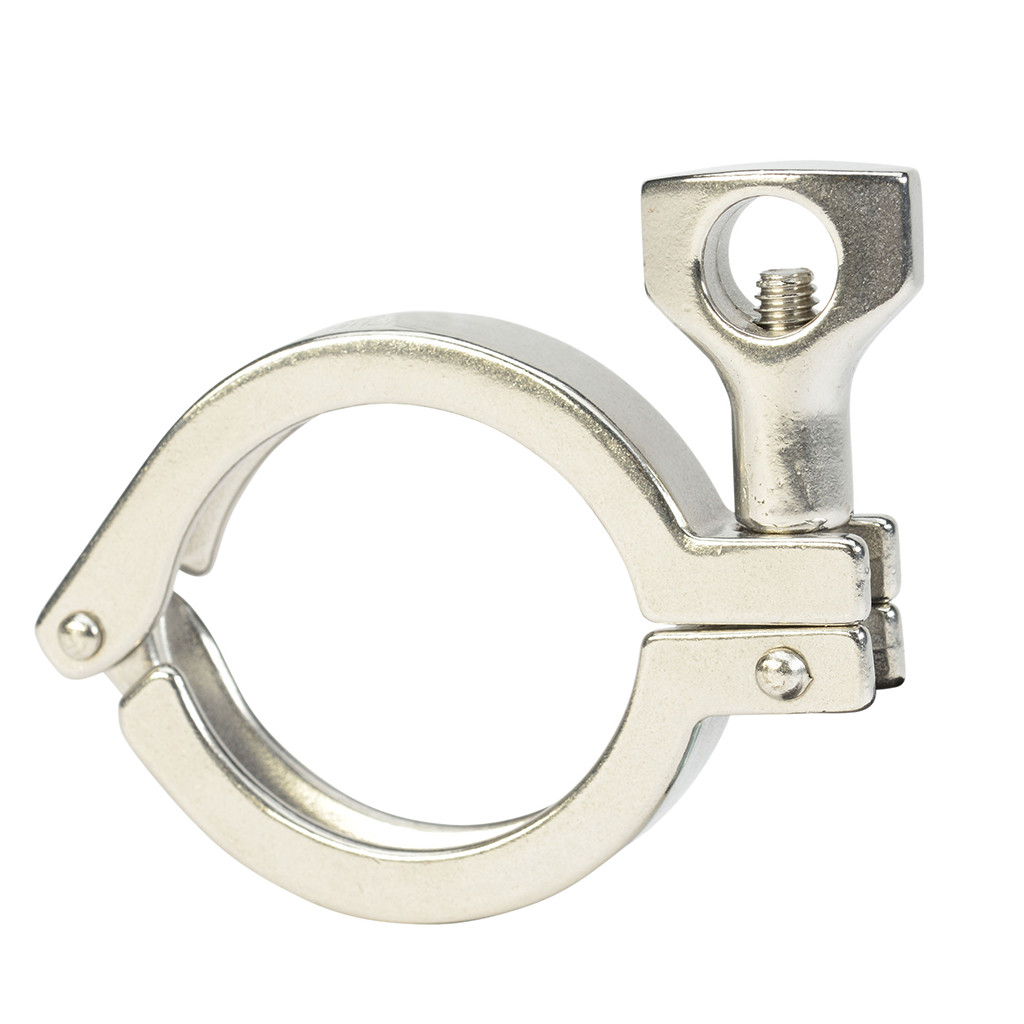

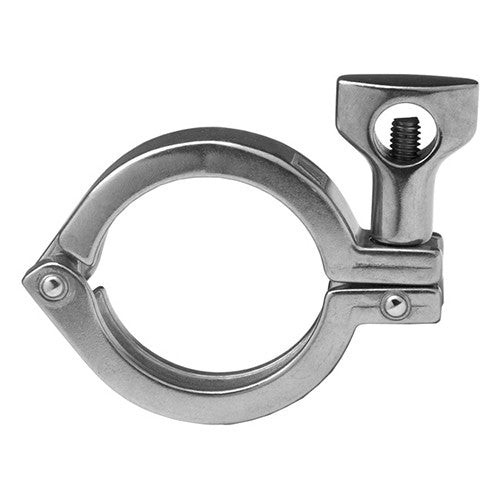

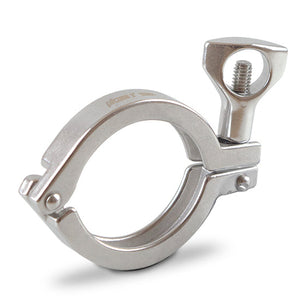

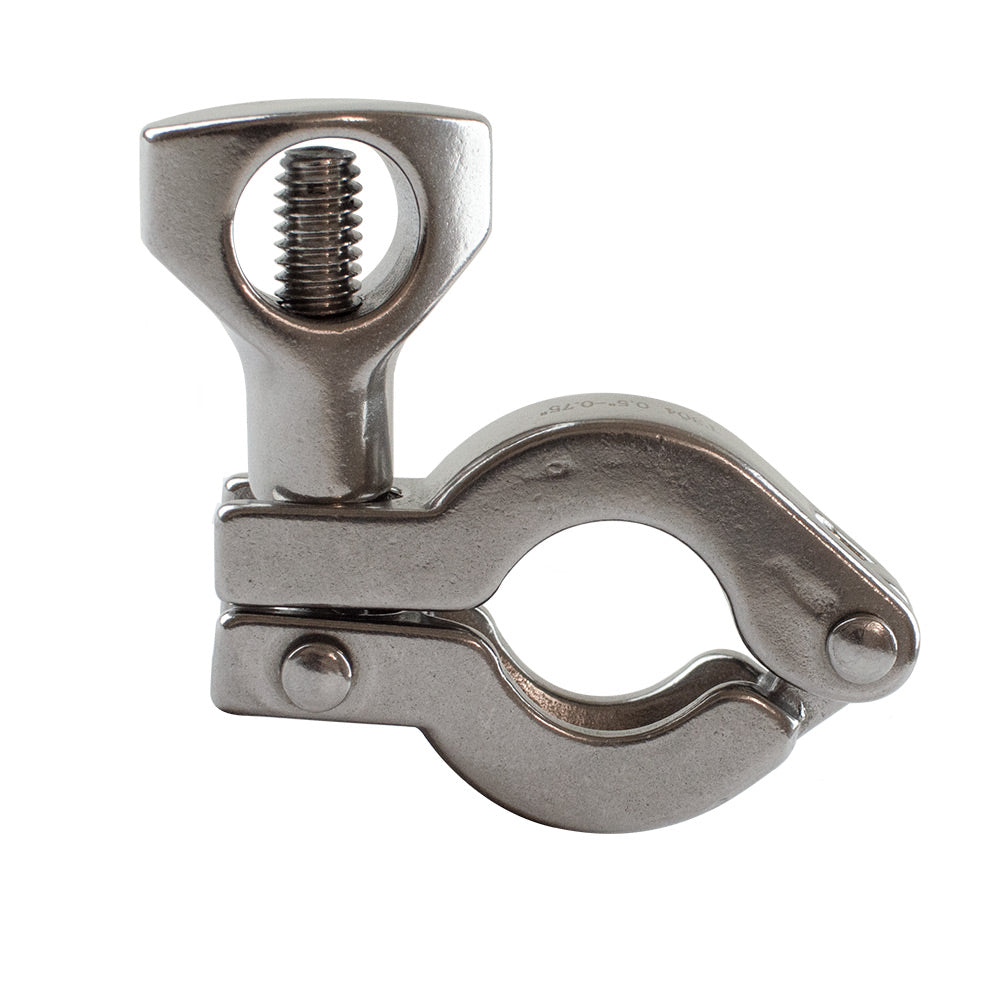

This Heavy-Duty single-pin Tri-Clamp is for use with Tri-Clamp ferrules. This Tri-Clamp sanitary fitting is made of 304 Stainless Steel and is 3A certified. Other sizes are available upon request. Please call with any inquiries.

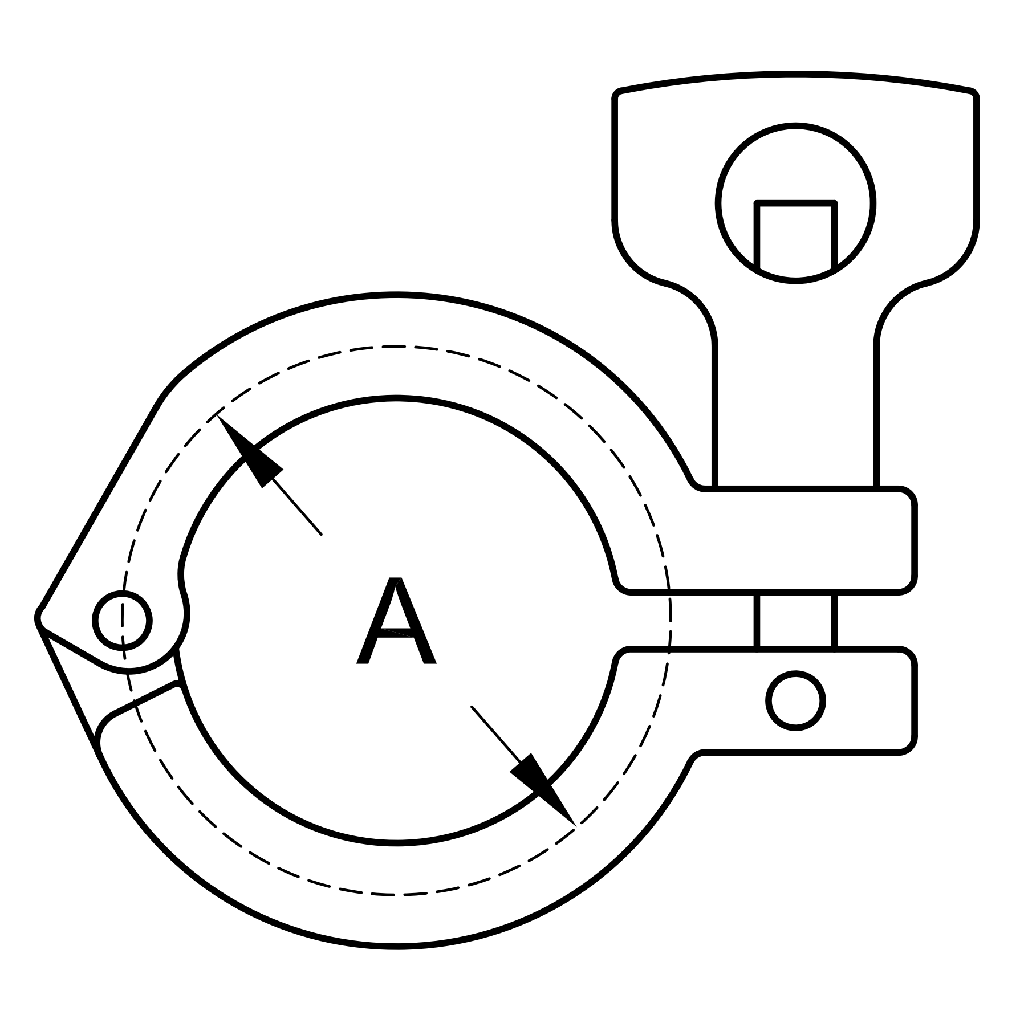

| Tube O.D. | Service Pressure Rating @70°F | Service Pressure Rating @250°F | A Measure |
| 1/2" & 3/4" | 1500 |
1200 |
1.06 |
| 1" & 1-1/2" | 500 | 300 | 2.12 |
| 2" | 450 | 250 | 2.65 |
| 2-1/2" | 400 | 200 | 3.18 |
| 3" | 350 | 175 | 3.72 |
| 4" | 300 | 150 | 4.82 |
| 5" | 225 | 100 | 5.82 |
| 6" | 150 | 75 | 6.69 |
| 8" | 100 | 50 | 8.69 |
| 10" | 75 | 40 | 10.74 |
| 12" | 50 | 25 | 12.74 |
* Wing nut is tightened to 25 in. lb. of torque
