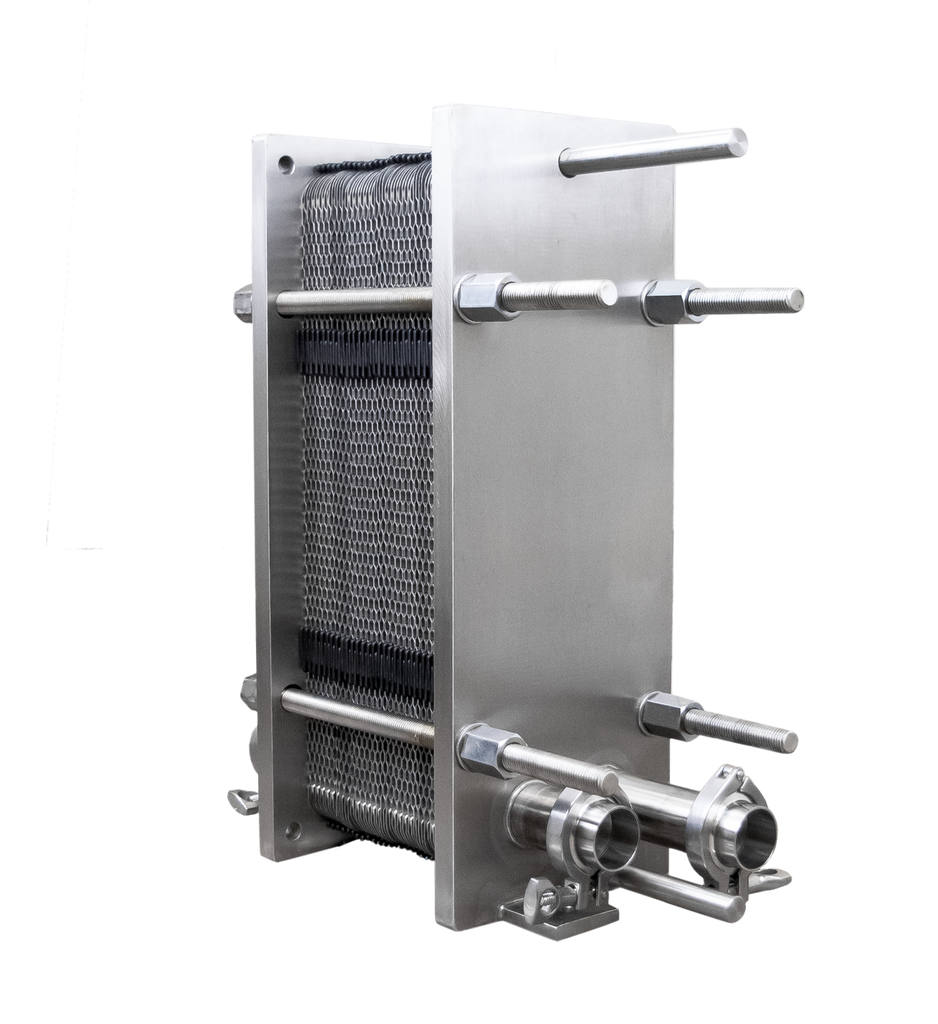

HEAT EXCHANGER / WORT CHILLER
This is a stainless steel brewery heat exchanger for cooling wort from 200F to 70F using city water at around 50F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.
Technical SpecificationsFrame Material: Stainless Steel
Surface Area: From 6.5 ft² to 20 ft²
Plates: 0.5mm 316ss,
Gaskets: EPDM clip on gaskets
Design: Dual pass flow
Connections: 1.5" Tri-Clamp Water connections X 1.5" Tri-Clamp Wort connections
Frame: 12L Frame length, Max plates: 60
