HEAT EXCHANGER / WORT CHILLER

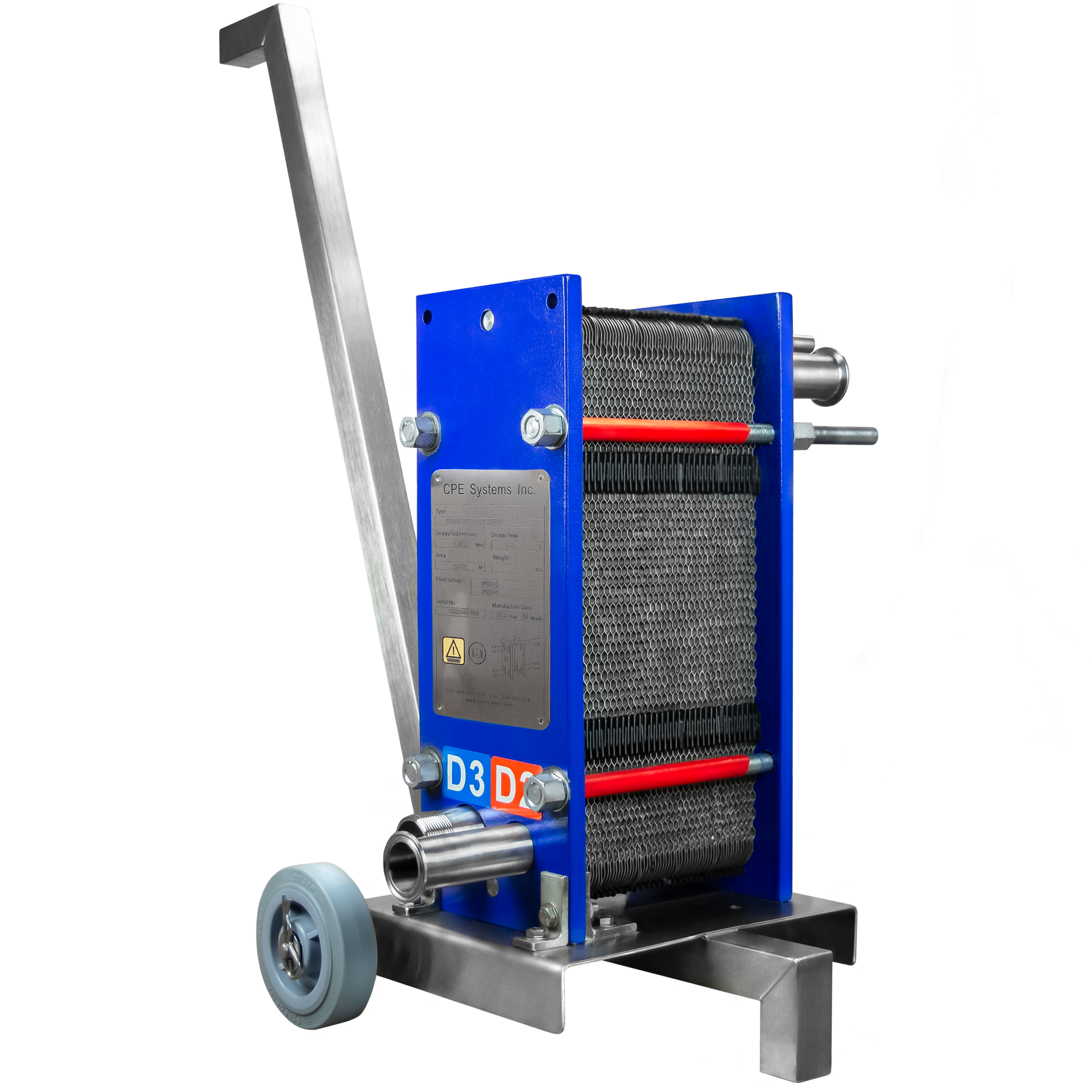

The CPE30D-XXD is a portable brewery heat exchanger for cooling wort from 200° F to 70° F using city water at around 50 F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes. This heat exchanger has been mounted on a Canadian made stainless steel cart.
Technical SpecificationsFrame Material: Carbon Steel
Cart Material: Stainless Steel
Surface Area: From 6.5 ft² to 20 ft²
Plates: 0.5mm 316ss
Gaskets: EPDM clip on gaskets
Design: Dual pass flow
Connections: 1.5" Tri-Clamp Water connections X 1.5" Tri-Clamp Wort connections
Frame: 12L Frame length, Max plates: 60
