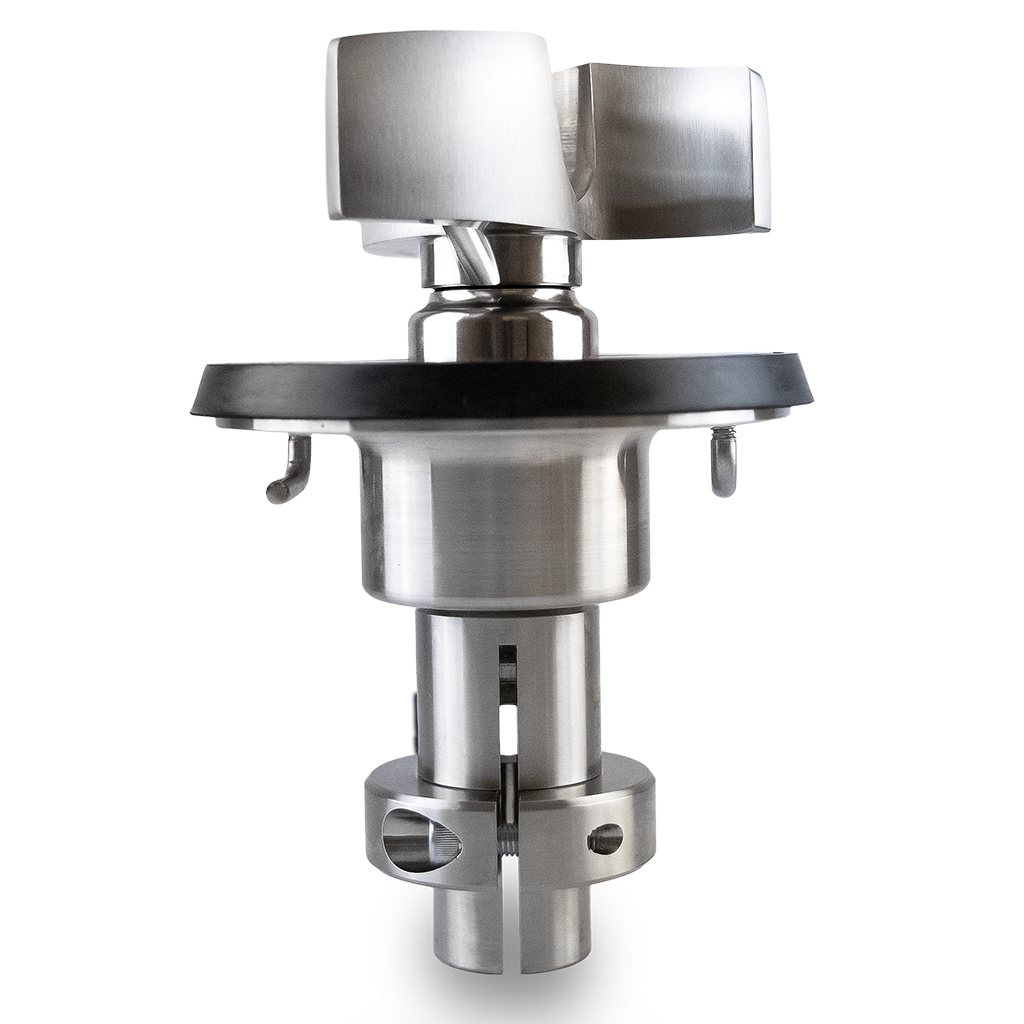

The CB+ Conversion Kit includes all the parts to upgrade a C or C+ Series pump to a CB+ pump. The CB+ has an internal seal that allows for self-cleaning and lubrication. This kit allows you to enjoy the internal seal of a CB+ pump without purchasing an entirely new pump. This conversion kit features the High-Clean Cartridge seal which is easier to clean and more hygienic than a traditional CB+ seal. In addition to converting CPE pumps this kit will also fit most major brands of C-series pumps including Ampco, Q-Pump, SPX, and Topline. The materials are 316L Stainless Steel with EPDM elastomers.

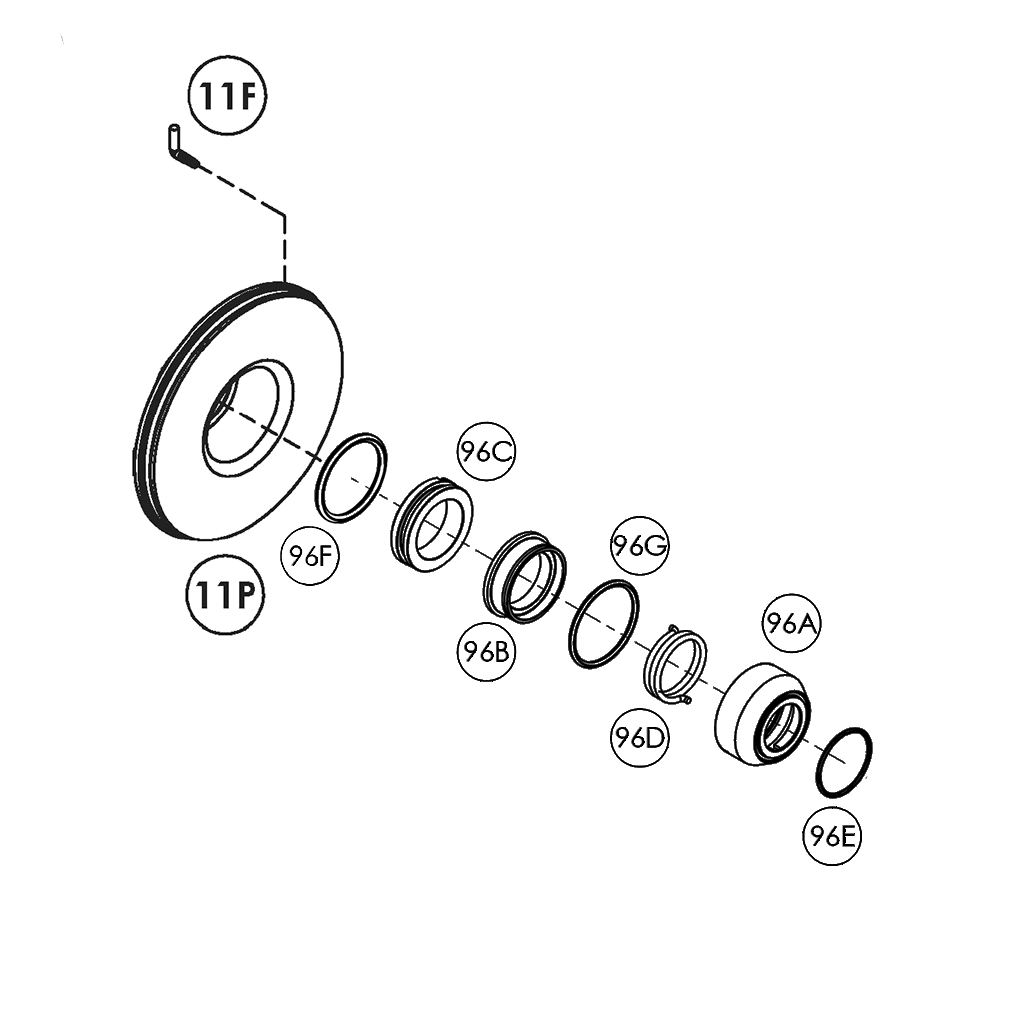

The C+ to CB+ Conversion Kit:
- 11P. Backplate
- Stationary seal assembly
- Stationary seal (silicon carbide)
- Seal o-ring (EPDM)
- Rotating Seal Assembly
- Carbon rotary seal
- Seal O-Ring (EPDM)
- Spring
- Rotary Holder
- Rotary Holder O-Ring (EPDM)
- Backup Ring
The C to CB+ Conversion Kit:
- 2P. Impeller
- 6P. Stub Shaft
- 24C. Impeller Key
- 24D. Impeller Nut
- 91A. Impeller Back Gasket (EPDM)
- 91B. Impeller Nut Gasket (EPDM)
- 92. Shaft Collar
- 92A. Shaft Collar Screw
- 11P. Backplate
- Stationary seal assembly
- Stationary seal (silicon carbide)
- Seal o-ring (EPDM)
- Rotating Seal Assembly
- Carbon rotary seal
- Seal O-Ring (EPDM)
- Spring
- Rotary Holder
- Rotary Holder O-Ring (EPDM)
- Backup Ring
