C+ Series Seal Kits are for the maintenance of CPE C+ series pumps and AMPCO's line of AC+ pumps. We have a variety of seal kits based on seal kit type, seal type, and pump size. The Mechanical Seal Kit is a basic D seal replacement kit for the C+100, C+114, C+216, C+218, and C+328. The DG Seal Kit is a seal replacement kit for C+114, C+216, C+218, and C+328 pumps with a DG seal. The Ultimate Seal Kit is a complete service kit for centrifugal pumps with a D seal that have been in service for over a year and includes a spring and seal cup.

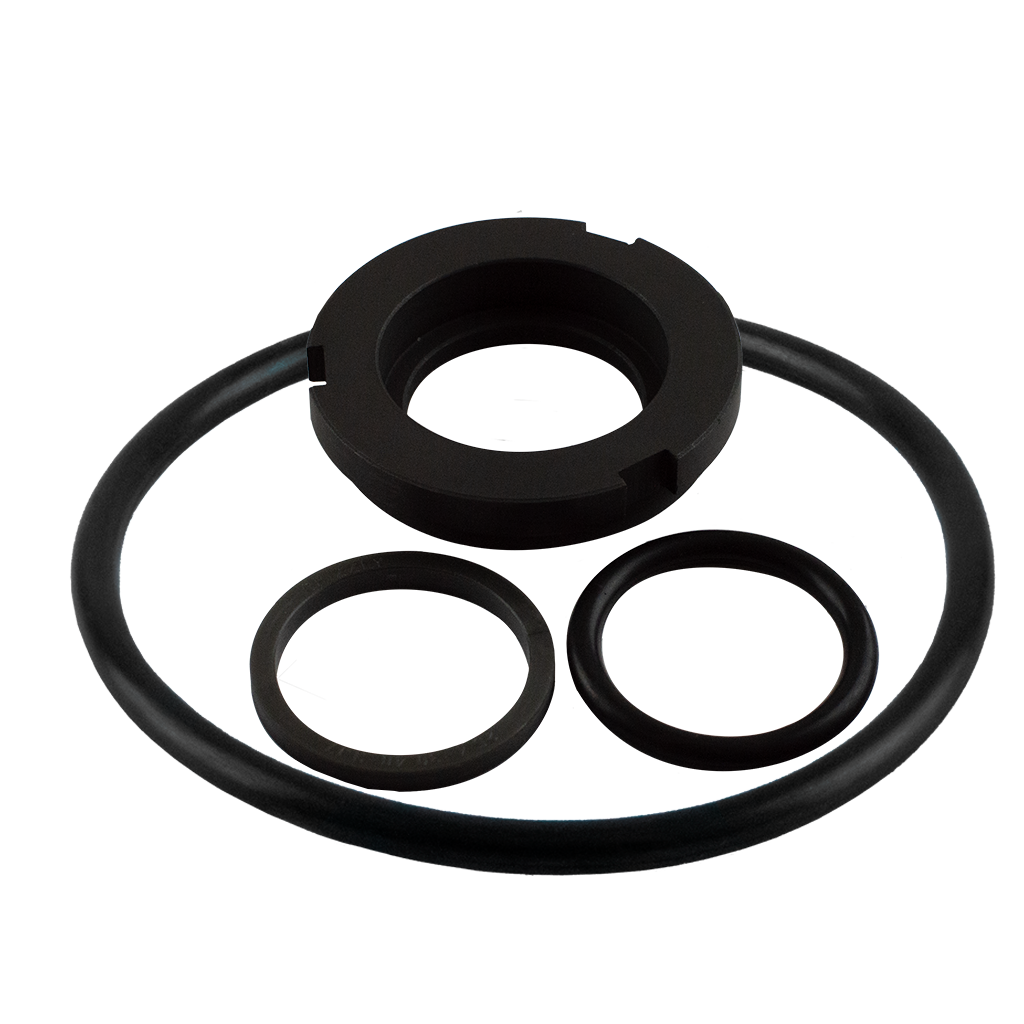

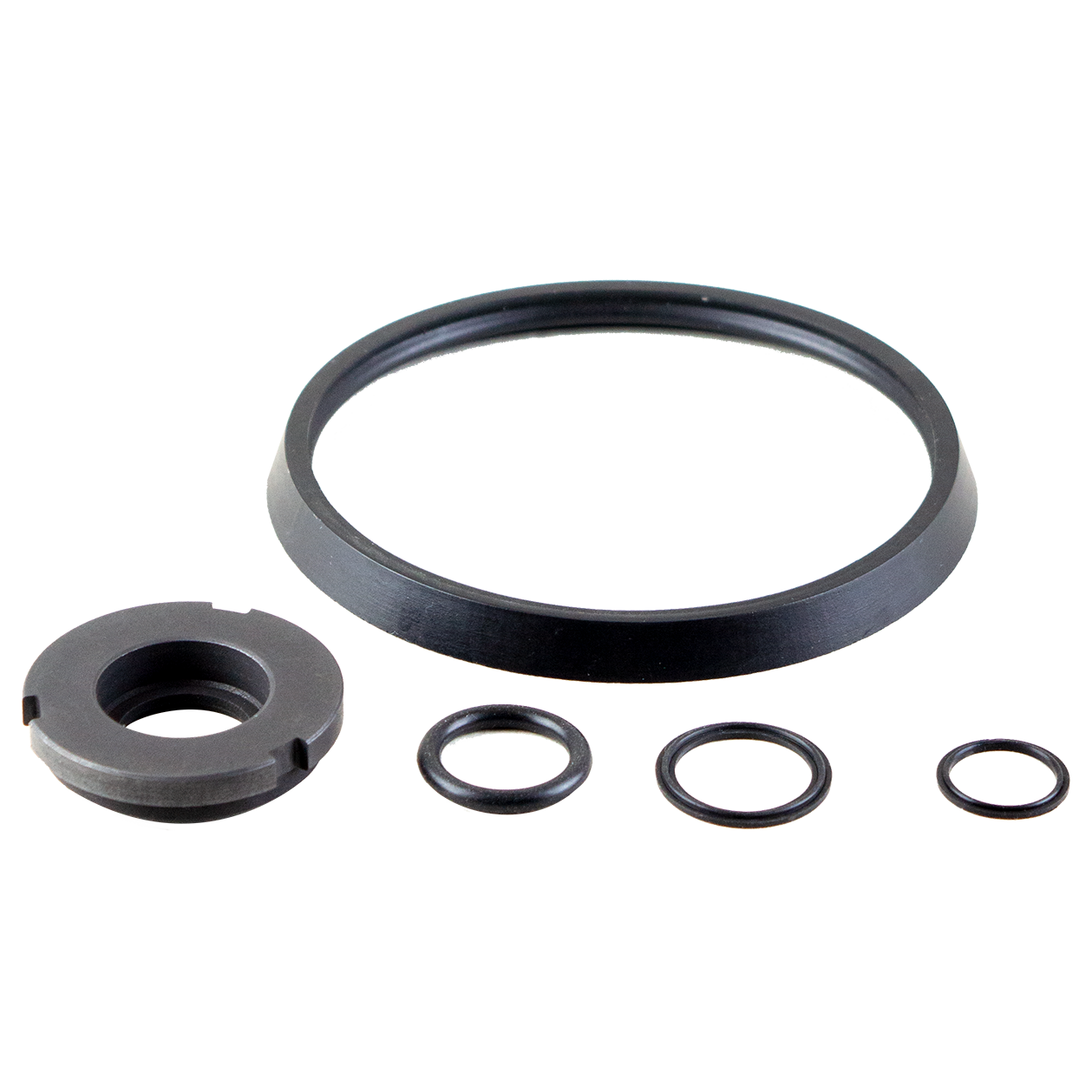

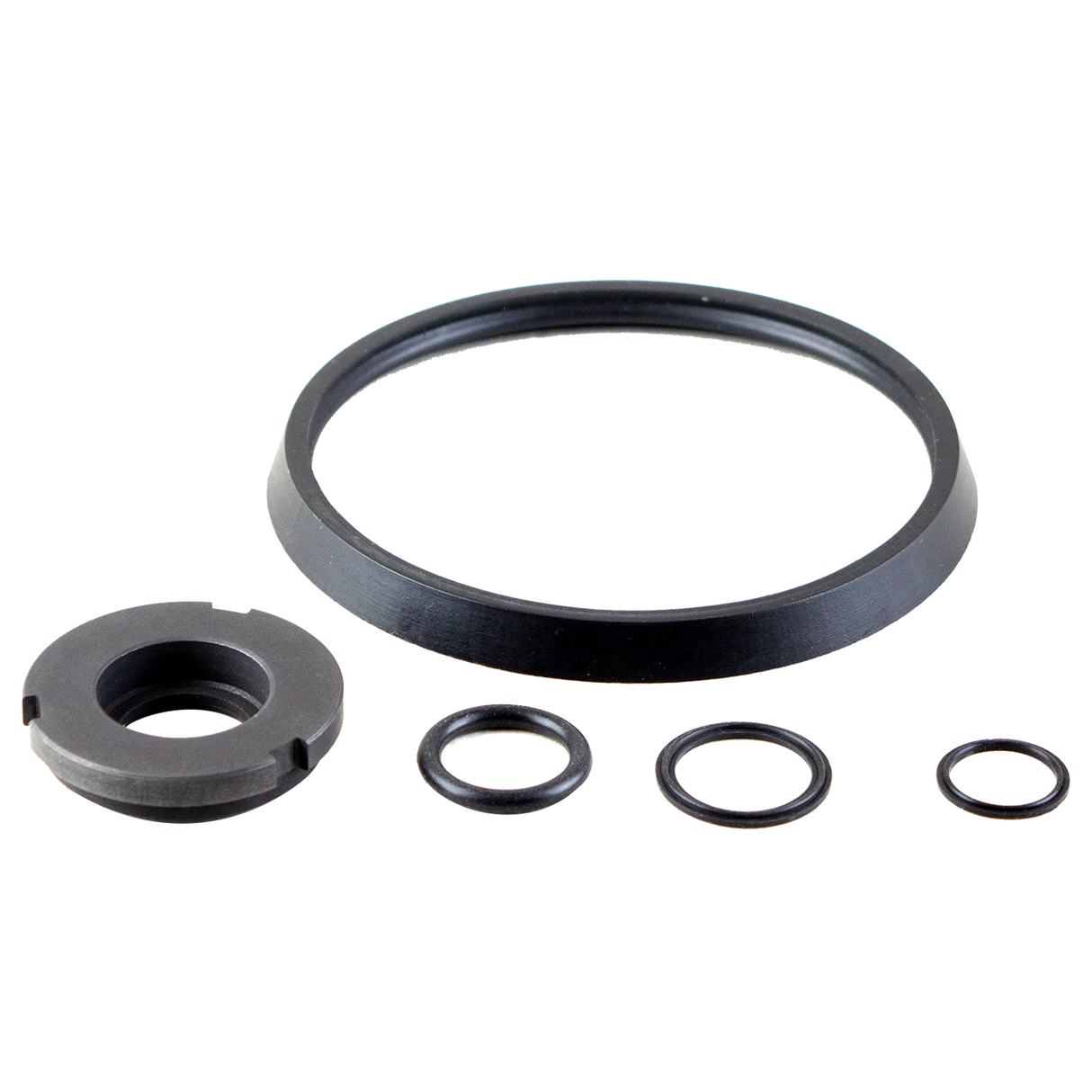

C+ Seal Kit:
- Casing gasket (EPDM)
- Rotating seal
- Seal o-ring (EPDM)
- Impeller nut gasket (EPDM) (not required on C+100)
- Impeller back gasket (EPDM) (not required on C+100)
C+ DG Seal kit:
- Casing Gasket (EPDM)
- Spring
- Cup
- Carbon rotating seal
- Silicon carbide stationary seal
- Seal o-ring (EPDM)
- Impeller nut gasket (EPDM)
- Impeller back gasket (EPDM)
- Teflon stationary seal gasket (includes 2)

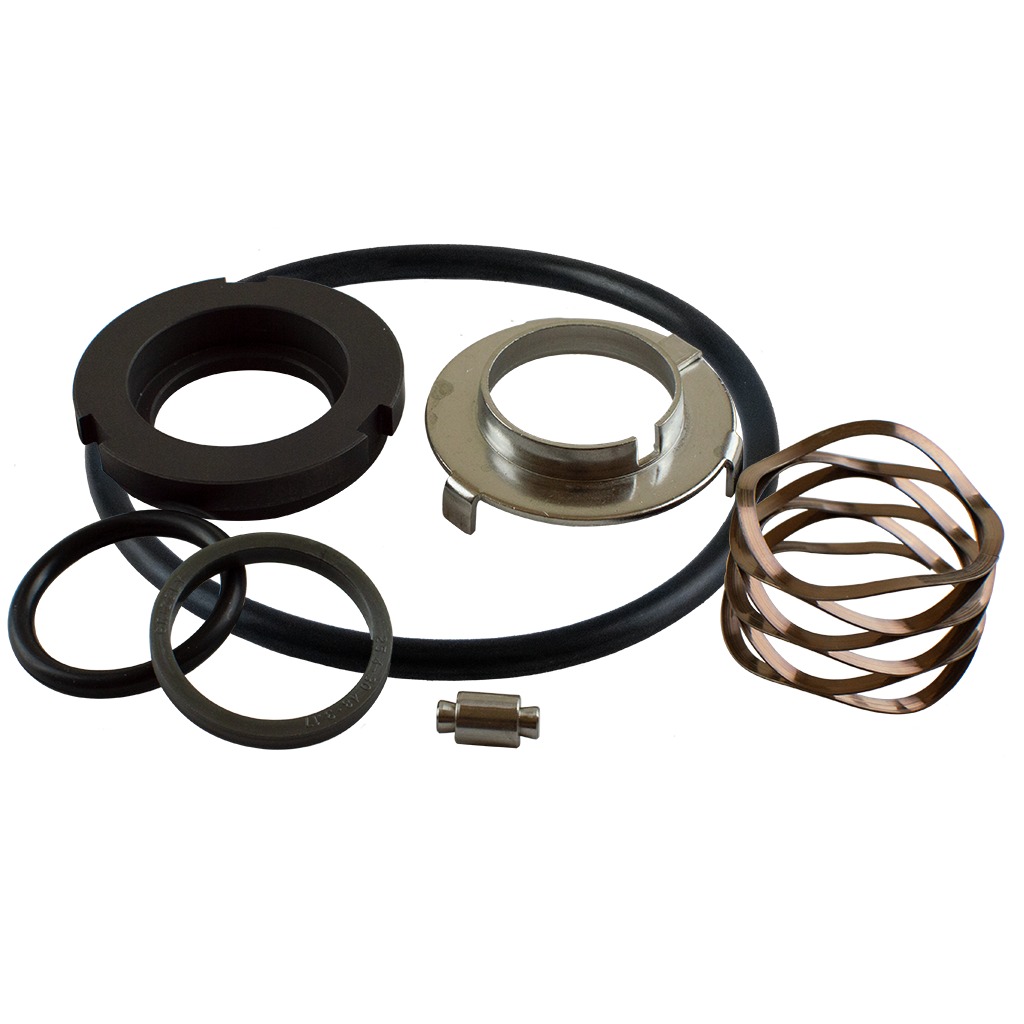

C+100 Ultimate Seal Kit:
- Casing gasket
- Carbon seal
- Cup
- Carbon seal o-ring
- Back up o-ring
- Spring
- Impeller retainer (pin)

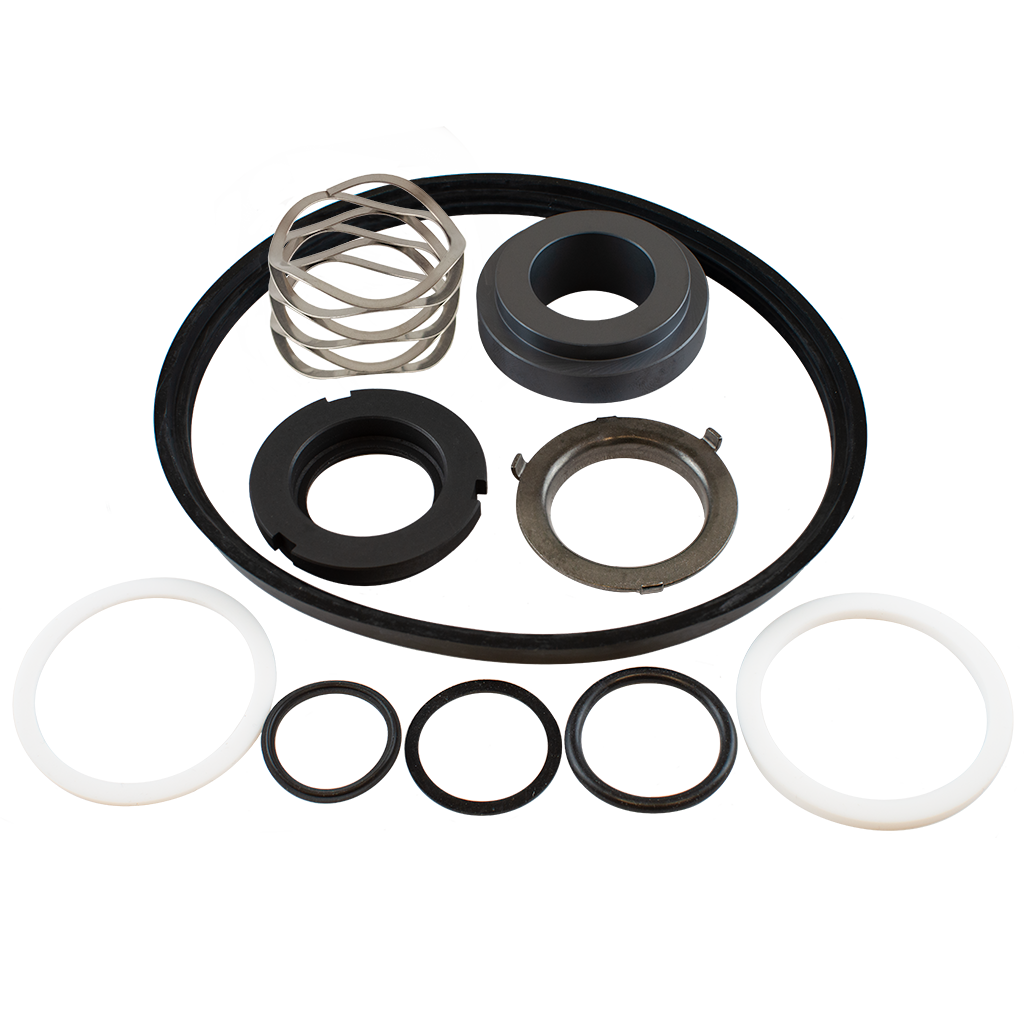

C+ Series Ultimate Seal kit:
- Casing gasket (EPDM)
- Carbon seal
- Carbon seal o-Ring (EPDM)
- Spring
- Cup
- Impeller nut gasket (EPDM)
- Impeller back gasket
