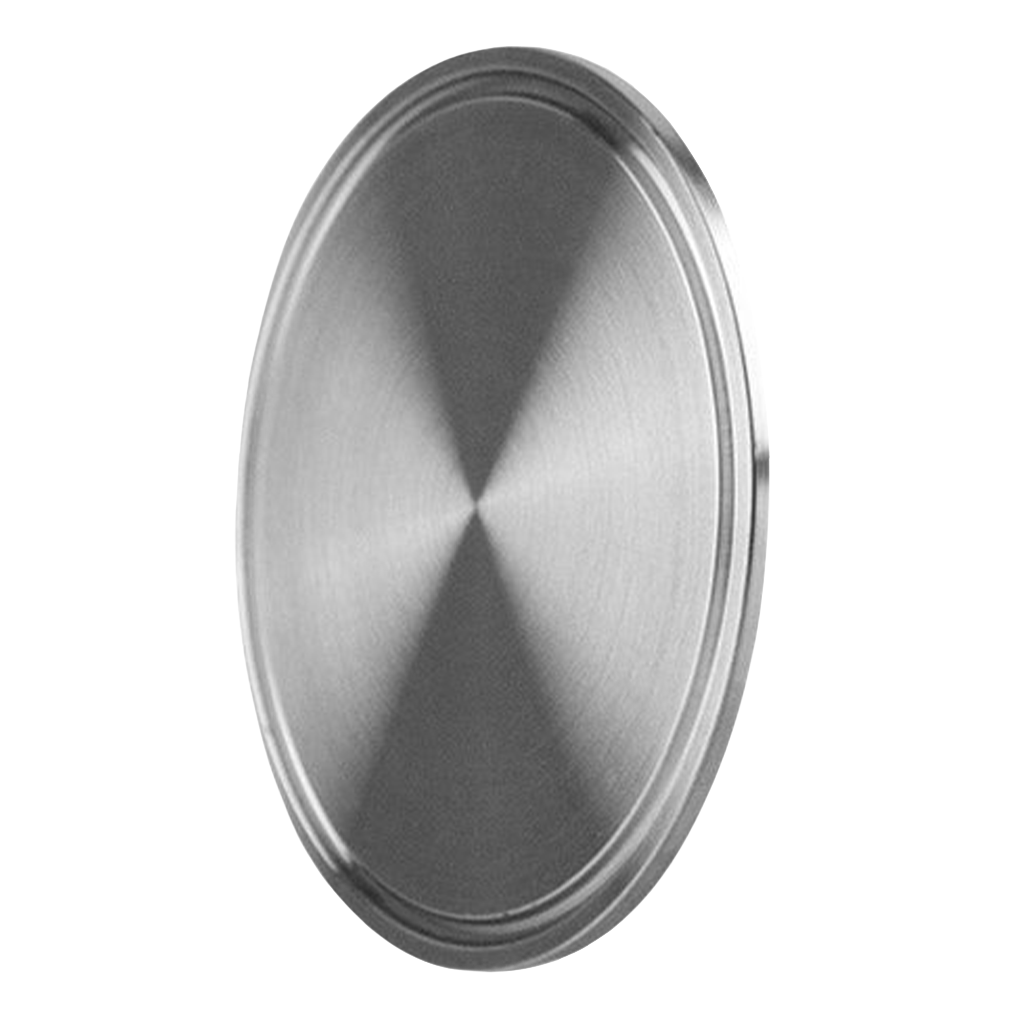

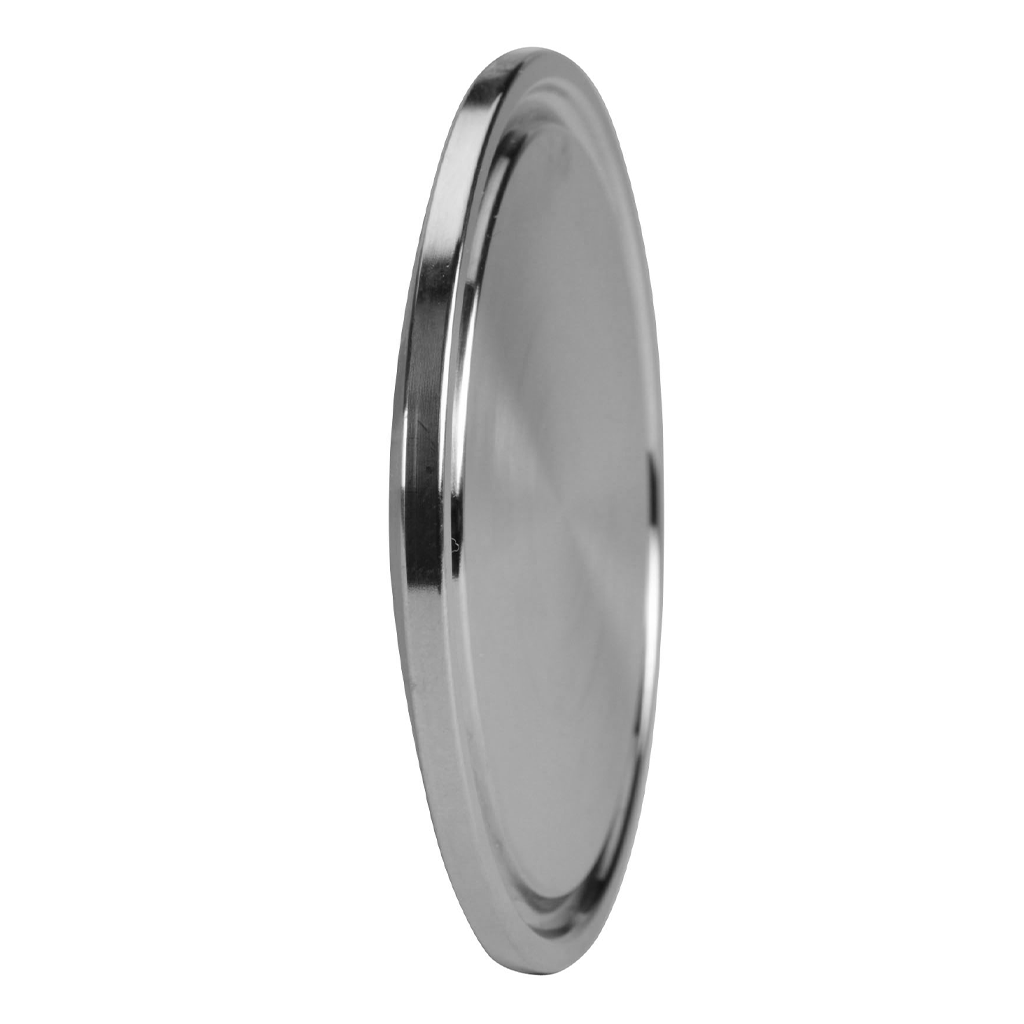

The Tri-Clamp Solid End Cap is a sanitary fitting designed for use with Tri-Clamp ferrules. It is constructed of 304 and 316L stainless steel, and is available in sizes ranging between 1/2" and 12". It is 3A certified for use in food and beverage processing industries.

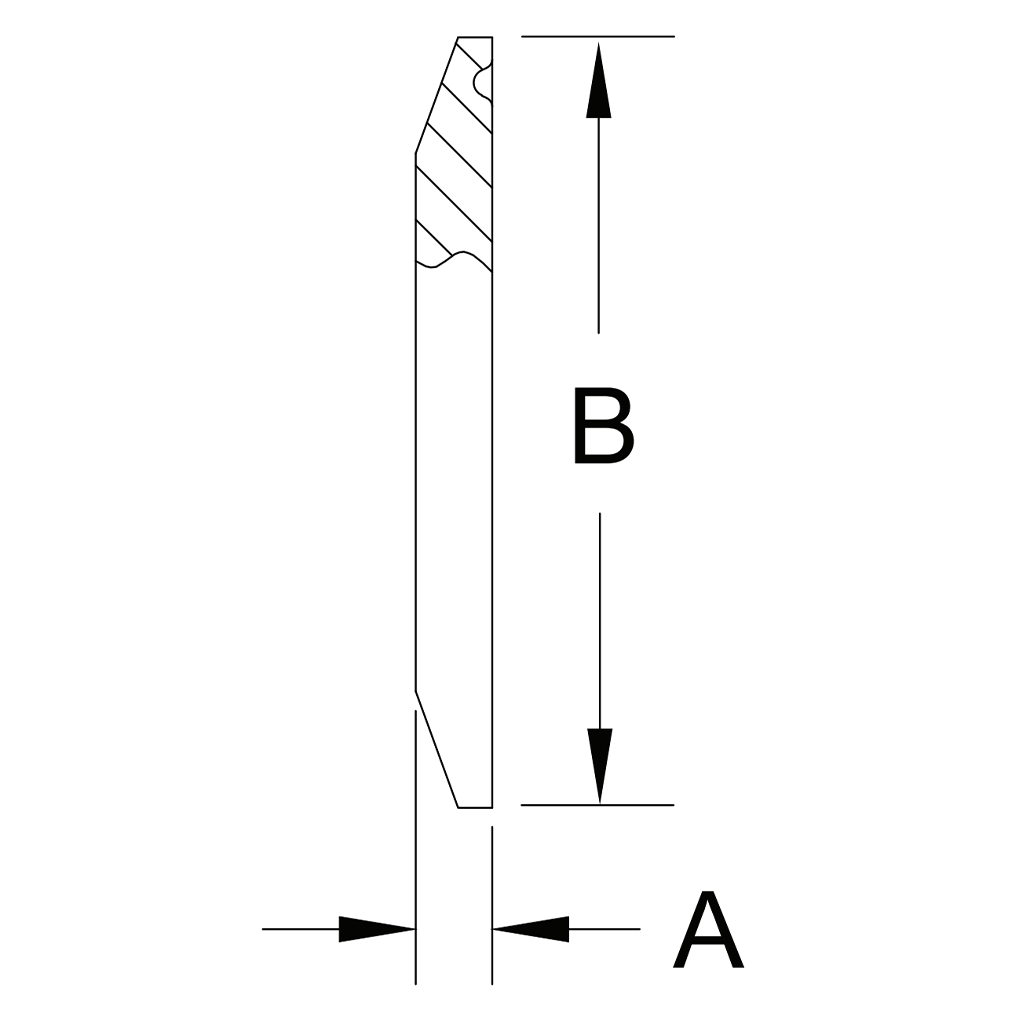

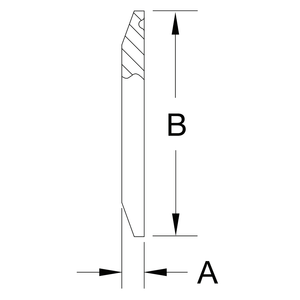

| Tube O.D. | A | B |
| 1/2" & 3/4" |
0.19 |
0.99 |
| 1" & 1-1/2" |
0.25 |
1.98 |
| 2" |
0.25 |
2.52 |
| 2-1/2" |
0.25 |
3.05 |
| 3" |
0.25 |
3.58 |
| 4" | 0.31 | 4.68 |
| 5" | 0.38 | 5.69 |
| 6" | 0.44 | 6.57 |
| 8" | 0.44 | 8.57 |
| 10" | 0.44 | 10.57 |
| 12" | 0.44 | 12.57 |
