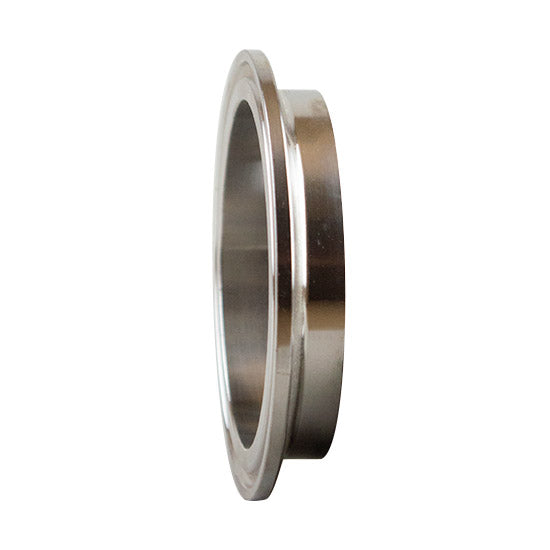

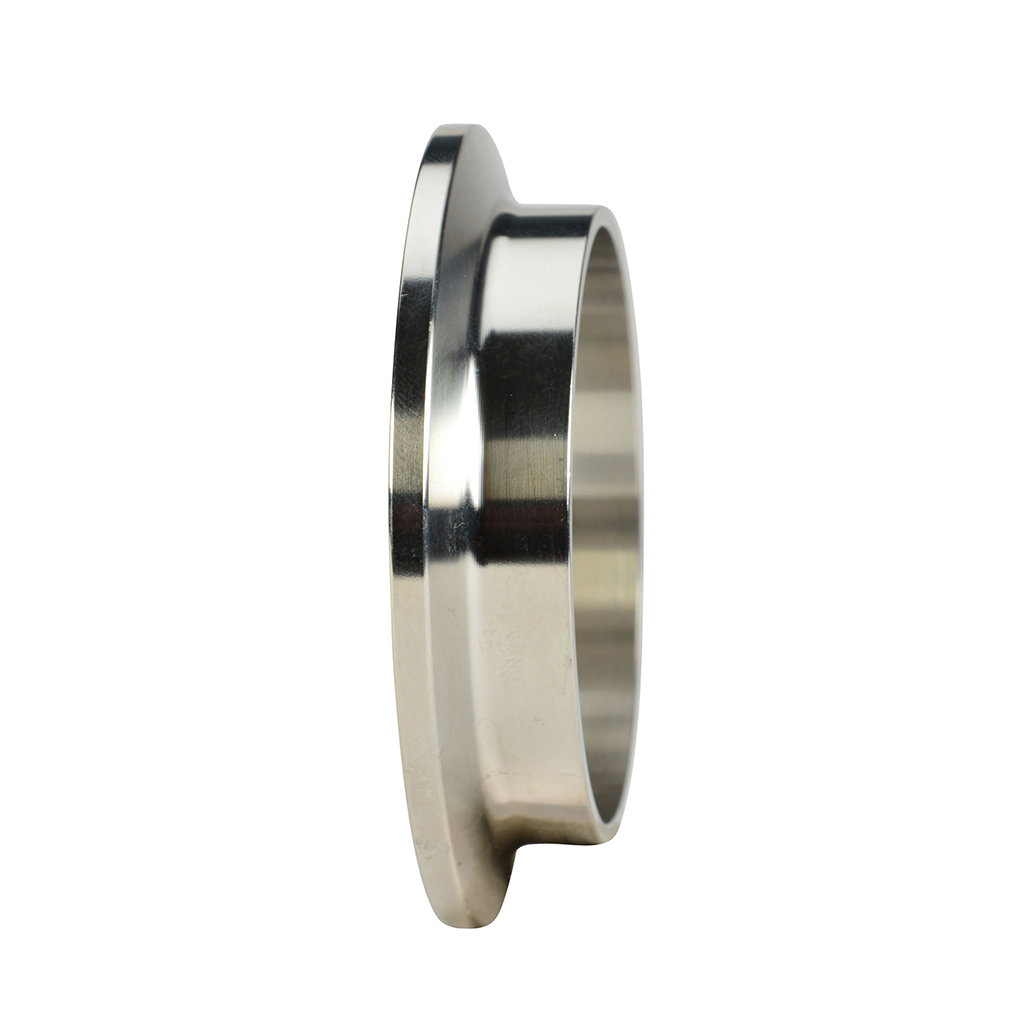

14WMP - Tri-Clamp Short Welding Ferrule

$4.28

SKU: FI/14WMP-.50-6

The 14WMP Tri-Clamp Short Welding Ferrule is a sanitary fitting with both a Tri-Clamp Ferrule and a butt-weld end. This ferrule is available in 316L and 304 SS, and a variety of Tri-Clamp sizes ranging from 1/2" up to 12". This fitting is 3A certified for use in sanitary environments.

Other sizes are available upon request. Please call with any inquiries.

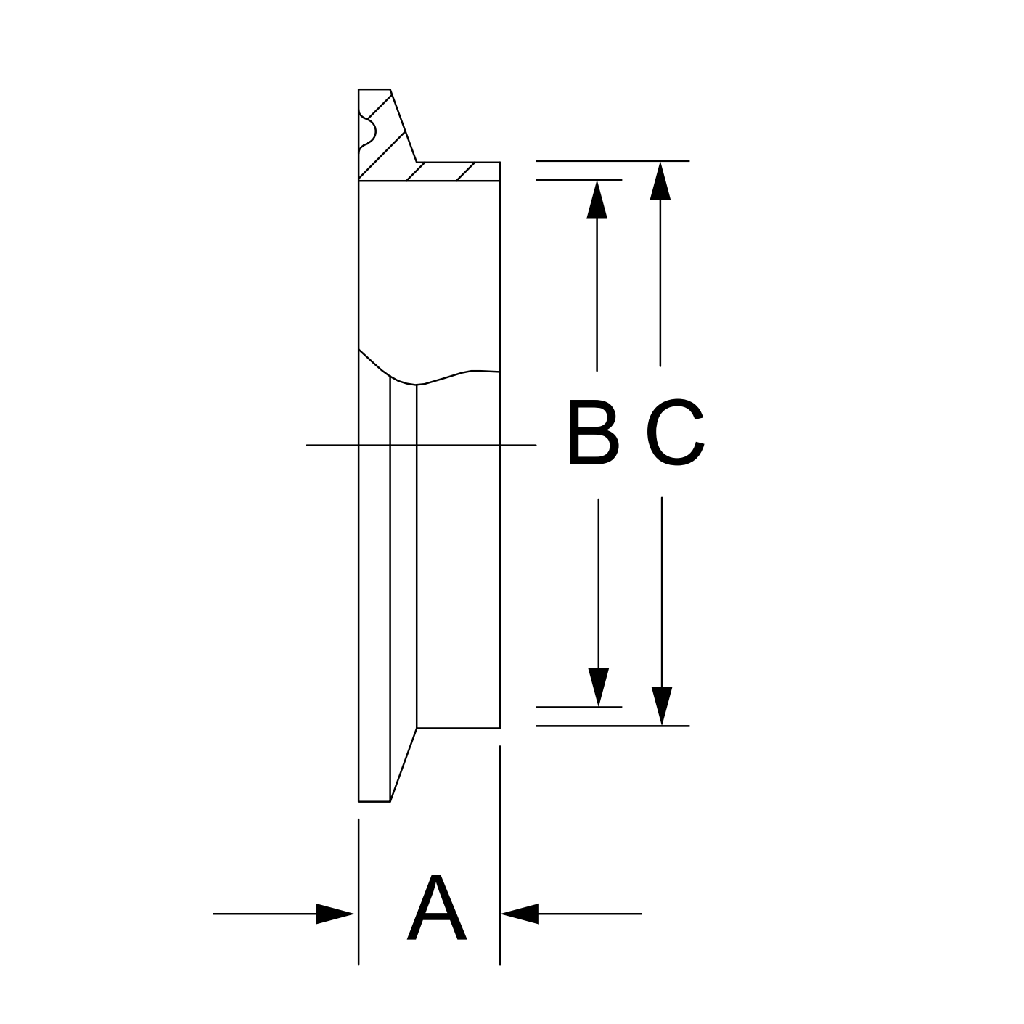

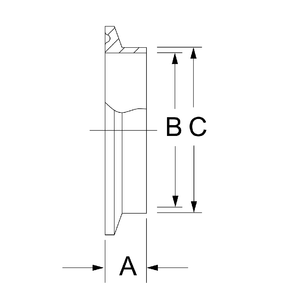

Tube O.D. A B
1/2" 0.50 0.37 0.50
3/4" 0.50 0.62 0.75
1" 0.50 0.87 1.00
1-1/2" 0.50 1.37 1.50
2" 0.50 1.87 2.00
2-1/2" 0.50 2.37 2.50
3" 0.50 2.87 3.00
4" 0.62 3.83 4.00
5" 0.75 4.83 5.00
6" 0.87 5.78 6.00
8" 0.87 7.78 8.00
10" 0.87 9.78 10.00
12" 0.87 11.78 12.00
