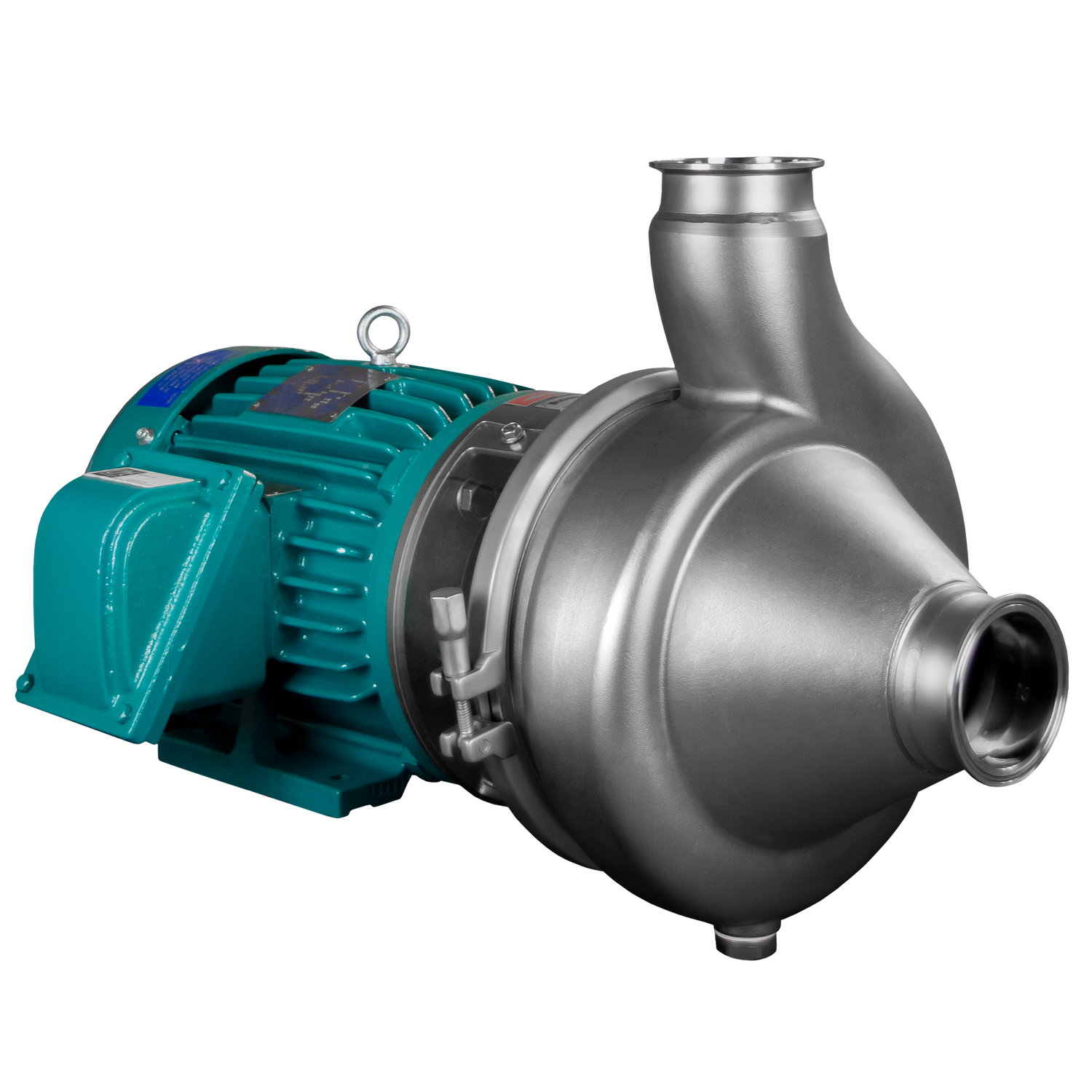

The RVN is a centrifugal pump fitted with a helicoidal impeller. The RVN is the perfect wine pump, but it can also find its use in breweries, distilleries, and other craft food applications. This pump is ideal for pumping liquids with semi-solids, specifically, mash and must. The explosion-proof RVN is the perfect distillery pump. It features the explosion-proof enclosure that is a must-have while also being gentle enough to handle your mash.
RVN is a range of close-coupled centrifugal pumps, characterized by compact design, high efficiency (>70%) and low energy consumption. It is made of a pump casing with drain port, helicoidal impeller, mechanical seal, lantern and shaft, connected to the motor shaft by mechanical compression. Thanks to the helicoidal shape of the impeller, the flow is optimized to avoid the obstruction of the pump, allowing solid particles to pass through without being damaged. The RVN centrifugal pump features an internal single mechanical seal; the stationary and rotary parts are silicon carbide, and the gaskets are EPDM.
The explosion-proof RVN is only available in three-phase power and is compatible with 460V and 230V. Single-phase motors are available upon request, please contact us for a quote.
The RVN 65 has 2 1/2" tri-clamp connections and features a 1 1/2 HP explosion proof motor.
The RVN 80 has 3" tri-clamp connections and features a 5 HP explosion proof motor.
