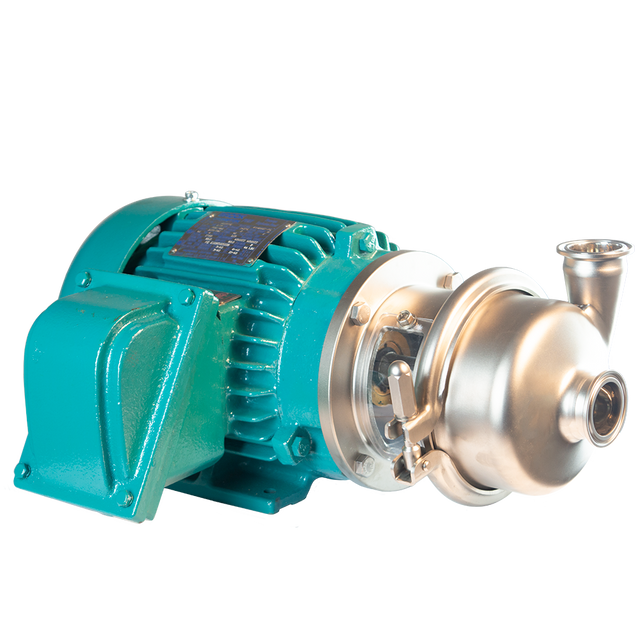

Hyginox SEN 20 Internally Sealed Portable Pump
The INOXPA HYGINOX SEN-20 pump is perfect for busy distilleries. A close-coupled, stainless steel centrifugal pump, the Hyginox series comes with a long-lasting internal mechanical seal for minimal maintenance and increased durability. These internal seals help reduce product build-up and leaking and improve reliability, providing a pump that just keeps going without hassle or fuss. The explosion proof motor makes this pump suitable for use with high proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making alcohol blended drinks, and for herbal extractions.
The explosion-proof Sen 20 is only available in three-phase power and is compatible with 460V and 230V. Single phase motors are available upon request, please contact us for a quote.
The motor is a NEMA 7/9 Frame C-face Premium Efficiency Explosion Proof Motor with Cast iron construction. It is UL/CSA Approved for Class 1 Group D and Class 2 Groups F,G.
| Horsepower | Max Pressure (ft. head) | Max Flow (gpm) |
| 3 | 80 | 125 |
| 5 | 98 | 150 |
| 7 1/2 | 120 | 160 |
| 10 | 145 | 185 |
INOXPA Hyginox SEN 20 Specs:
Inlets: 2" Tri-clamp
Outlets: 1 1/2" Tri-clamp
Seal: Single Mechanical Internal seal Carbon/Silicon Carbide
Nominal pressure: 75 PSI
