F030 Intrinsically Safe Batch Controller

$1,262.25

SKU: FM/F030-AHUOTPDXIZB

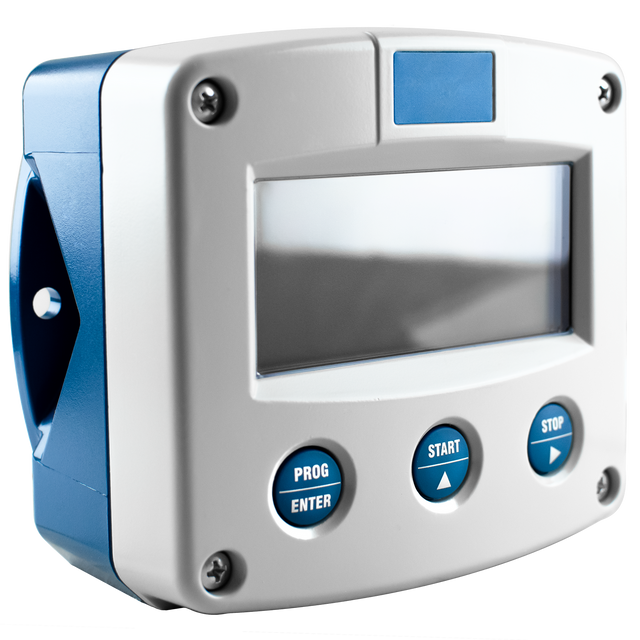

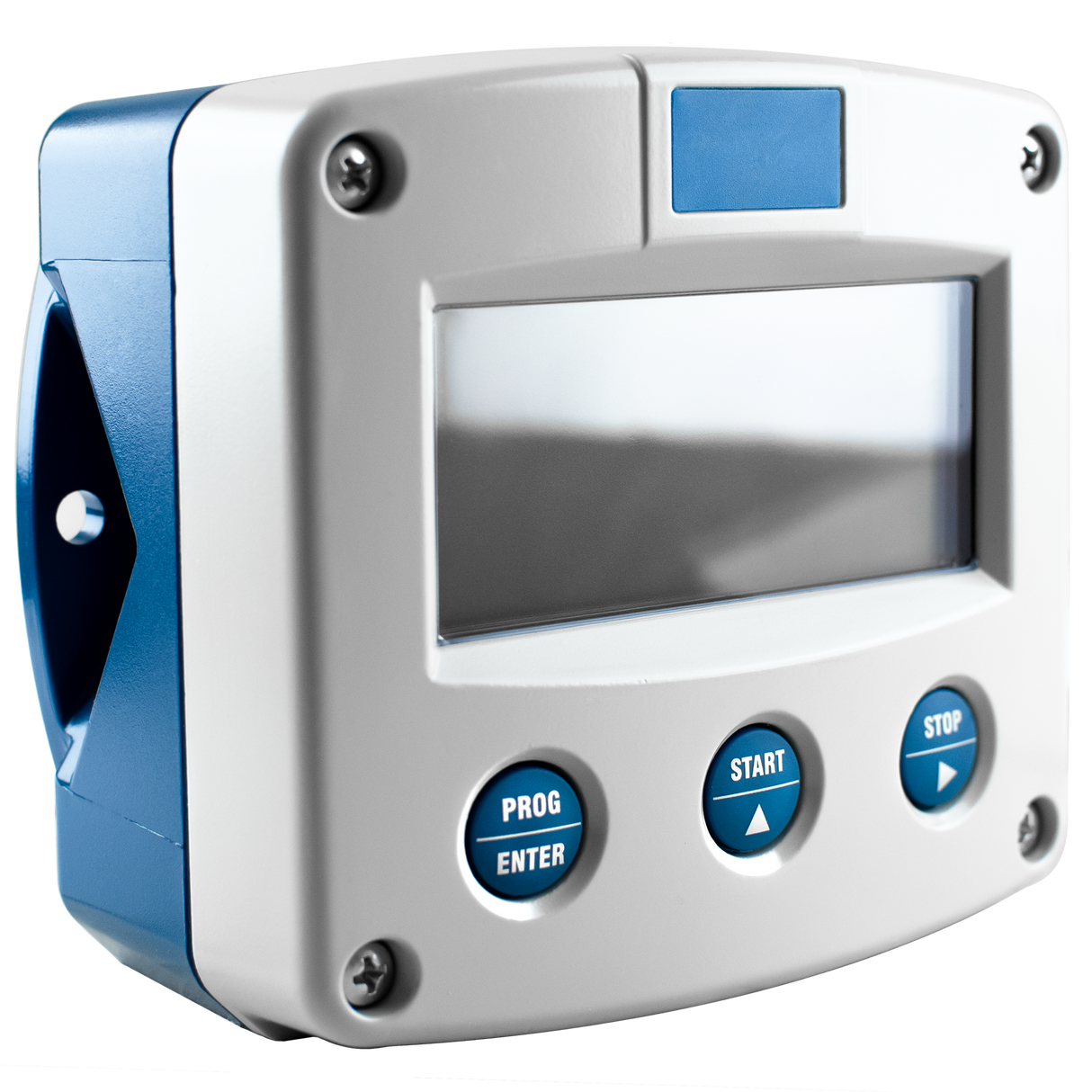

The F030 Batch controller by Fluidwell is a straightforward, user-friendly unit. This controller is designed to be intuitive, accurate, and easy to read, use, and customize. This batcher is perfect for repeat batches; the self-learning overrun correction and stored setting will allow you to execute a perfect run every time.  EEPROM memory is used to store your data and settings; back-ups occur every minute. A password-protected operator menu allows you to program your device to fit your application, including on-screen engineering units. The white adjustable backlight and large display numbers ensure that the numbers are easily legible no matter the lighting or conditions. There is a wide selection of other options available that increase the capabilities of this model, including Intrinsic Safety, ATEX, and Explosion Proof. This model is approved for use in hazardous environments.


Features

  • Large display
  • Automatic self-learning overrun correction
  • Temperature range: -40°C up to +80°C (-40°F up to 176°F)
  • Day total: resettable 7 digits
  • Accumulated total: non-resettable 11 digits
  • Adjustable white backlight
  • ATEX, IECEx, FM and CSA certified
  • Digital Output: Single passive transistor output
  • Input: (0)4 - 20mA input
  • Enclosure: Aluminum field mount - Cable entry: 3 x 1/2”NPT
