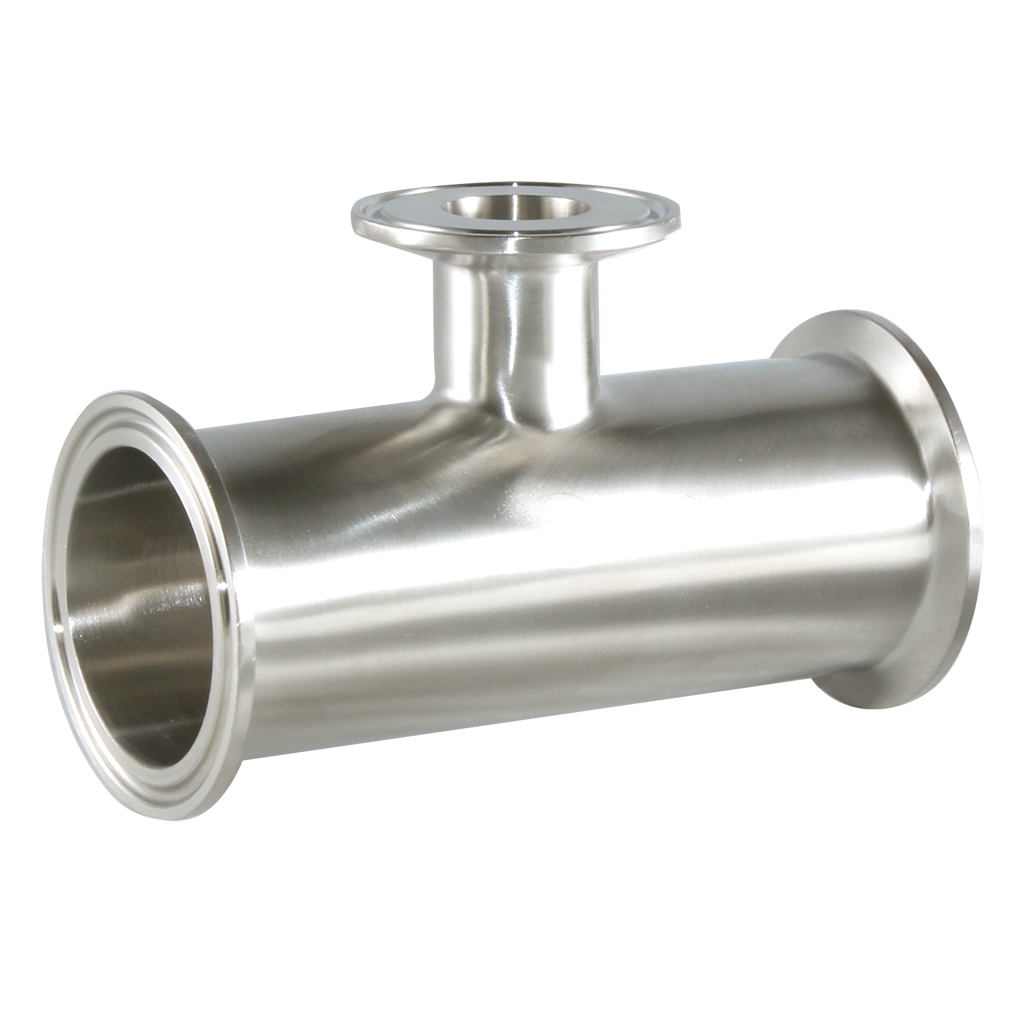

The 7RMP Tri-Clamp Reducing Tee is a sanitary fitting featuring a branch with a smaller Tri-Clamp ferrule. The reducing tee is made of 316L or 304 stainless steel and is 3A certified.

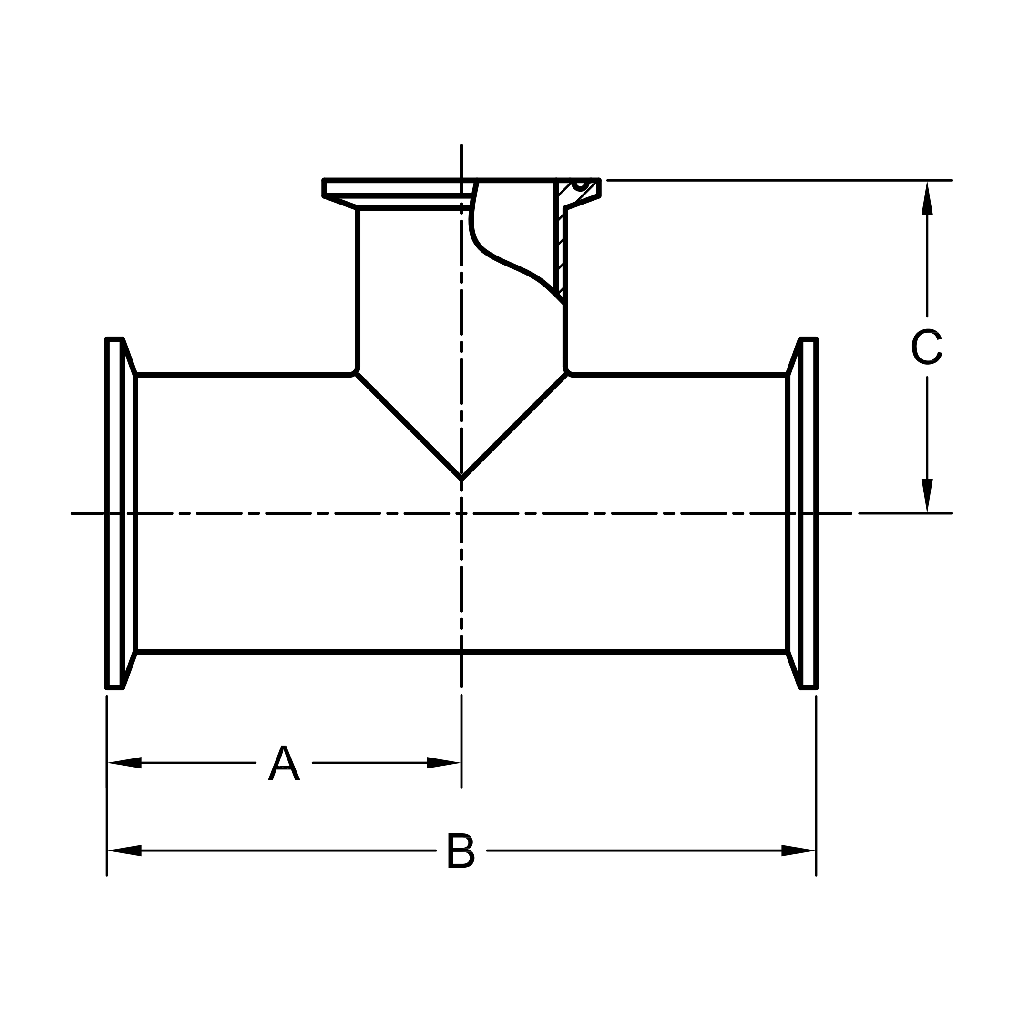

| Tube O.D. | A | B | C |
| 3/4" X 1/2" | 2.50 | 5.00 | 2.50 |
| 1" X 1/2" | 2.62 | 5.25 | 2.62 |
| 1" X 3/4" | 2.62 | 5.25 | 2.62 |
| 1-1/2" X 1/2" | 2.87 | 5.75 | 2.87 |
| 1-1/2" X 3/4" |
2.87 | 5.75 | 2.87 |
| 1-1/2" X 1" | 2.16 | 4.31 | 1.87 |
| 2" X 1/2" | 3.37 | 6.75 | 3.12 |
| 2" X 3/4" | 3.37 | 6.75 | 3.12 |
| 2" X 1" | 2.56 | 5.12 | 2.13 |
| 2" X 1-1/2" | 2.56 | 5.12 | 2.41 |
| 2-1/2" X 1" | 2.84 | 5.69 | 2.38 |
| 2-1/2" X 1-1/2" | 2.84 | 5.69 | 2.66 |
| 2-1/2" X 2" | 2.84 | 5.69 | 2.81 |
| 3" X 1" | 3.09 | 6.19 | 2.62 |
| 3" X 1-1/2" | 3.09 | 6.19 | 2.91 |
| 3" X 2" | 3.09 | 6.19 | 3.06 |
| 3" X 2-1/2" | 3.09 | 6.19 | 3.09 |
| 4" X 1" | 4.06 | 8.12 | 3.13 |
| 4" X 1-1/2" | 4.06 | 8.12 | 3.41 |
| 4" X 2" | 4.06 | 8.12 | 3.56 |
| 4" X 2-1/2" | 4.06 | 8.12 | 3.59 |
| 4" X 3" | 4.06 | 8.12 | 3.59 |
| 6" X 2" | 6.50 | 13.00 | 5.00 |
| 6" X 3" | 6.50 | 13.00 | 5.38 |
| 6" X 4" | 6.50 | 13.00 | 5.75 |
| 8" X 4" | 7.88 | 15.75 | 6.75 |
| 8" X 6" | 7.88 | 15.75 | 7.50 |
