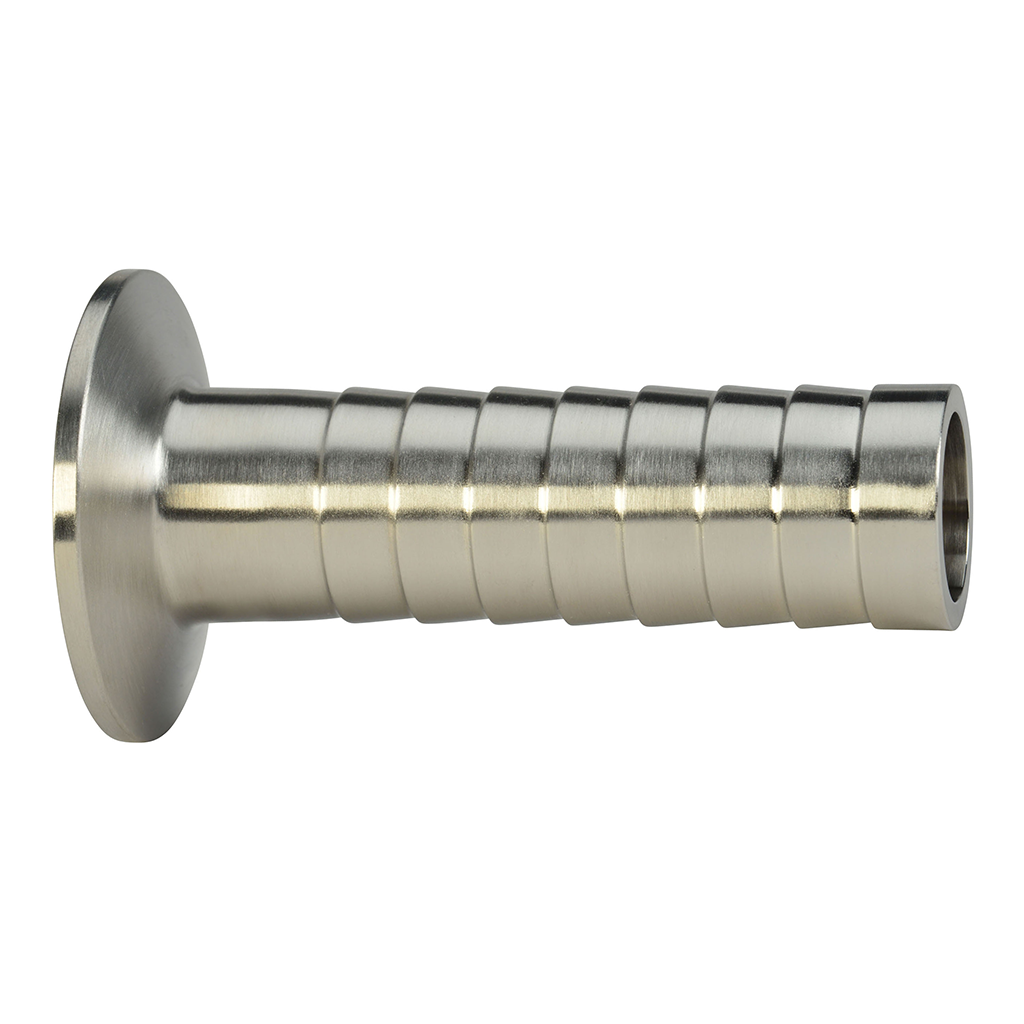

Designed for breweries, the 14MPHRL Brewery Style Hose Barb Adapter is a sanitary fitting that makes secure connections between Tri-Clamp ends and rubber hose. This adapter is available in sizes ranging from 1" to 4" and is constructed of 304 stainless steel.

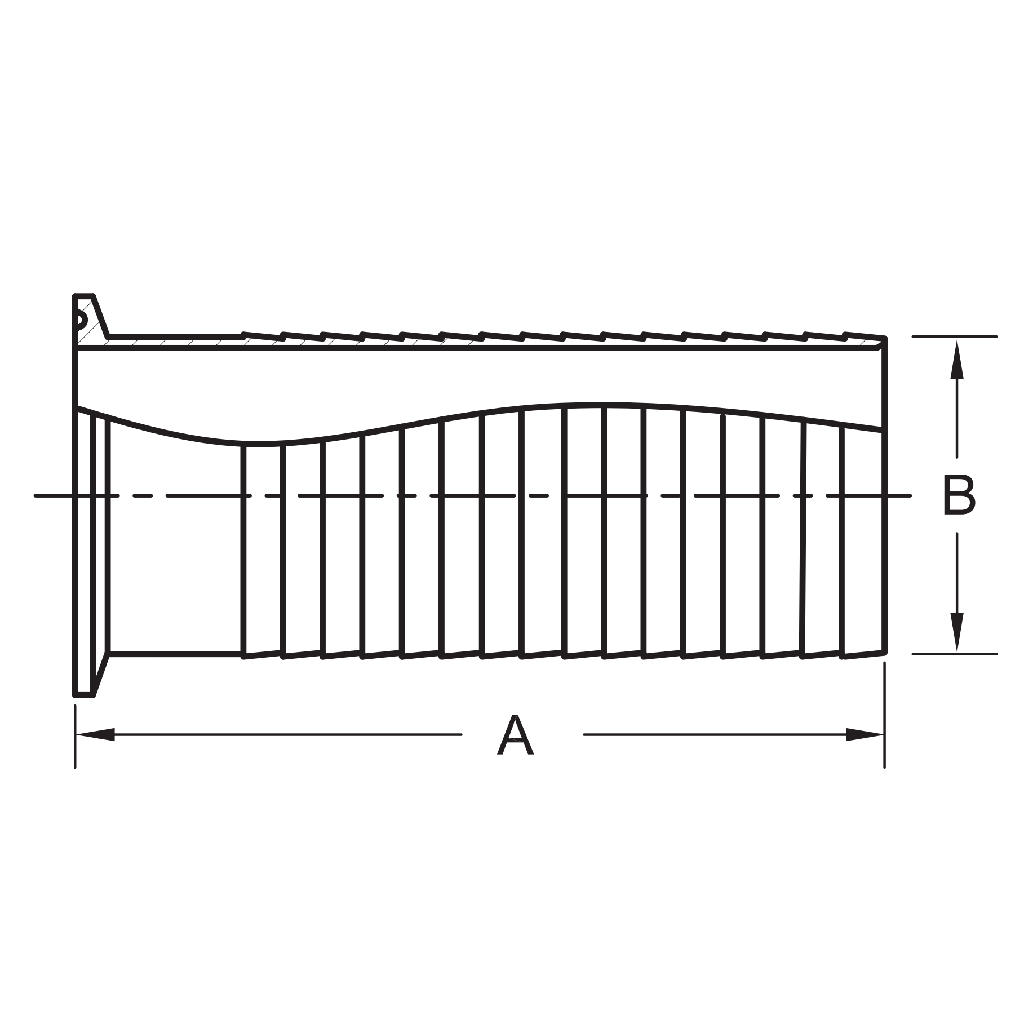

| Tube O.D. | A | B | Wall Thickness |
| 1" | 3.5 | 1.03 | 0.065" |
| 1-1/2" | 5.0 | 1.53 | 0.065" |
| 2" | 5.0 | 2.03 | 0.065" |
| 2-1/2" | 5.5 | 2.53 | 0.065" |
| 3" | 5.5 | 3.03 | 0.065" |
| 4" | 5.5 | 4.03 | 0.083" |
