CB+114M Quick Ship Portable Craft Brew Pump Assembly

$4,329.20

SKU: PP/CB+114M-1HP-115/1/60

The CB+ is a re-designed C-series centrifugal pump with an internal mechanical seal. This pump is designed specifically for craft brewing and distilling. It features an internal seal that allows for easy cleaning, prevents pooling on the seal, and permits greater seal pressure with less leaking. CPE CB+ pumps have the unique High-Clean cartridge seal; the seal is encased making it more sanitary and less prone to breakage. It also includes the same collar and threaded impeller nut as the C+ pump. The collar clamps down evenly on all sides of the drive shaft, preventing the minor wobble that can occur from set screwed shafts. The impeller pin is replaced with a threaded impeller nut that fully secures the impeller in place. Two specialized gaskets are used to seal the shaft and to allow a CIP procedure to clean behind the impeller. Together, the collar and bolted impeller reduce rattling at lower speeds.

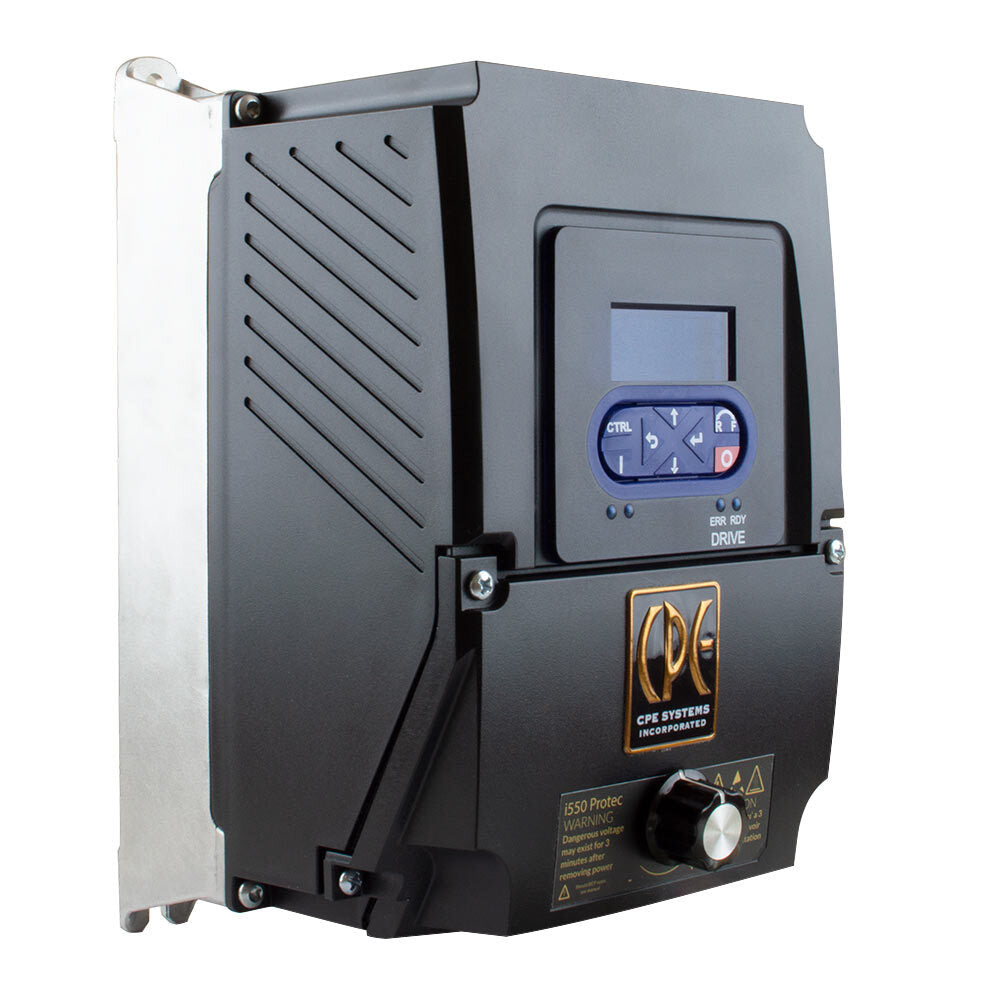

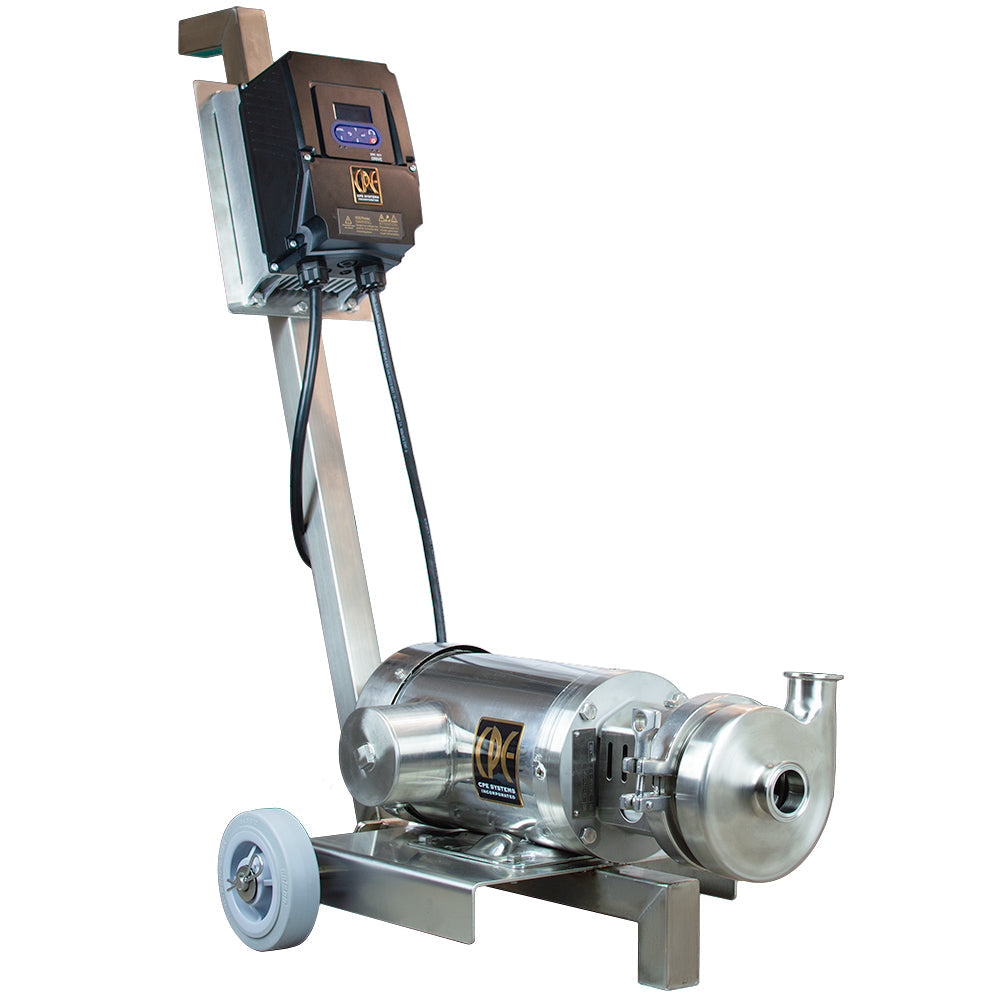

The CB+ pump head is attached to one of our efficient stainless steel washdown motors, mounted on a Canadian-made stainless steel cart, and controlled with a NEMA 4X variable speed control (VFD).

Technical Specifications

Features:

  • 1 1/2" X 1 1/2" Tri-Clamp connections
  • Stainless steel washdown motor
  • 316L stainless steel construction (wetted parts)
  • 304 stainless steel adapter
  • Canadian-made stainless steel cart
  • NEMA 4X VFD
  • High-Clean cartridge seal

Horsepower

1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.

1 1/2 HP: The capacity of this pump is 100 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (10 - 15 BBL) and estate wineries.

2 HP: The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.
