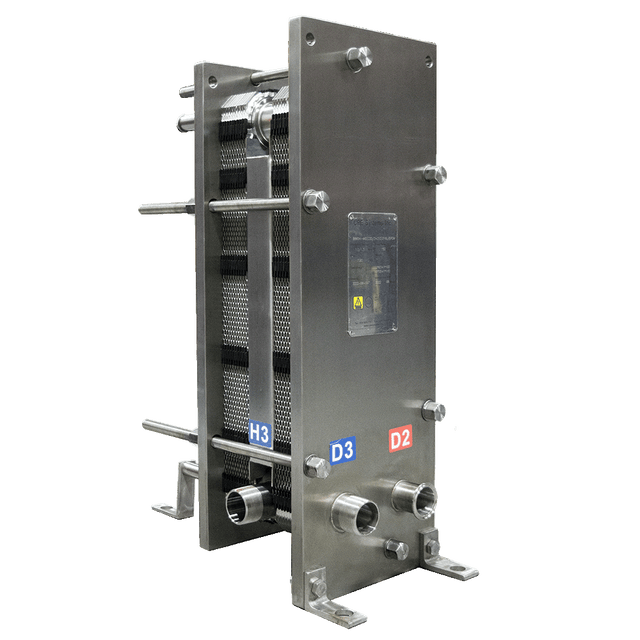

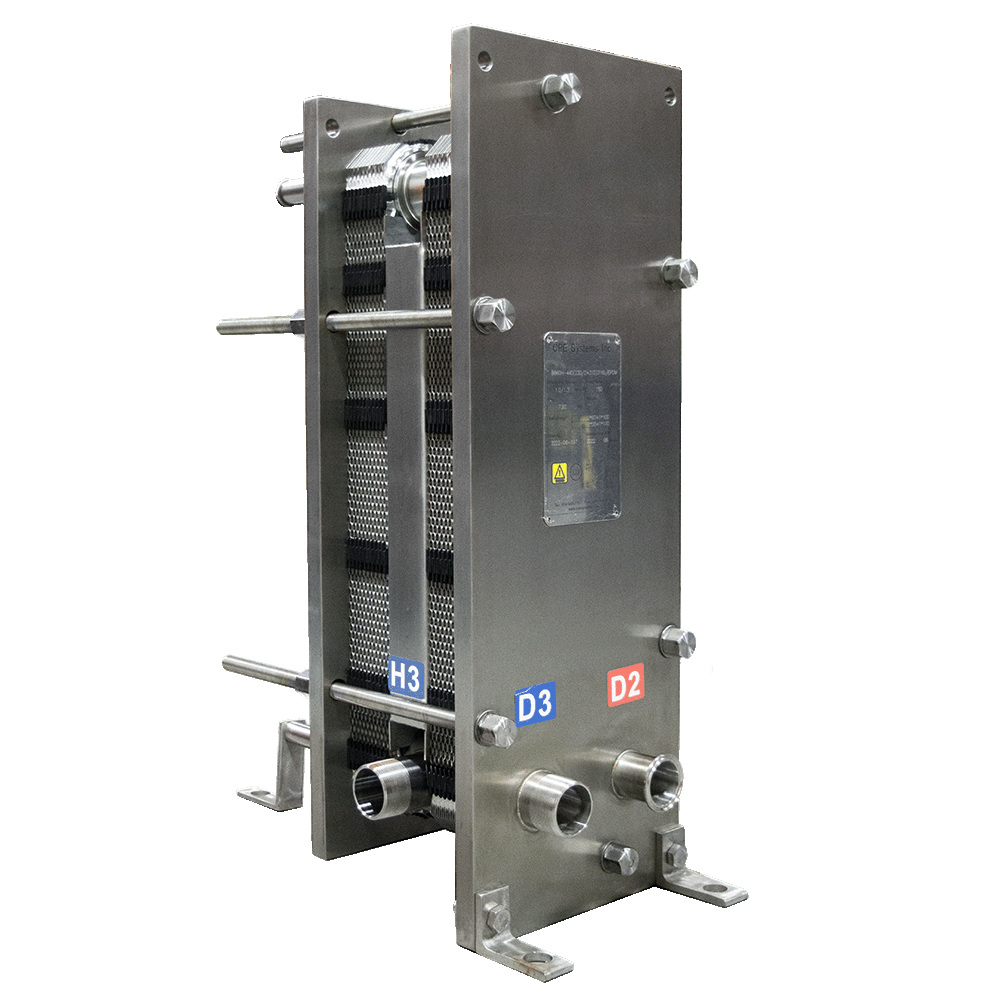

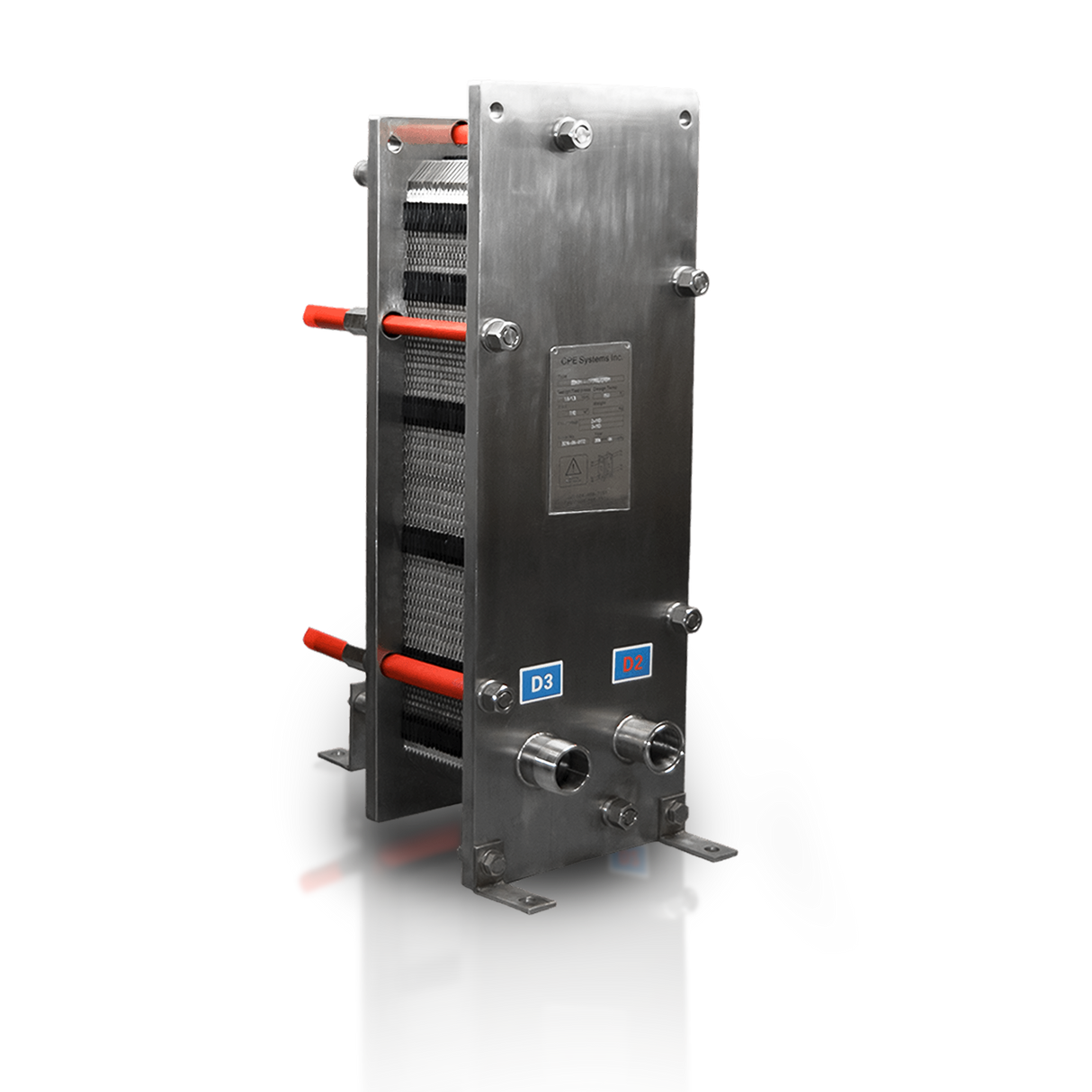

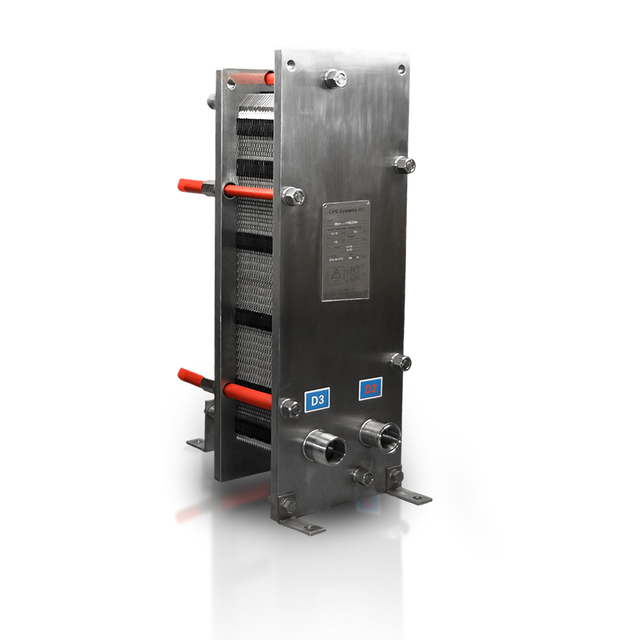

CPE60H-XXD Stainless Steel Plate Heat Exchanger

$6,165.00

SKU: HX/CPE60H-37D-SS

HEAT EXCHANGER / WORT CHILLER

The CPE60H-XXD stainless steel brewery plate heat exchanger is made for cooling wort from 200° F to 70° F using city water at around 50° F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.

Technical Specifications

Frame Material: Stainless Steel

Surface Area: From 34 ft² to 177 ft²

Plates: 0.5mm 316ss,

Gaskets: EPDM clip-on gaskets

Design: Dual pass flow

Connections: 2" Water connections X 2" Tri-Clamp Wort connections

Frame: 18L Frame length, Max plates: 112
