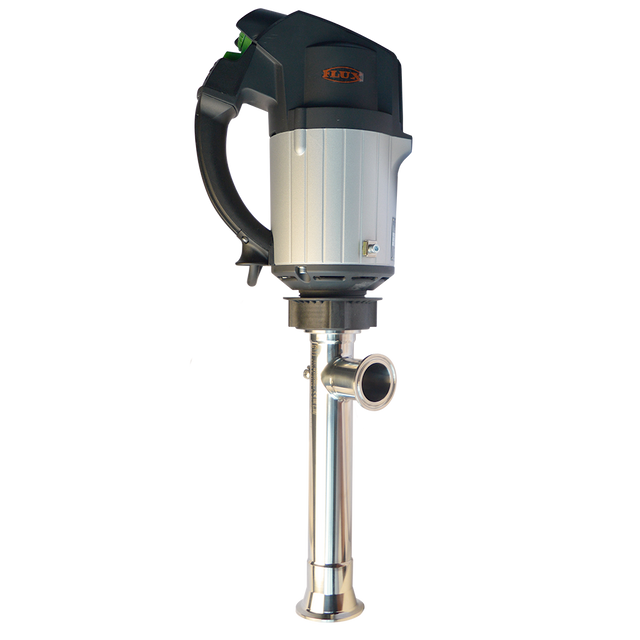

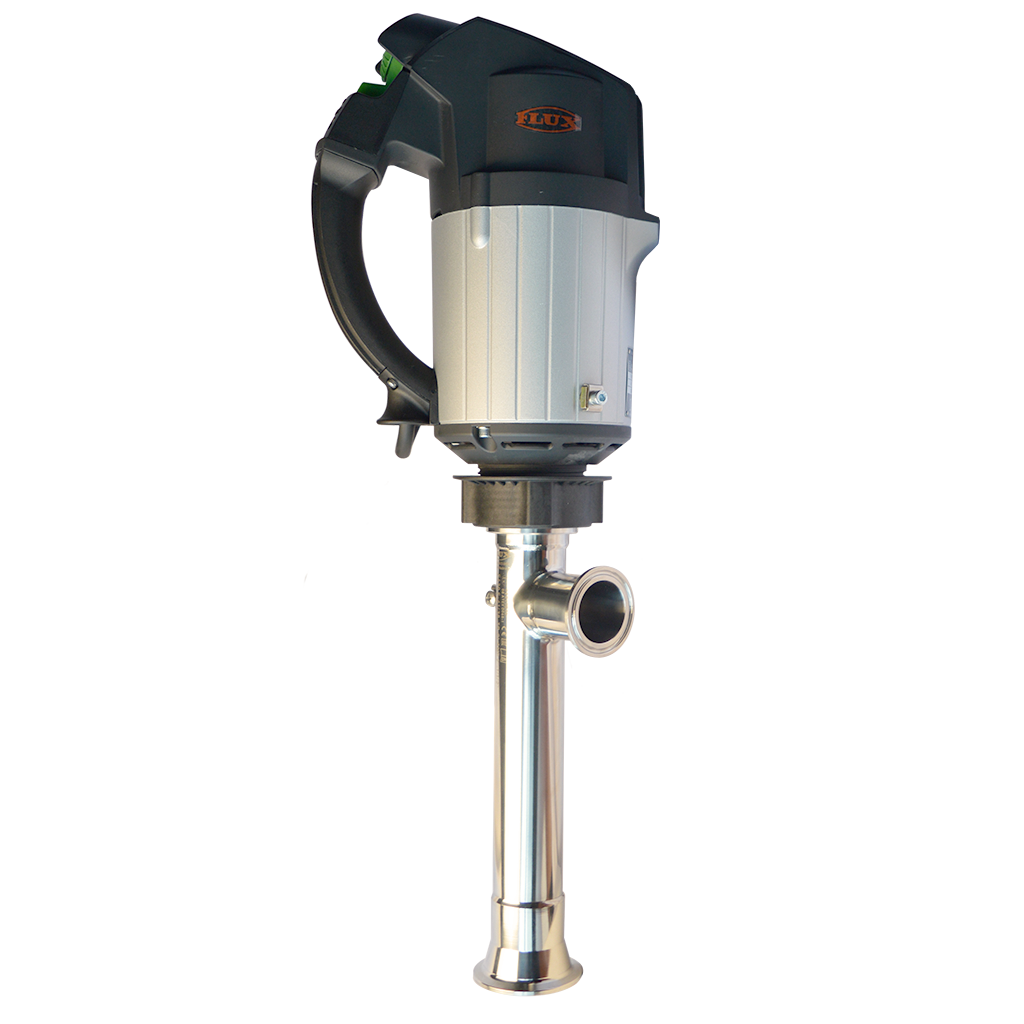

The High Proof Alcohol Portable Variable Speed Pump Assembly is one of the only variable speed explosion-proof alcohol pumps of its scale on the market. Made for moving small batches of neutral grain spirits in craft distilleries, it provides easy knob-based speed controls that other NGS pumps do not have.
Features:
- Explosion-proof
- Variable Speed
- 220V single phase electric, 230 Watts
- 1 ½” Tri-clamp discharge
- 2” Tri-clamp inlet
- 316 SS / PTFE Fitted / ETFE impeller
- Up to 1000 CPS
- Up to 42 GPM (based on water)
- Up to 30’ head
- Easy to clean – top pull-out
- 220-volt variable speed motor with no-volt release safety circuit
- Tested and certified according to ATEX-Directive 94/9/EC,
category 2 for use in Zone 1
Seals:
Standard seal
- Material: PTFE / FKM
Ultra low-temperature seal
- Designed for ethanol extraction and can handle ultra-low temperatures
- Material: FEP / PTFE
