CPE C216MD Explosion Proof Portable Pump Assembly
The C216 centrifugal pump was designed with the processor in mind and is expressed in the practical design of the C-Series Pump and it is reflected in the high standards of performance attained by thousands of units that are presently in service in every phase of the processing industries. The explosion-proof motor makes this pump suitable for use with high-proof alcohol, ethanol, and other flammable liquids. It is ideal for use in distilling, making alcohol blended drinks, and for herbal extractions.
These are the most durable pumps on the market! They are designed specifically for the tough conditions found in food and beverage production. The C216 model is a workhorse pump that will give you years of excellent service and when needed replacement parts are interchangeable with most major brands of sanitary C series pumps.

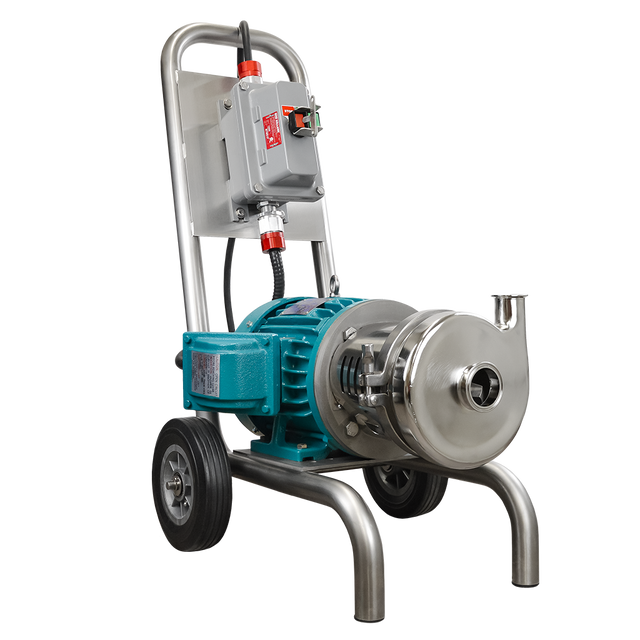

The C216 explosion-proof assembly features a C216 pump head, an explosion-proof motor, a stainless steel heavy-duty cart, and an explosion-proof starter. The motor is a NEMA 7/9 Frame C-face Premium Efficiency Explosion Proof Motor, it is UL/CSA Approved for Class 1 Group D and Class 2 Groups F,G. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy duty wheels. The starter has a NEMA 7/9 enclosure and has start/stop pushbuttons. Explosion-proof pumps are shipped without plugs. The customer must install a plug that meets local regulations and electrical code.
The explosion-proof C216 is only available in three-phase power and is compatible with 460V and 230V. Single-phase motors are available upon request, please contact us for a quote. All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.
CPE C216MD Portable Pump Features
- 2" X 1 1/2" Tri-clamp connections
- All stainless steel construction
- 25 ft cord
- Explosion-proof NEMA 7/9 starter control
- Stainless steel cart
Seal Options:
- "D" Single mechanical external seal
- "DG" Single mechanical external seal with a replaceable ceramic seat
- "F" Single mechanical external seal with water cascade
3 HP The capacity of this pump is 150 GPM and it will put out 100 ft of head pressure
5 HP The capacity of this pump is 150 GPM and it will put out 125 ft of head pressure
7 1/2 HP: The capacity of this pump is 200 GPM and it will put out 175 ft of head pressure
