The CPE C114 Portable Pump is perfect for systems up to 30 barrels (depending on the application). These are the most durable pumps on the market - and every brewer will tell you that a reliable pump is a must-have for production to run smoothly. The whole process relies on a pump that will transfer product from tank to tank without hassle.
The C-series centrifugal pumps are the most common pump used in Microbreweries and Craft Breweries. These pumps will give you years of excellent service and when needed replacement parts are interchangeable with most major brands of sanitary C-series pumps. Our pumps come with stainless steel washdown motor that makes cleaning easier and quicker, reducing the issues caused by spillage.
Our Portable Pump Systems are designed specifically for the tough conditions found in food and beverage production. Our carts are custom designed and built in Canada. They are made completely of stainless steel with non-marring heavy-duty wheels. Move through your production days smoother and more efficiently with a CPE Portable Pump.

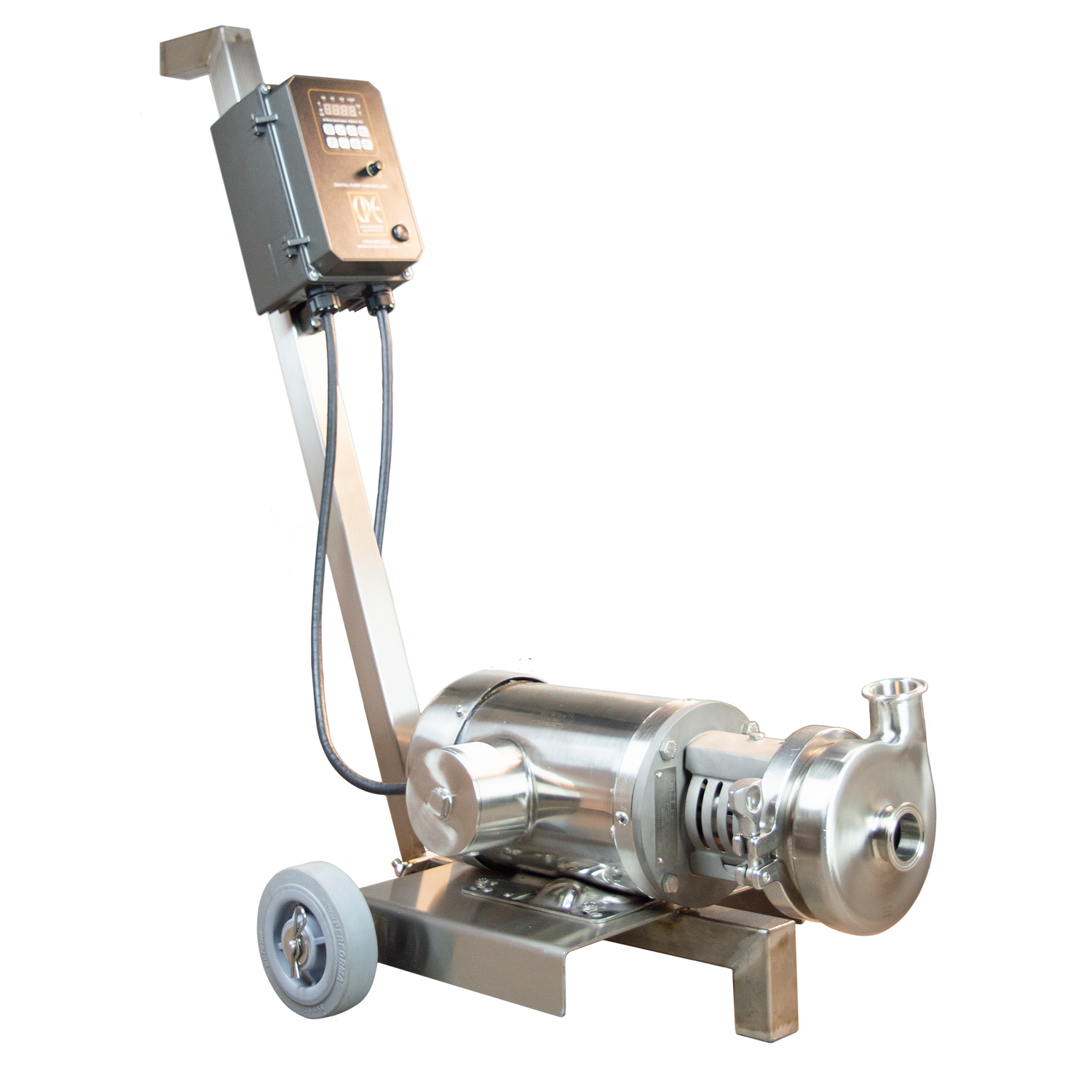

This is a Fast Track C114MDG 1 HP assembly with 115V single-phase power and a NEMA 4X VFD. All components for this pump are in stock and this assembly will ship out within 7 business days.
All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.
Technical Specifications
Features:
- 1 1/2" X 1 1/2" Tri-clamp connections
- Stainless steel washdown motor
- 316L stainless steel construction (wetted parts)
- 304 stainless steel adapter

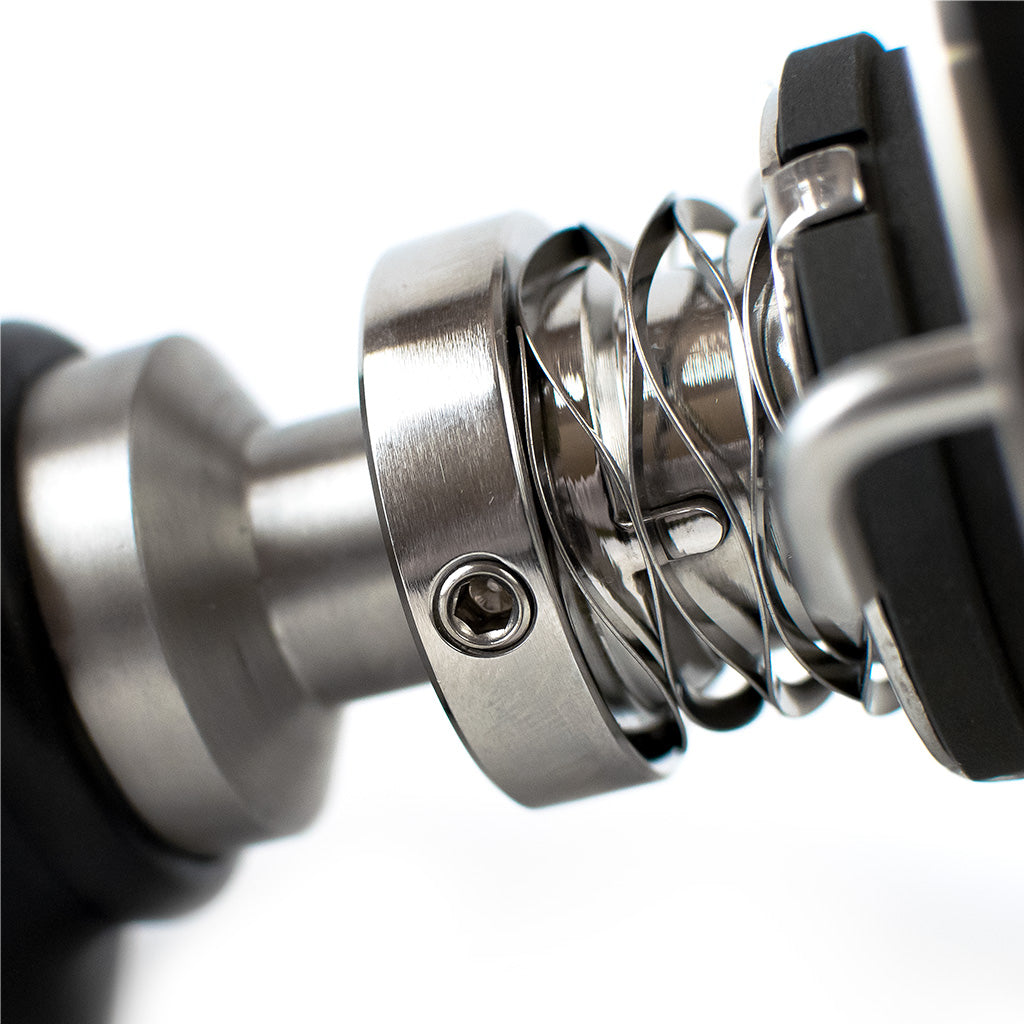

- External mechanical seal
- Canadian made stainless steel cart

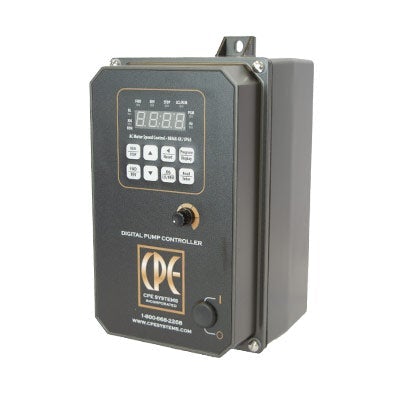

- NEMA 4X VFD
- "DG" Single mechanical external seal
- 1 HP motor
- 115 Volt Single Phase
Horsepower
1 HP: The capacity of this pump is 75 GPM and it will put out 65 ft of head pressure, ideal for microbreweries (5 - 10 BBL) and estate wineries.
