The C+114MD is the original C-series centrifugal pump re-imagined. It has kept the original casing design and popular external mechanical seal options, however it features a collar that clamps down on the drive shaft over a full 360 degrees removing the minor wobble that can occur from set screwed shafts. The impeller pin was also replaced with a threaded impeller nut that fully secures the impeller in place; there are two specialized gaskets to seal the shaft and to still allow a CIP procedure to clean behind the impeller. The collar and bolted impeller reduce rattling sounds at lower speeds.

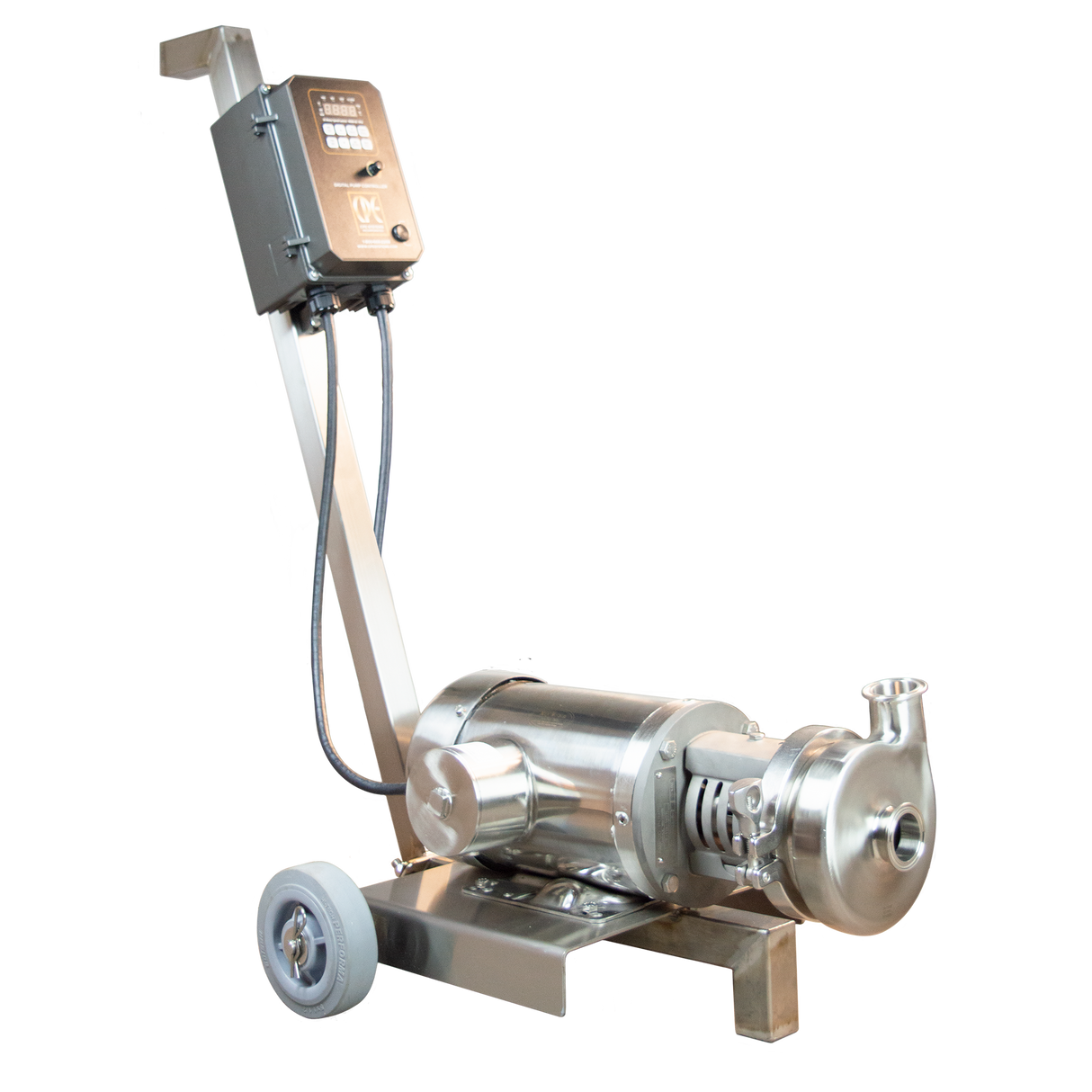

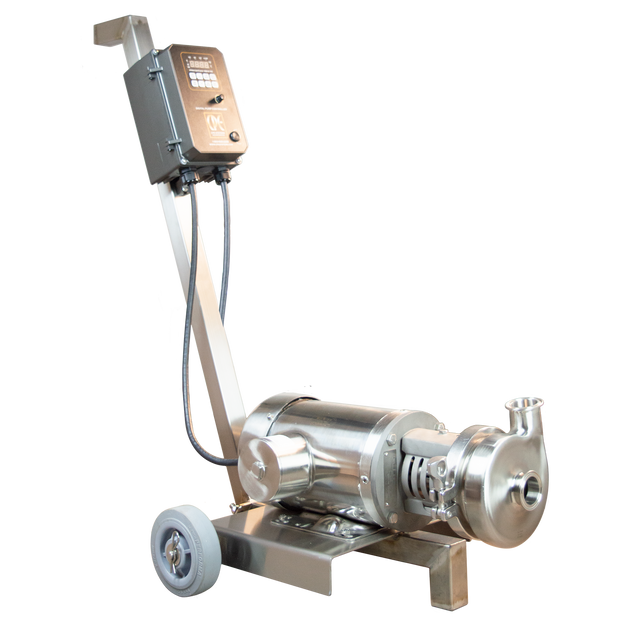

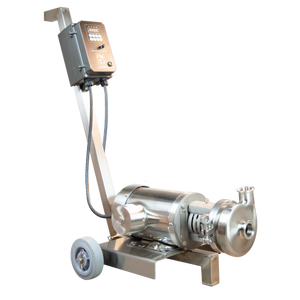

The C+114 pump head is attached to our stainless steel washdown motor, mounted on a Canadian-made stainless steel cart and fitted with a NEMA 4X variable speed control (VFD).
This is a Fast Track C+114MD 2 HP assembly with 230V three-phase power and a NEMA 4X VFD. All components for this pump are in stock and this assembly will ship out within 7 business days.
All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.
Features:
- 1 1/2" X 1 1/2" Tri-clamp connections
- Stainless steel washdown motor
- 316L stainless steel construction (wetted parts)
- 304 stainless steel adapter
- External mechanical seal
- Canadian made stainless steel cart
- NEMA 4X VFD

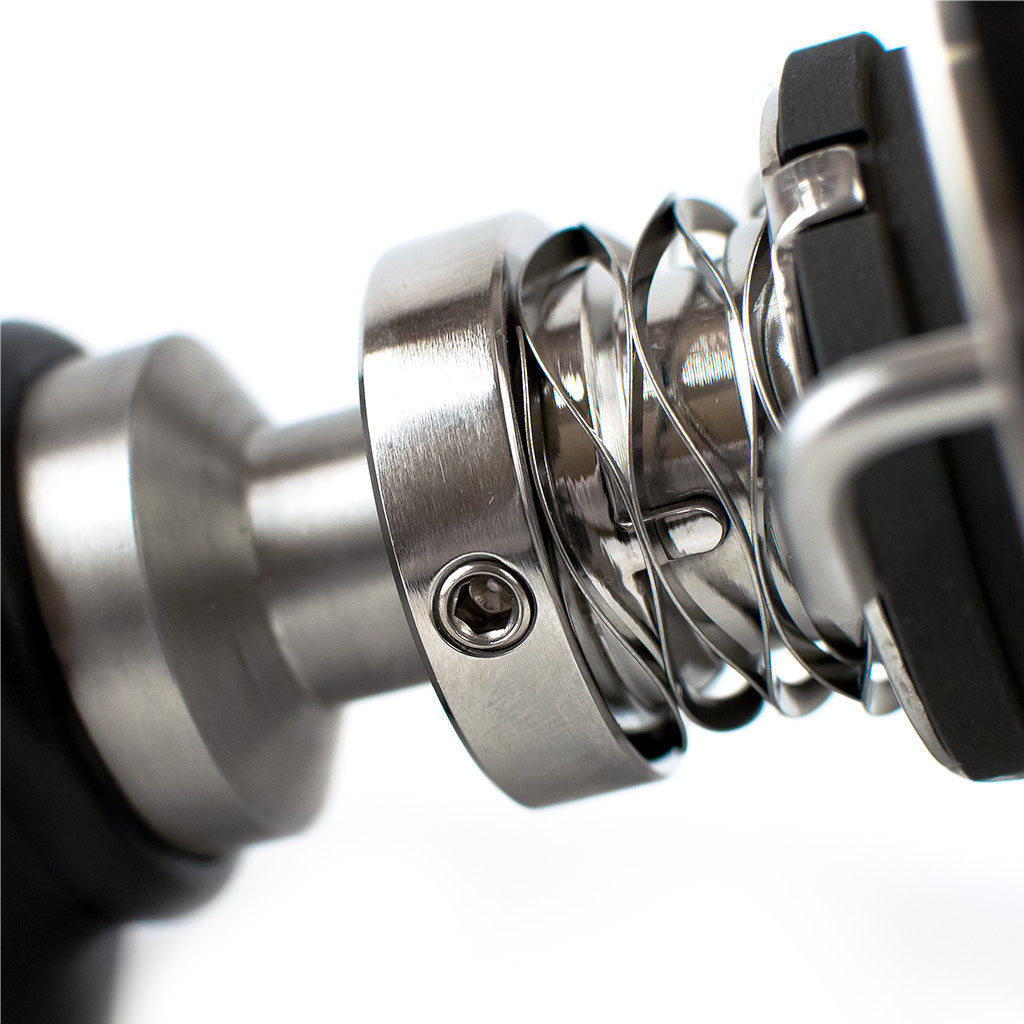

- "D" Single mechanical external seal
- 2 HP motor
- 230 Volt Three Phase
Horsepower
2 HP: The capacity of this pump is 125 GPM and it will put out 75 ft of head pressure, ideal for microbreweries (> 15 BBL) and larger estate wineries.
