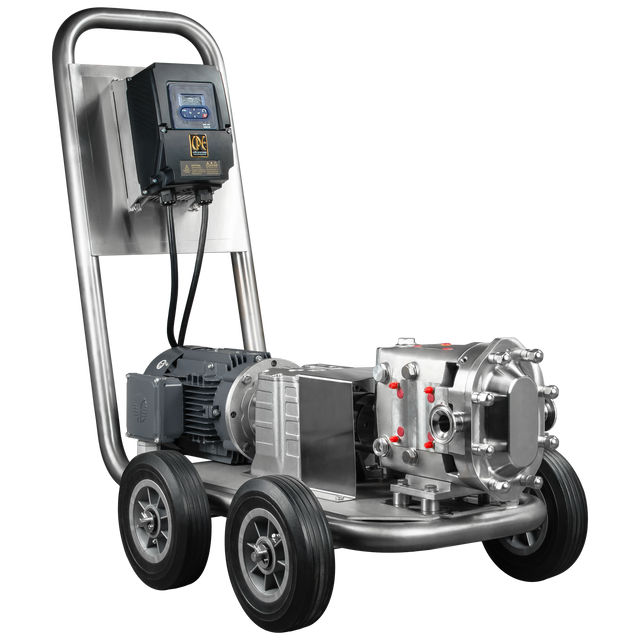

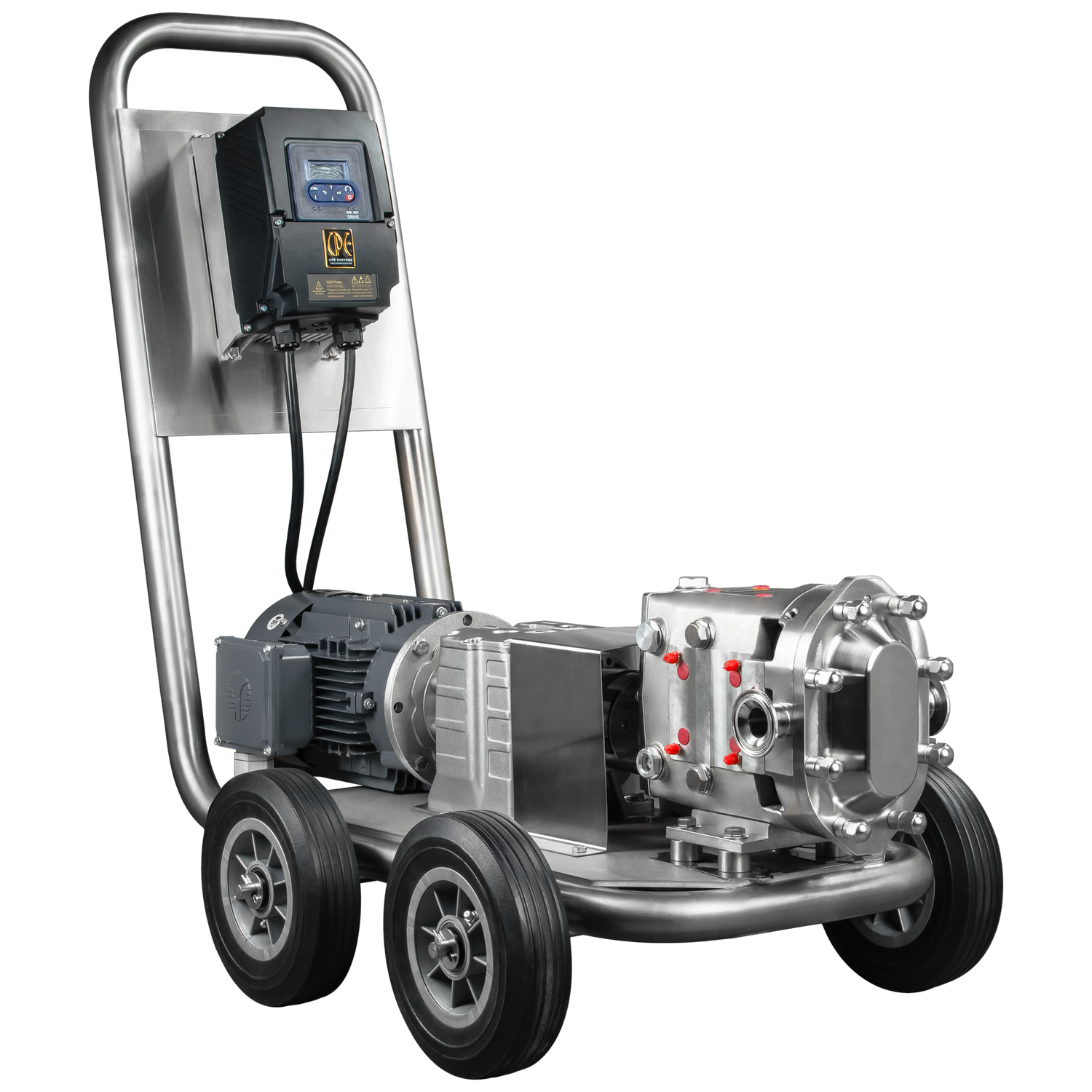

The CPEU1 Circumferential Piston Pump is a sanitary pump designed specifically for the food, beverage, pharmaceutical, and dairy industries. Because of the tight internal design, this pump can handle both high and low viscosity products. Helical timing gears, a stainless steel housing, solid 17-4 PH stainless steel shafts, and Alloy 88 rotors are all standard features on this pump. The CPEU1 has a helical inline gear motor and is mounted on a stainless steel cart with a NEMA 4X VFD. Interchangeable with the most popular brands in North America.
Features:
- 304 Stainless Steel Gearbox STANDARD

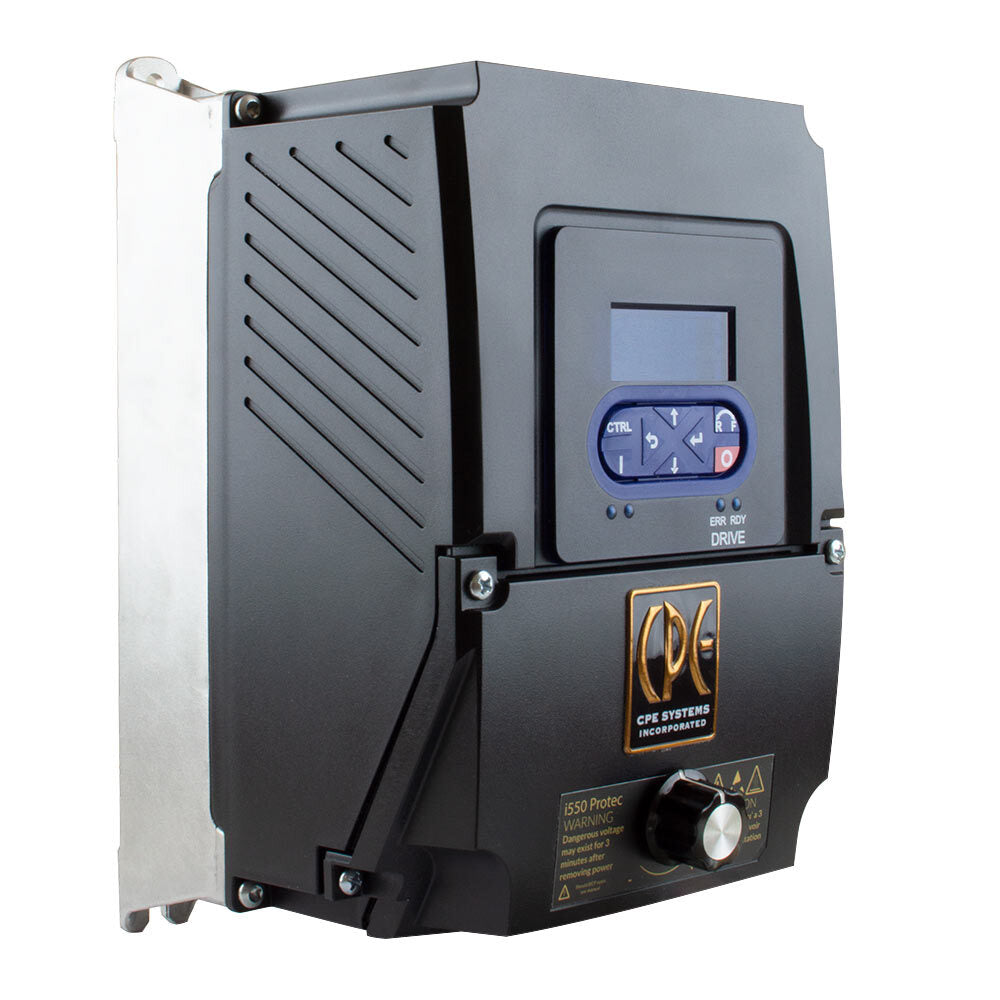

- NEMA 4X VFD with a potentiometer
- Reversible Flow
- Universal (4-way) mounting position including vertical porting
- 3A Certified
- Self-cleaning gaskets
- Interchangeable and compatible with other major series in the market
- Easy disassembly for CIP cleaning
- Sealed stainless steel cleanout plugs
- Grease fitting on both sides of the pump head
- Threaded oil plugs with sight glasses
- High torque single alloy shafts
Specifications
- O-Ring Seal Material: 17-4 SS sleeve w. Buna elastomers
- Mechanical Seal Material: Silicon Carbide/ Carbon w. Buna elastomers
- Temperature Range: -40 °F to 300°F (-40°C to 149°C)
- Pressure capability: up to 200 psi
- SMS Seal
Seal Types
SMS Seal: Single mechanical seal
DMS Seal: Double mechanical seal with flush
| Model | Port Size | Nominal Capacity | Maximum Differential Pressure | Displacement | Maximum Speed |
| CPEU1 6 | 1.0" | 7 gpm | 200 psi | 0.0082 gal/rev | 800 rpm |
| CPEU1 15 | 1.5" | 10 gpm | 200 psi | 0.0142 gal/rev | 700 rpm |
| CPEU1 18 | 1.5" | 17 gpm | 200 psi | 0.029 gal/rev | 600 rpm |
| CPEU1 30 | 1.5" | 36 gpm | 200 psi | 0.060 gal/rev | 600 rpm |
| CPEU1 34 | 2.0" |
24 gpm |
200 psi | 0.060 gal/rev | 400 rpm |
| CPEU1 40 | 2.0" | 46 gpm | 150 psi | 0.076 gal/rev | 600 rpm |
| CPEU1 60 | 2.5" | 92 gpm |
200 psi |
0.153 gal/rev | 600 rpm |
| CPEU1 64 | 2.5" | 61 gpm | 200 psi | 0.153 gal/rev | 400 rpm |
| CPEU1 130 | 3.0" | 152 gpm | 200 psi | 0.254 gal/rev | 600 rpm |
