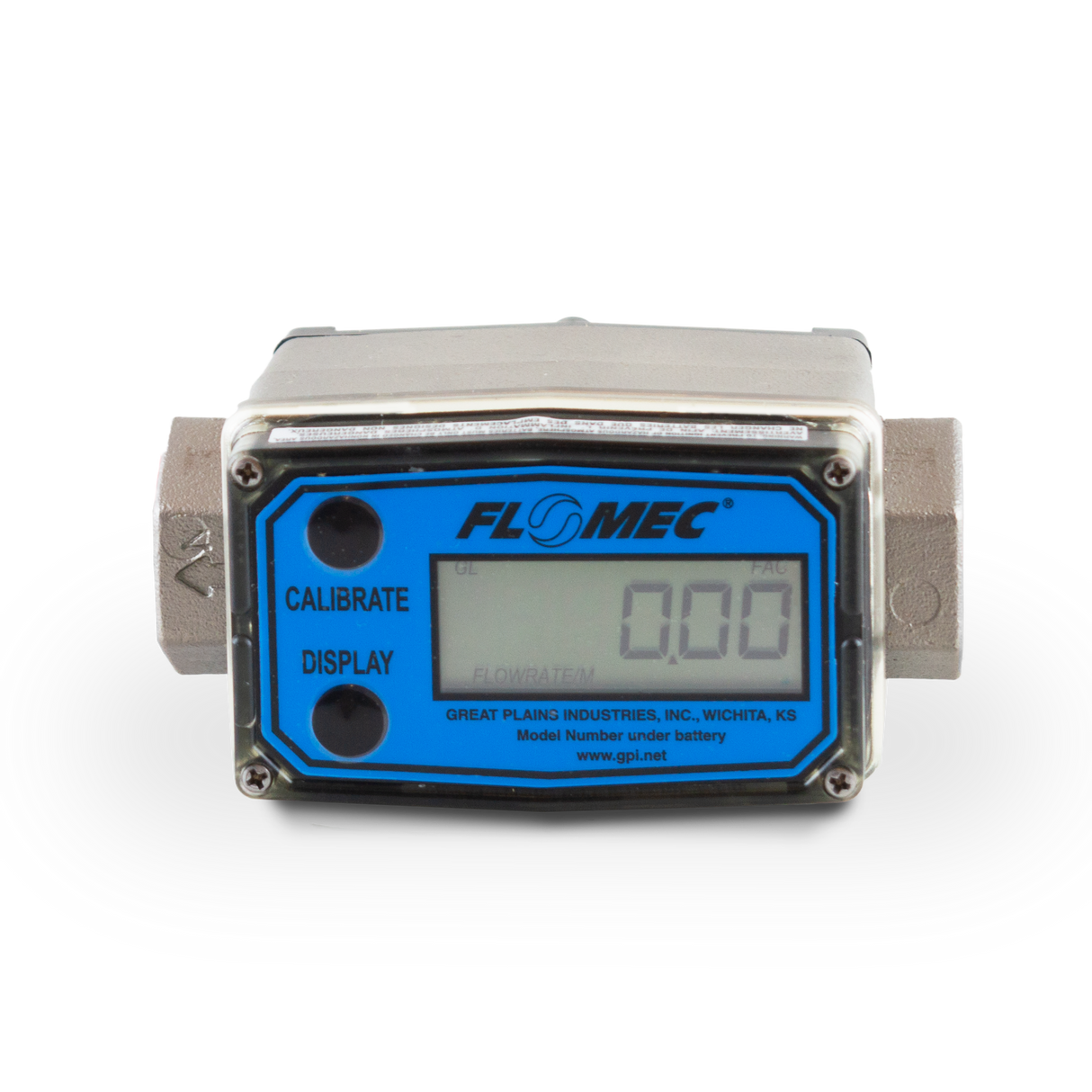

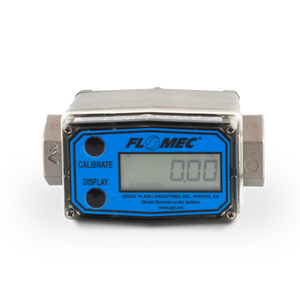

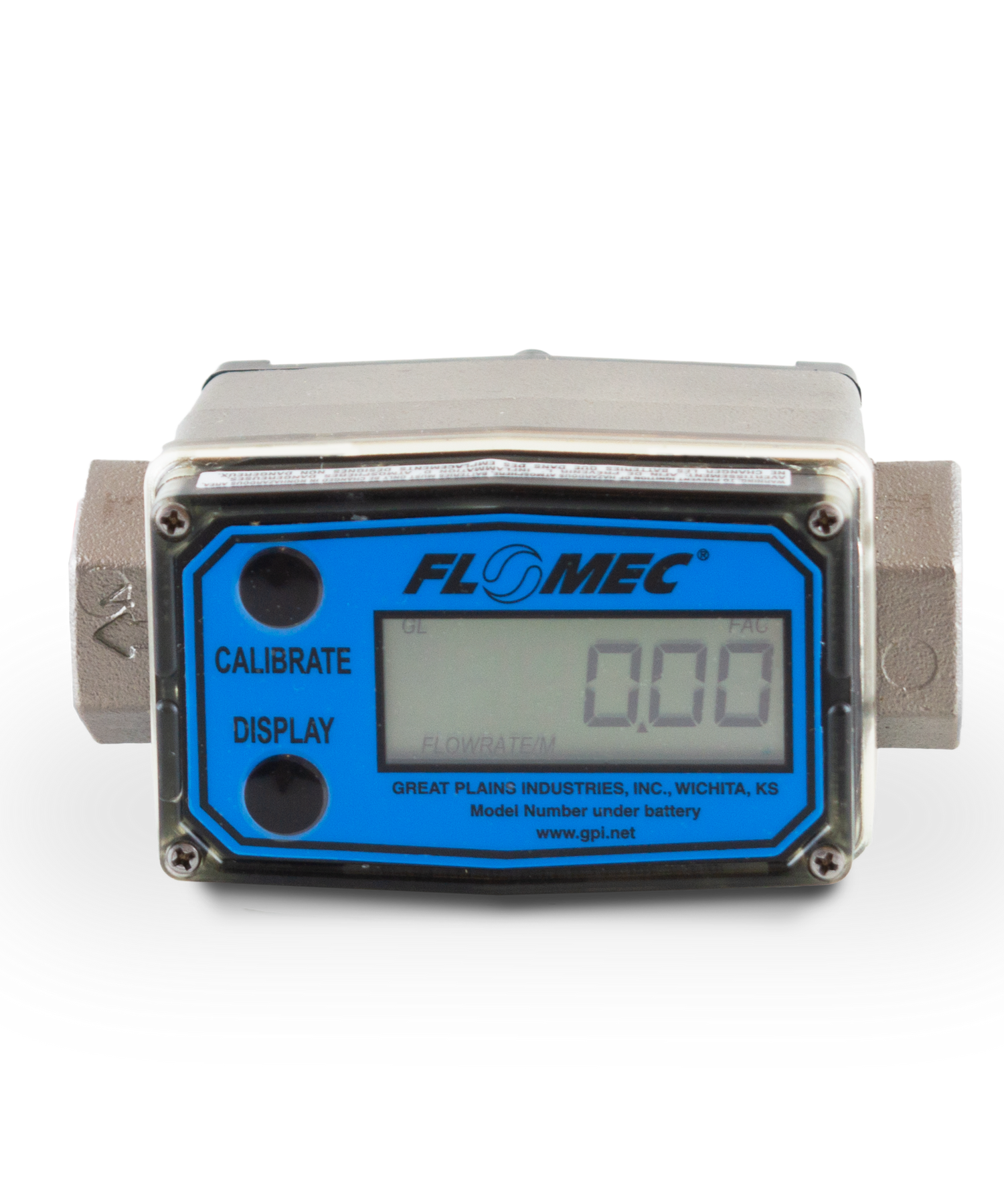

The FLOMEC G2 Series is a high-accuracy turbine flow meter made by GPI. Its modular design allows it to be paired with output modules, sensors, and remote transmitters. This meter features the new Q9 display; a battery-powered, LCD, high-visibility display. Known for its durability and ability to handle high-pressure and high-temperature applications, the G2 meter is a highly accurate reliable option for food, beverage, and chemical applications.
Various accessories, including a high-temperature riser, a protection case, an output module, and a 4-20mA module, can be used with the G2 meter to customize it to specific applications and needs.
Technical Specifications:
- Wetted Materials:
- Housing: 316L Stainless Steel
- Bearings: 96% Alumina Oxide Ceramic
- Shaft: Tungsten Carbide
- Rotor: PVDF
- Rings: 316L Stainless Steel

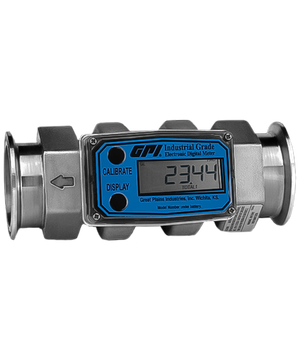

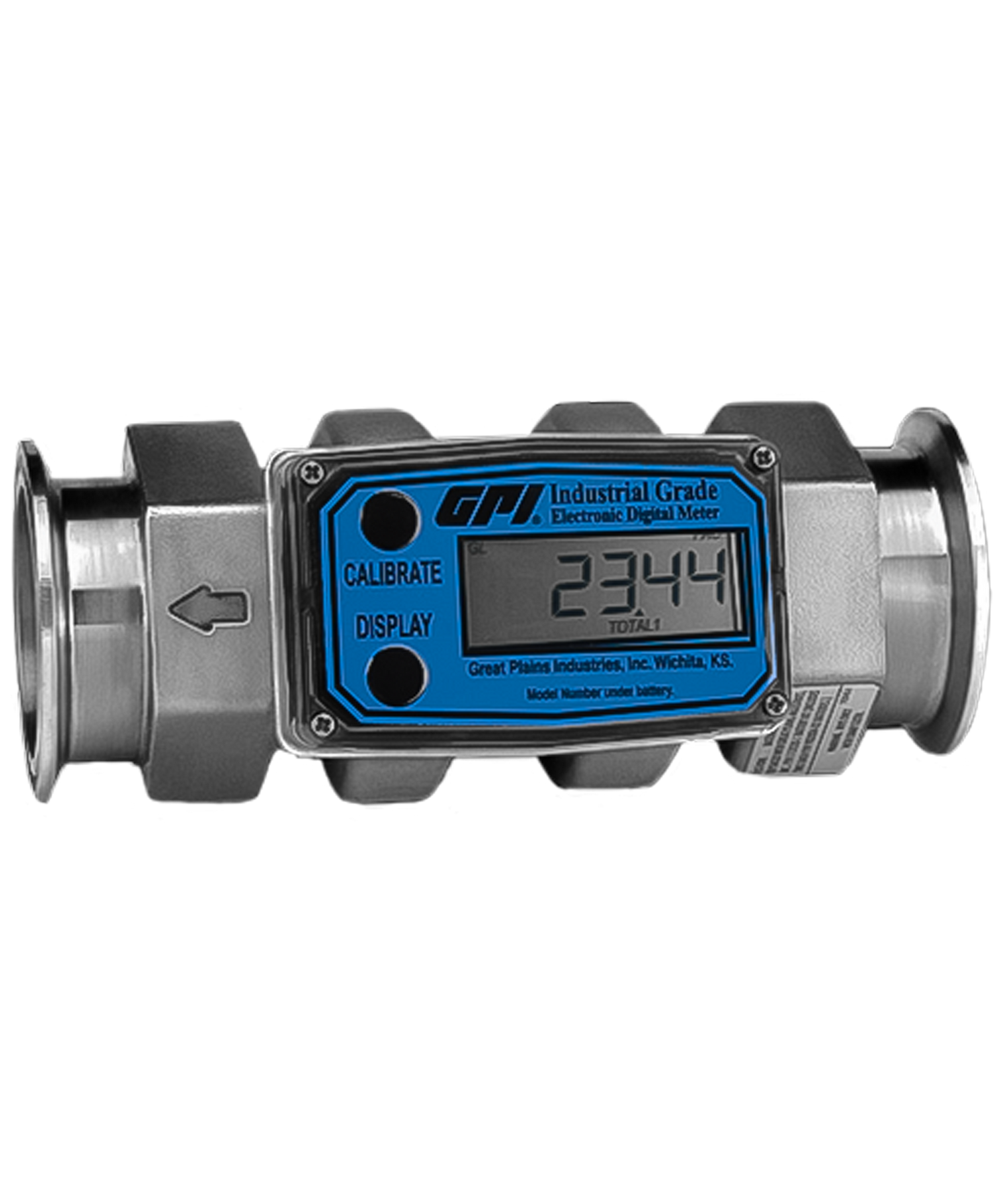

- Connections: Tri-Clamp or NPT
- Power: AAA Alkaline Batteries (2-year battery-life)
- Operating Temperature (Standard): 0° F to 129° F (-18° C to 54° C)
- Operating Temperature (High Temperature Model): 0° F to 185° F (-18° C to 85° C)
- Pressure Rating: 1,500 PSI
Features and Benefits:
- Modular design allows for use with output modules, sensors, and remote transmitters
- 2 Totals (Batch Total=Resettable, Total=Non-Resettable)
- The rate of flow measure is factory-calibrated in gallons and litres
- 11 Preprogrammed engineering units, and space for one custom option
- Calibration: Field calibratable; allows user calibration; includes non-volatile totals
- High accuracy meter
- Internal parts are simple to replace for easy maintenance
- Accessories easily upgrade meter

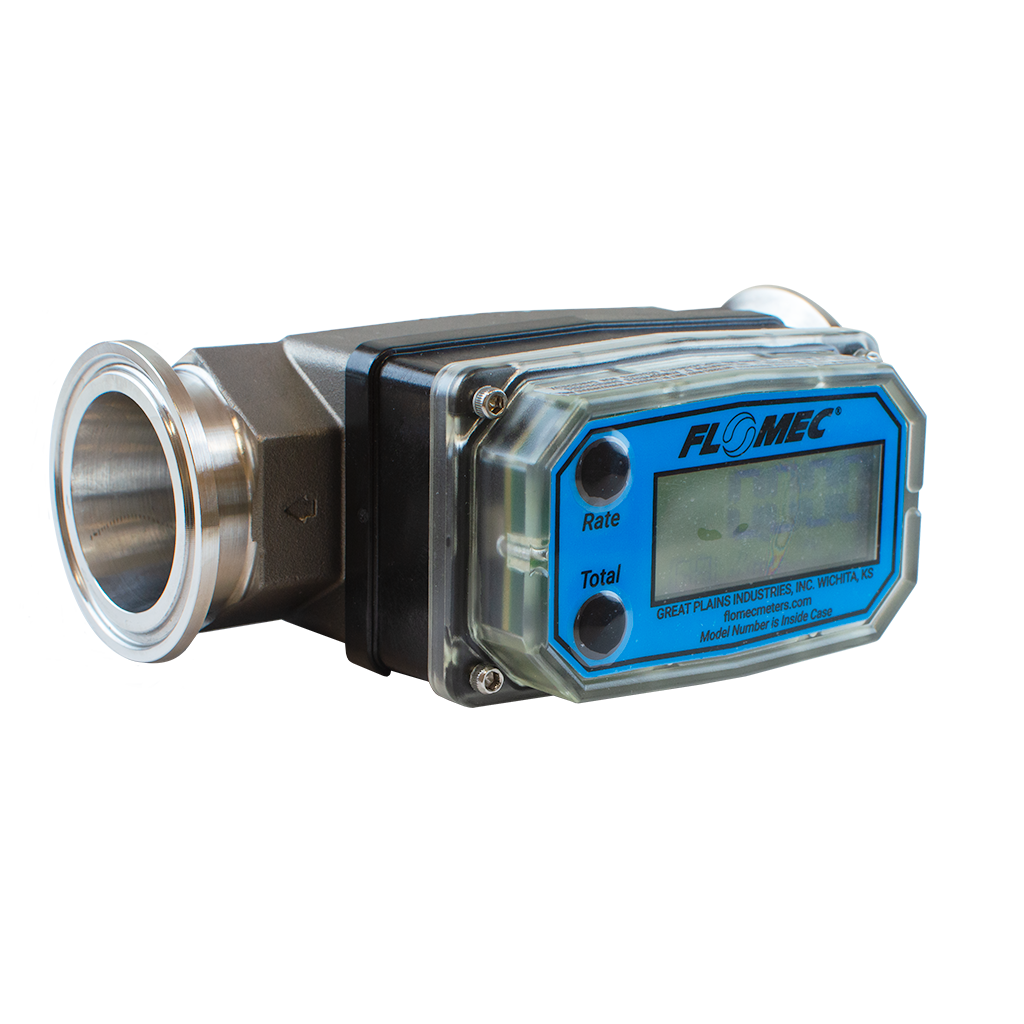

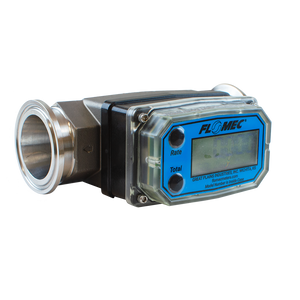

- Optional high-temperature riser allows for temperatures up to 85 °C (185°F)
- For fluids under 100 cP
G2 Turbine Flow Meter Specifications
| Pipe Size | Flow Range | Accuracy (% of Reading) | Frequency Range |
| 1/2" | 1-10 GPM (3.8-38 LPM) | +/- 1.5% | 42-420 Hz @ 1-10 GPM (3.8-38 L/min) |
| 3/4" | 2-20 GPM (7.6-76 LPM) | +/- 1% | 37-370 Hz @ 2-20 GPM (7.6-76 L/min) |
| 1" | 5-50 GPM (19-190 LPM) | +/- 1% | 47-470 Hz @ 5-50 GPM (19-190 L/min) |
| 1-1/2" | 10-100 GPM (38-380 LPM) | +/- 0.75% | 36-360 Hz @ 10-100 GPM (38-380 L/min) |
| 2" | 20-200 GPM (76-760 LPM) | +/- 0.75% | 33-330 Hz @ 20-200 GPM (76-760 L/min) |
G2 Turbine Meter Measurements
| Pipe Size | Height | Width | Length | Tri-Clamp Size |
| 1/2" | 1.4" | 2.0" | 4.2" | 3/4" |
| 3/4" | 1.6" | 2.0" | 4.3" | 1" |
| 1" | 1.9" | 2.0" | 4.5" | 1-1/2" |
| 1-1/2" | 2.6" | 2.7" | 5.3" | 2" |
| 2" | 3.1" | 3.4" | 6.3" | 2-1/2" |
