Hyginox SEN 15 Internally Sealed Portable Pump
The INOXPA HYGINOX SEN-15 pump is perfect for new microbreweries. A sanitary centrifugal pump, the Hyginox series comes with a long-lasting internal mechanical seal to help reduce product build-up and leaking and improve reliability. It’s a pump that just keeps going without hassle - exactly what you need when starting a brewery.

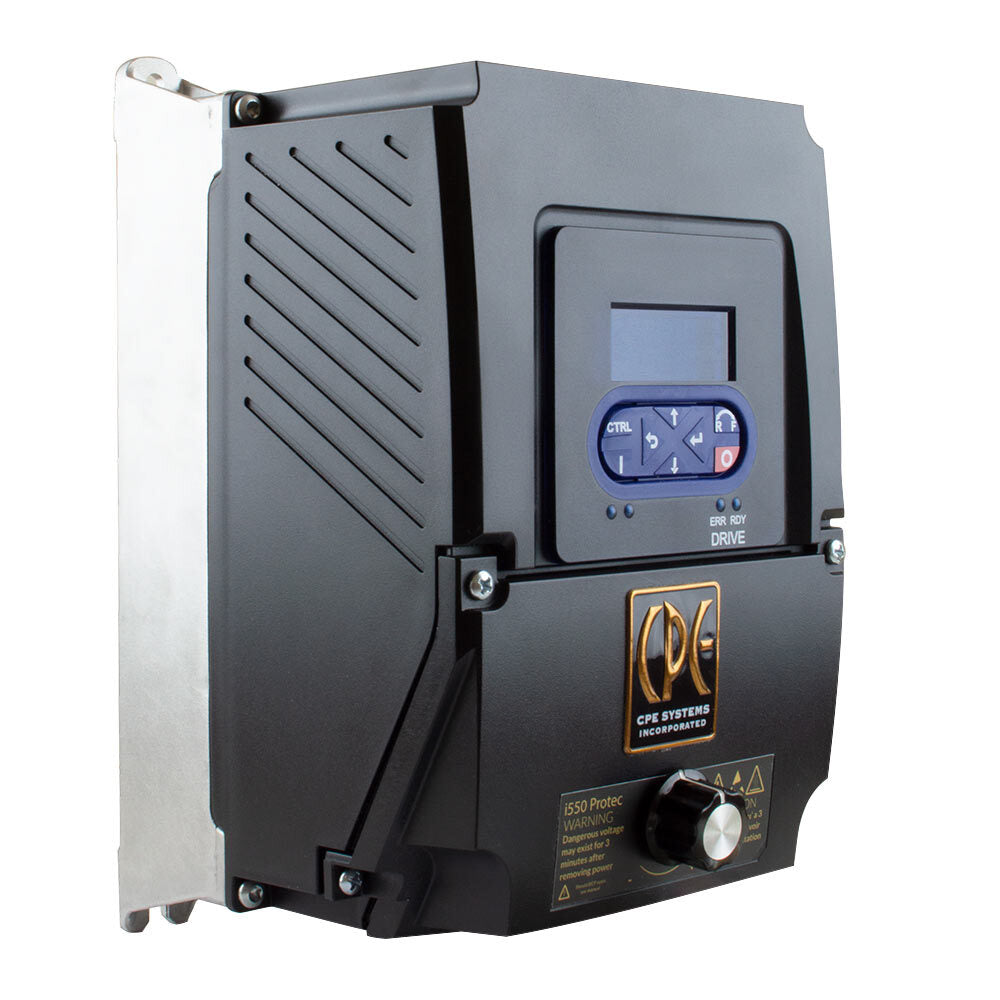

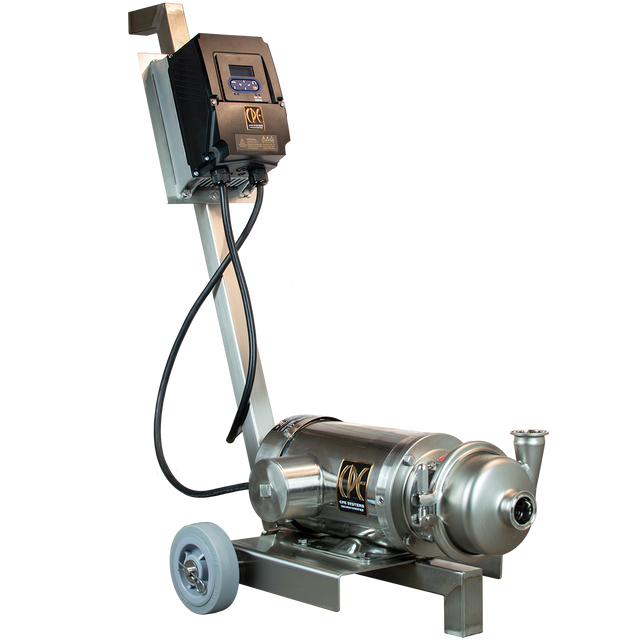

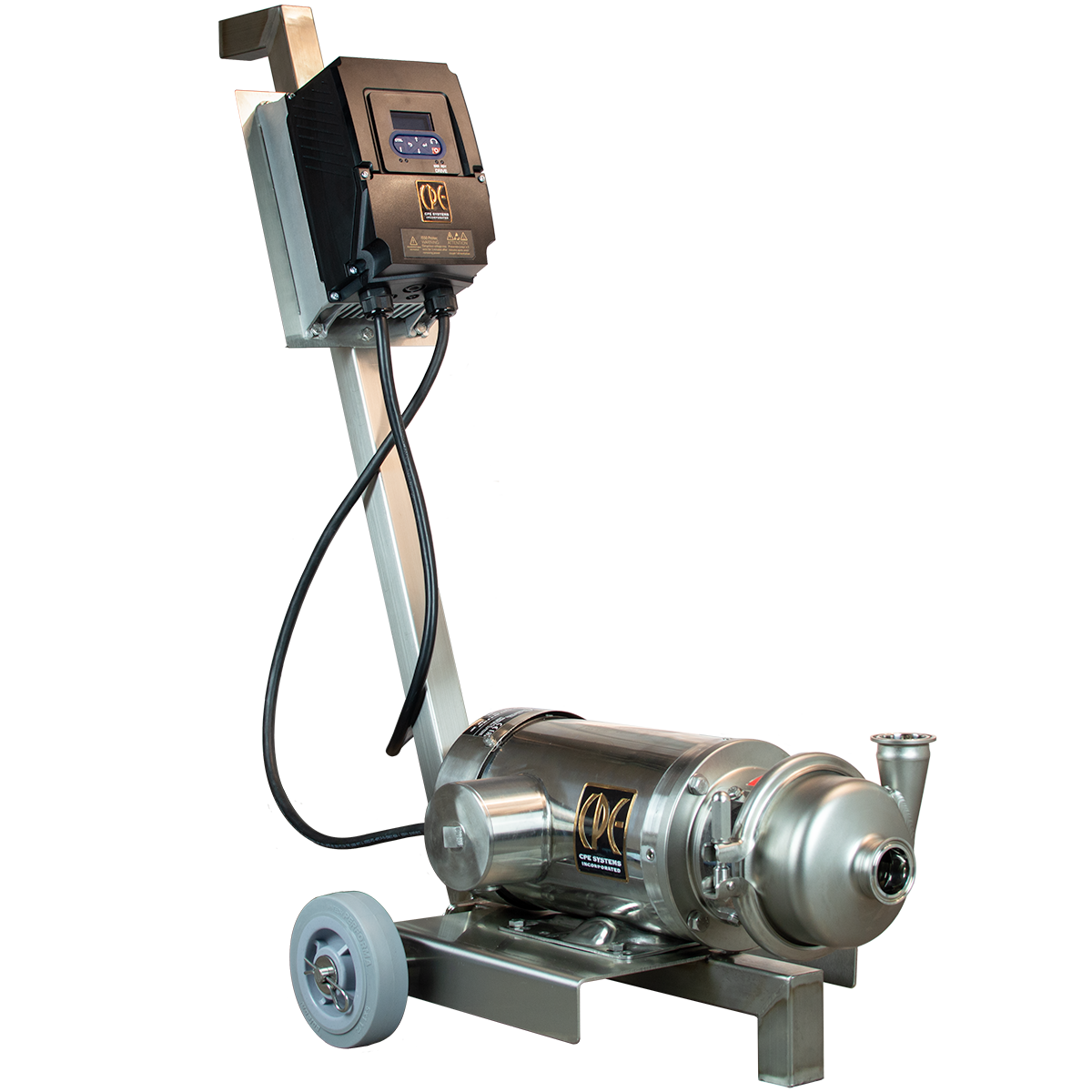

The SEN-15 assembly comes with our Canadian-made stainless steel cart and NEMA 4X digital VFDs. Our carts are custom designed and built in Canada from sanitary stainless steel with non-marring heavy-duty wheels. Our VFD’s provide excellent speed regulation from zero to full load over a wide frequency range, auto energy savings at light loads, and smooth motor torque operation.
All pumps come standard with Tri-clamp connections, but we can supply other connection types by special order.
| Horsepower | Max Pressure (ft. head) | Max Flow (gpm) |
| 1 | 55 | 55 |
| 1 1/2 | 65 | 55 |
| 2 | 70 | 65 |
| 3 | 80 | 82.5 |
INOXPA Hyginox SEN 15 Specs:
Inlets: 1 1/2" Clamp
Outlets: 1 1/2" Clamp
Seal: Single Mechanical Internal seal Carbon/Silicon Carbide
Nominal pressure: 40 PSI
Maximum flow: 75 US GPM
Maximum differential head: 95 m 310 ft
Maximum speed: 3500 rpm
