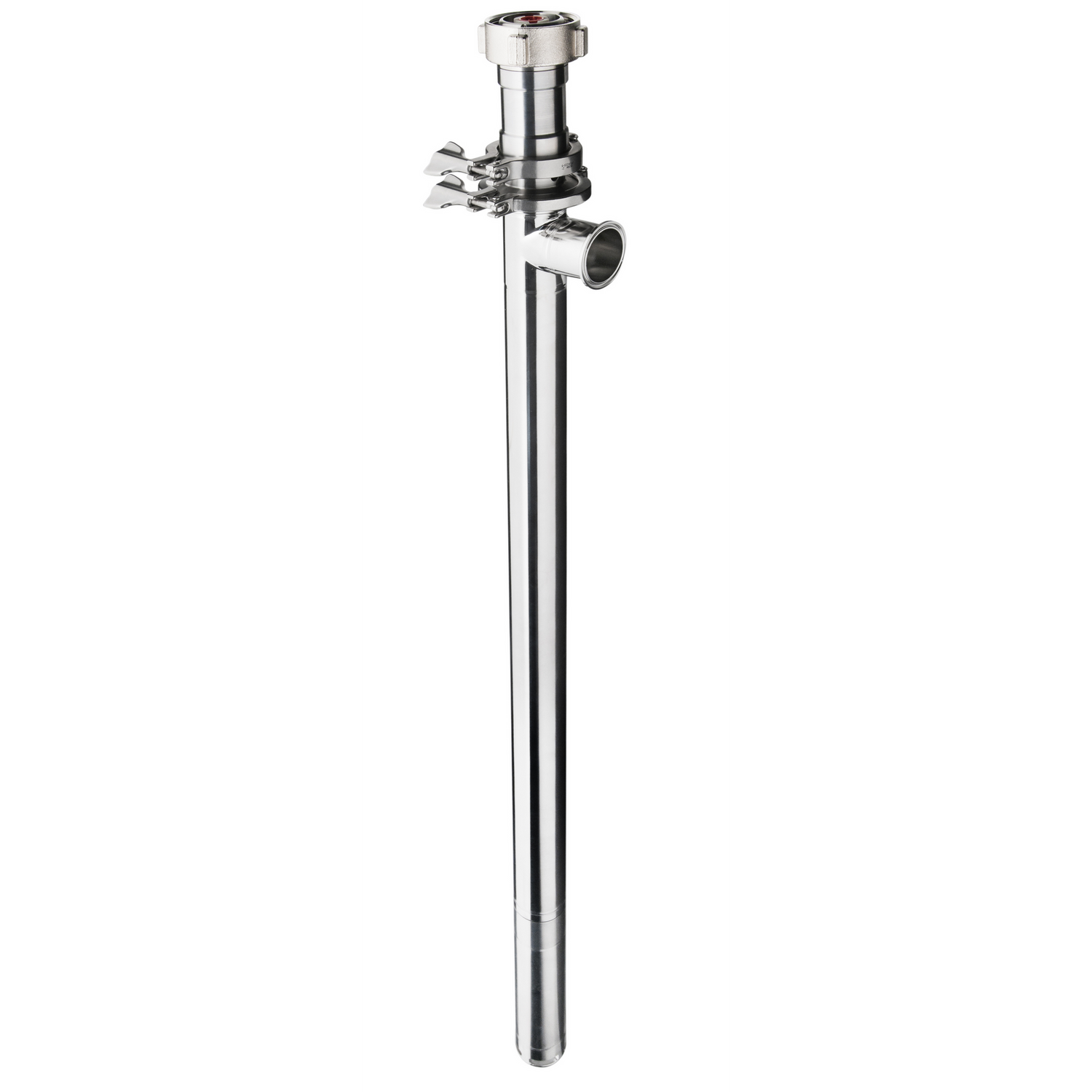

The VISCOPOWER F570 is a progressive cavity barrel pump with a geardrive made by FLUX. This pump is designed for low-shear, smooth pumping out of drums, totes, and IBCs. It is an easy-to-clean and maintain, efficient, versatile pump that can handle a range of viscosities. This model is for industrial applications and is explosion-proof with ATEX certification. With three different explosion-proof motor options, this pump can be fine-tuned for a variety of industrial applications. If you require any other materials, styles, or need assistance picking the perfect pump, please contact our sales team.
F570 Construction:
- Seal: Open Mechanical Seal
- Pump Type: Progressive cavity w. 16:1 Gearbox
- Construction Material: Stainless Steel
- Seal Material: SiC
- Elastomers Material: FKM
- Pump Shaft: Torsion Shaft
- Rotor: R52 (R17 an R33 available upon request)
- Stator Material: PTFE (NBR and FKM available on special order)
- Immersion Depth: 27”, 39”, 47”, 60”
- Connections: 2” Tri-Clamp (Adapters available upon request)
- Certifications: ATEX
F570 Technical Data:
- Temperature: Up to 248°F (120°C)
- Viscosity: 1 - 80,000 cPs
- Flow rate: max 21.9 GPM (83 l/min)
F570 Compatible Motors:

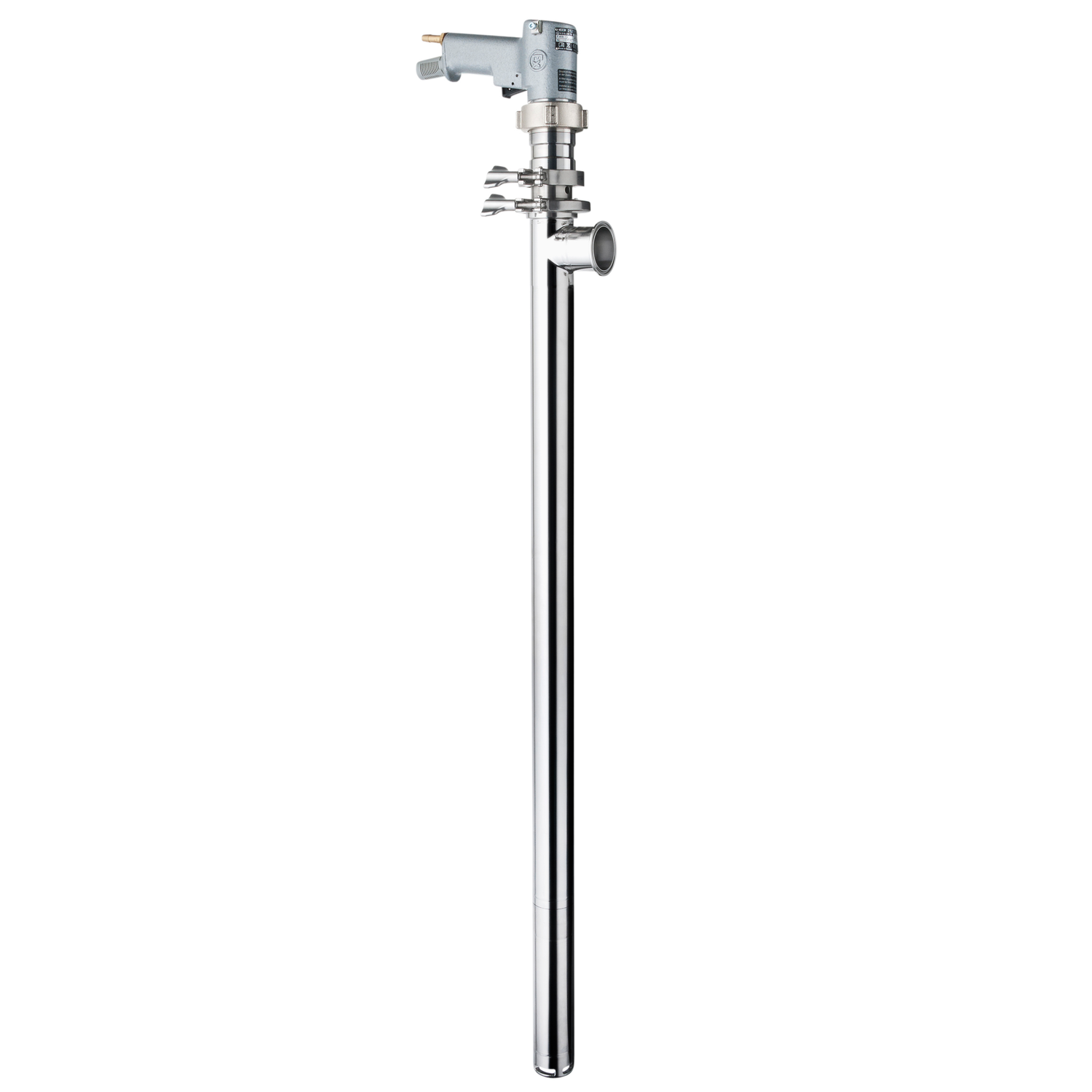

F416 Air Motor
The F416 is a lightweight and powerful explosion-proof air motor. This is a variable-speed motor, which is achieved by adjusting the input air operating pressure with a ball valve, needle valve, or a filter/regulator.
Technical Data:
- Certifications: ATEX Ex II G IIC T6
- Inlet Air Pressure: max 87 PSIG
- Air Consumption: max 17 cfm
- Capacity: 470 W
- Ventilation: External
- Variable Speed: Optional
- Weight: 2 - 3 lbs (0.9 - 1.4 kg)
There are three options for this motor:
- With trigger (A trigger operation, with no ball valve)
- With ball valve (A ball valve but no trigger)
- Without valve or trigger (No trigger or ball valve)

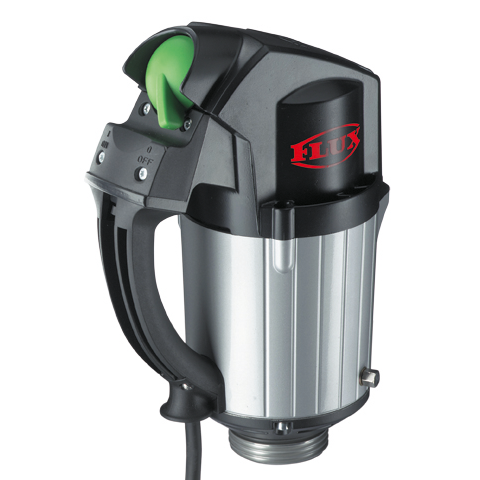

F460 ATEX Electric Motor
The F460 is an explosion-proof electric motor built for durability. This motor is designed to last, with an aluminum housing, corrosion-resistant painting, and optimized airflow. This motor is also available in variable speed, one of the only variable speed electric motors on the market.
Technical Data:
- Enclosure: IP 55
- Certifications: ATEX Ex II 2 G Ex d e IIC T6
- Ventilation: External
- Voltage: 120 volts or 230 volts (variable speed is only available in 230 V)
- Frequency: 50 - 60 Hz
- Capacity: 460/700 W
- Weight: 11-13 lbs
