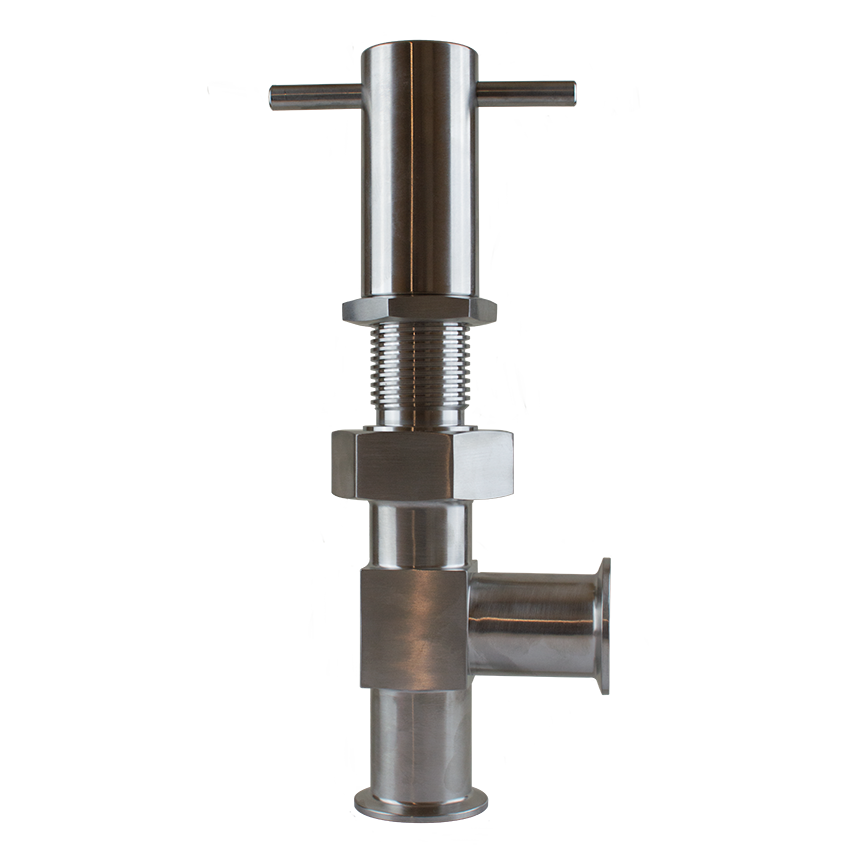

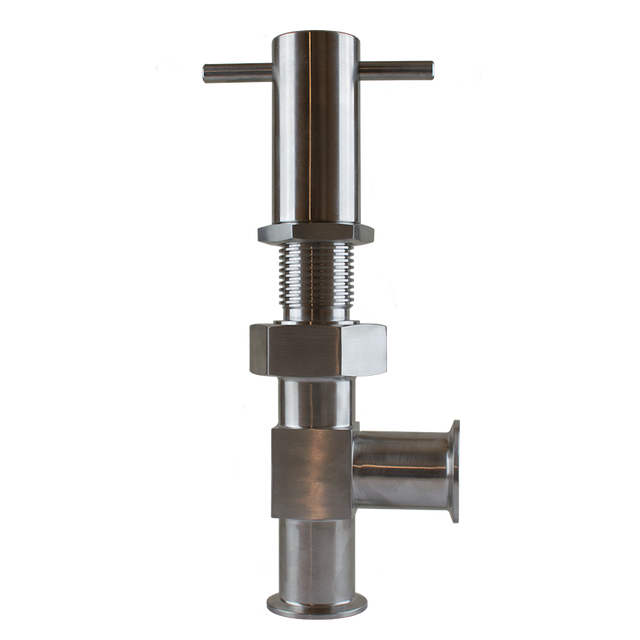

D60RTHMP Valve

$1,106.33

SKU: VA/D60RTHMP-1 1/2"-L

The D60RTHMP is a sanitary manual adjusted valve with a spring-loaded relief valve. This relief valve is designed for sanitary pressure relief for pumps and piping systems.

The metal stem plug of the relief valve is held in the closed position by manually adjusted spring tension. As the pipeline pressure increases beyond the springs relief set point, the stem plug is forced open allowing pressure to be relieved through the discharge port. As the pressure lowers below the spring setpoint, the plug will return to the closed position. The compression valve is operated by means of a ‘tee’ handle turning mechanism. This allows the valve to gradually open and close.

This valve has an "L" body, but a "Y" body is available upon request.

Features:

  • 316L Stainless Steel Wetted Parts
  • Seat Material: 316L Stainless Steel
  • Tri-Clamp Connections
  • Max Product Pressure: 85 PSI
  • Min Product Pressure: 5 PSI
  • Max Temperature: 180 F

Technical Drawings
